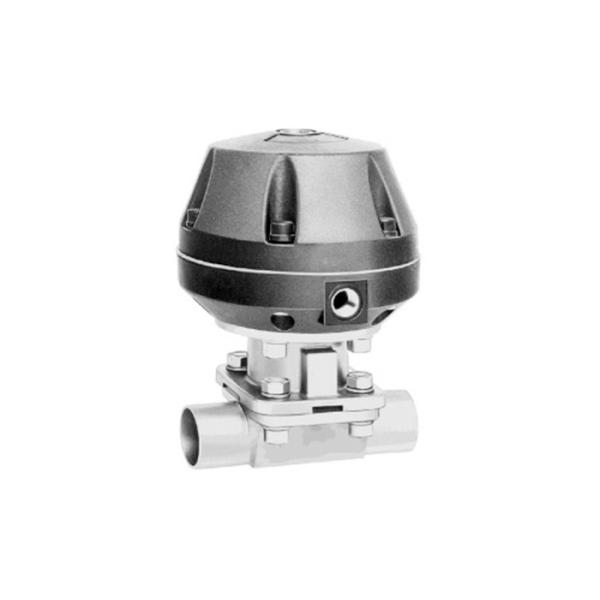

High Pressure Diaphragm Valve , Stainless Steel Pneumatic Actuator Diaphragm Valve
High Pressure Diaphragm Valve , Stainless Steel Pneumatic Actuator Diaphragm Valve
High Pressure Diaphragm Valve , Stainless Steel Pneumatic Actuator Diaphragm Valve
High Pressure Diaphragm Valve , Stainless Steel Pneumatic Actuator Diaphragm Valve
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-SV
Certification :
PED,ISO
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
304, 316L, 1.4301, 1.4404 etc.
Standard :
DIN, SMS, ISO, 3A, BPE, CMP, DS, AS1528, BS4825, I-line, RJT, IDF etc.
Size :
1/2”~4” DN10~DN100
Sealing :
EPDM
Connection :
Welding, Threaded, Clamped, etc.
Type :
Diaphragm Valves
Description

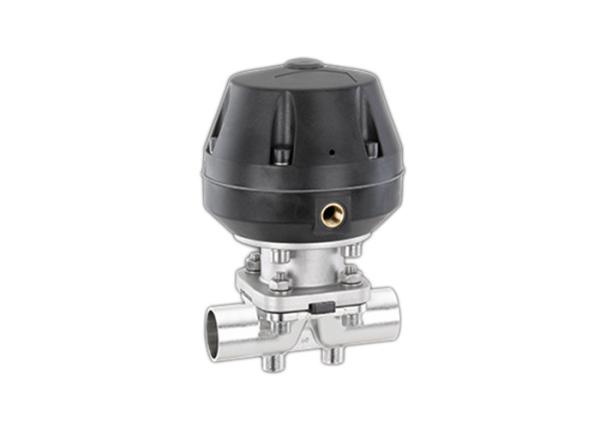

Pneumatic Actuated Diaphragm Valve

Pneumatic Actuated Diaphragm Valve is air operated diaphragm valve, includes stainless steel pneumatic actuator and plastic actuator which will supply on client’s request. Variety connections are available for our air actuated diaphragm valves, such as tri-clamped, butt-welded, male threaded to DIN, SMS, ISO, IDF, RTJ etc.

Wellgreen diaphragm valve are made in forged stainless steel T316L or 1.4404 from size 1″ to 3″, and mini-type diaphragm valve is from 1/4″ to 3/4″. Full line sanitary valves from Wellgreen to make you system solutions for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc, it is your idea source here.

Features

  • Forged / investment casted stainless steel T316L, 1.4404 or specified.
  • Assemble different actuators can meet the higher pressure rating.
  • Pneumatic actuator suitable for body: straight, tee, multichannel body, welding combination valve, tank bottom valve
  • Pneumatic can be installed with position sensor.
  • Assemble different actuators can meet the higher pressure rating.
  • Multi connection: welding, clamp, thread.
  • Full size from 1/4″ to 3″ (1/4″ ~ 3/4″ is mini type).

Technical Parameter

  • Max temperature: – 30 to 150 °C(depending on seal material)(stainless steel actuator)
  • Max temperature: – 30 to 130 °C (depending on seal material)(plastic actuator)
  • Max pressure: one way (DELTA P = 100%)
    • Normally close EPDM 8 bar, PTFE 6 bar (option)
    • Normally close EPDM 6 bar, PTFE 4.5 bar (standard)
    • and double action EPDM 8 bar, PTFE 6 bar

Application

Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharm etc.

High Pressure Diaphragm Valve , Stainless Steel Pneumatic Actuator Diaphragm Valve

For more information, please contact us.
