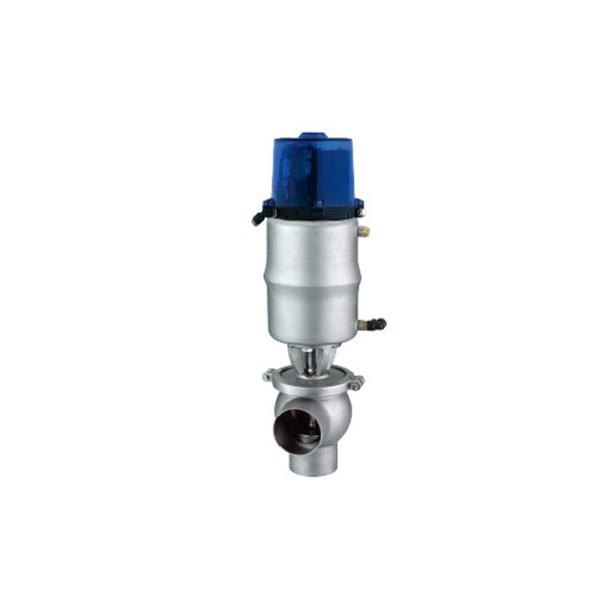

EPDM / PTFE Diverter Stainless Steel Sanitary Valves 304 316L 3A Standard 360° Adjustable
EPDM / PTFE Diverter Stainless Steel Sanitary Valves 304 316L 3A Standard 360° Adjustable
EPDM / PTFE Diverter Stainless Steel Sanitary Valves 304 316L 3A Standard 360° Adjustable
EPDM / PTFE Diverter Stainless Steel Sanitary Valves 304 316L 3A Standard 360° Adjustable
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-SV
Certification :
PED,ISO
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
304, 316L, 1.4301, 1.4404 etc.
Standard :
DIN, SMS, ISO, 3A, BPE, CMP, DS, AS1528, BS4825, I-line, RJT, IDF etc.
Size :
DN25~DN100
Sealing :
EPDM
Connection :
Welding, Threaded, Clamped, etc.
Type :
Divert Valves
Description

304 316L EPDM / PTFE Sanitary Valves - Stainless Steel Diverter Valve

Sanitary diverter valve is most creative to have single or double seat which enables the pipeline flexible with even five ways at the most. Being manual or automatic, sanitary diverter seat valve brings safeness, cleanness, and long life. We provides the complete solutions for sanitary valves, it is your reliable resource for application of Food, Brewery, Beverage, Biopharm etc.

Design:

  1. Compact and simple design.

  2. Standard diverter valve is Normally Closed type (NC).

  3. To change the piston of pneumatic actuator, easy getting Normally Open type (NO).

  4. High purity hygienic design, conform to 3A standard.

  5. Open lantern to monitor the shaft sealing conditions.

  6. Easy assembly and disassembly of internal parts through clamp connection.

  7. 360° adjustable body.

  8. Standard weld connection.

Material:

Stainless Steel 304,316L or en.1.4301, 1.4404 forged.

Strength:

  • Material of stainless steel 316L and 1.4404 is from reputed mill to guarantee the chemical composition and mechanical properties. Material certificate will be submitted follow to orders.

  • Forged valve body ensure the leakage and visual well.

  • Superior facilities and good experiences for fabrication.

  • In ability to improve and develop new design.

  • Fast delivery is possible to meet your needs well in time.

  • Low cost from bulk production will reduce your budget and improve your business.

  • Small quantity available.

Application:

Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.

Technical Specifications & Options of Sanitary Diverter Valve

General Specifications of Sanitary Diverter Valve

Working Pressure

DN25 ~ DN65 / 1” ~4 ”

0~10 bar , 145Psi

DN80 ~ DN100 / 3” ~ 4”

0~10 bar, 145Psi

Working Temperature

Working Pressure

-10°C ~ +121°C(EPDM/PTFE)

Sterilization Temperature

140°C (Max. 20min)

Surface Finish

Internal Surface Finish

Ra?0.8?m

External Surface Finish

Ra?1.6?m

Connections

Connection Standards

DIN, SMS, 3A, IDF, RJT

Connection Methods

Weld, Thread and Clamp

Material

Metal Material

Product Wetted

304 (1.4301) or 316L (1.4404) forged

Other Parts

304 (1.4301)

EN 10204 3.1B certificate is available on request.

Seal Material

Standard

EPDM/PTFE

Options

FPM/PTFE

All seal materials comply with FDA 177.2600.

Options

Manual Handle

Handle Operated

Pneumatic Actuator

Double-acting pneumatic actuator, Double-block actuator

Other Option

Steam sterilization (if shaft need sterilizing), C-TOP control unit, External position sensor etc.

*For more information of sanitary diverter valve, please contact us.
