Tri Clamp Pipe Cross Stainless Steel Sanitary Pipe Fittings Dull Polished Surface
Tri Clamp Pipe Cross Stainless Steel Sanitary Pipe Fittings Dull Polished Surface
Tri Clamp Pipe Cross Stainless Steel Sanitary Pipe Fittings Dull Polished Surface
Tri Clamp Pipe Cross Stainless Steel Sanitary Pipe Fittings Dull Polished Surface
Specifications
Product Name :
Clamp cross
Material :
Stianless Steel
End Connection :
Tri-Clamped
Size :
1/2″ to 12″
Surface :
Dull polished, Descaled finish, Mirror polished
Application :
Pharmaceutical, Fine chemical
Place of Origin :
China
Brand Name :
KAYSUNS
Certification :
PED,ISO
Model Number :
KS-Hygienic
MOQ :
500Kgs
Price :
USD
Packaging Details :
Plastic Bags / Plywood Boxes
Delivery Time :
30-45days
Supply Ability :
500Tons per Month
Description

1 Inch 304 316 Sanitary Pipe Fittings Stainless Steel Tri Clamp Pipe Cross

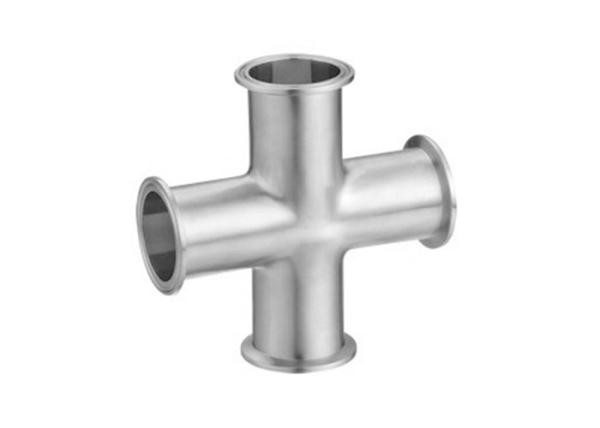

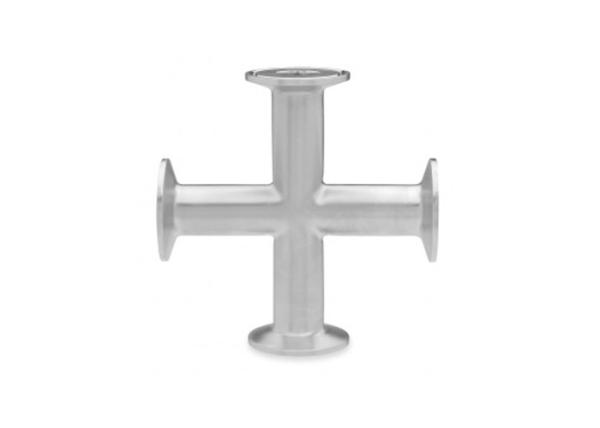

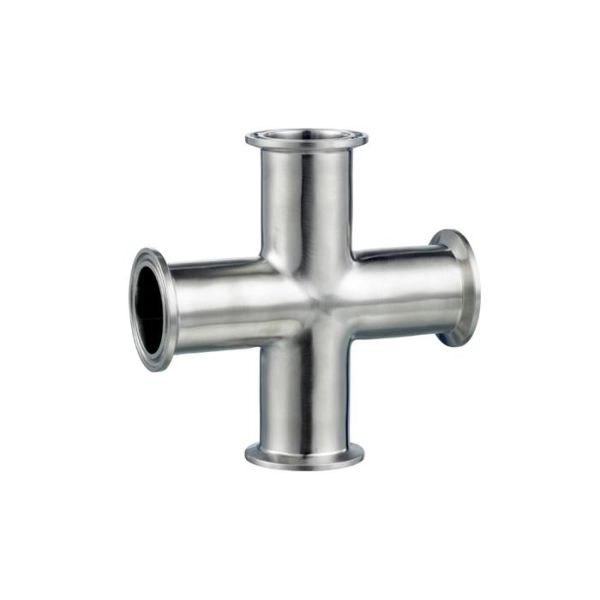

Sanitary clamp cross fittings are tri-clamp connected cross fittings, use of high purity sanitary gasket to seal. Sanitary clamp cross is a joint of piping which has four outlets to disperse the fluid in the process system. Kaysuns sanitary clamp cross are made in stainless steel 304 and 316 or specified grade, with the advantage of high purity surface to meet hygienic requirment. We offer sanitary fittings through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.

Sanitary Stainless Steel Hygienic Clamp Cross Fittings

Size

1/2″ thru 12″

Material

T304, T316L, EN 1.4301, EN 1.4404 etc.

Standard

3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.

End Connection

Tri-Clamped

Surface

Dull polished, Descaled finish, Mirror polished

Gasket

PTFE, EPDM, Buna-N, Silicone Gasket

Application

Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.

How to order

Products Name

Dimension

Material

Quantity

Standard

Polish requests

Tri Clamp Pipe Cross Stainless Steel Sanitary Pipe Fittings Dull Polished Surface

Dimension of Sanitary Clamp Cross – DIN

Size

D

L

DN10

34

44

DN15

34

53

DN20

34

58

DN25

50.5

71.5

DN32

50.5

76.5

DN40

50.5

81.5

DN50

64

91.5

DN65

91

108

DN80

106

118

DN100

119

128

DN125

144.5

225

DN150

167

263

*All dimensions are in mm except specified.

*For more information and specification about sanitary clamp fittings, please contact us.

Tri Clamp Pipe Cross Stainless Steel Sanitary Pipe Fittings Dull Polished Surface
