Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings
Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings
Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings
Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings
Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings
Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings
Specifications
Product Name :
Sanitary Clamps
Material :
Stianless Steel
End Connection :
Tri-Clamped
Size :
1/2″ to 12″
Application :
Beverage,Biotech ,Cosmetics
Place of Origin :
China
Brand Name :
KAYSUNS
Certification :
PED,ISO
Model Number :
KS-Hygienic
MOQ :
500Kgs
Price :
USD
Packaging Details :
Plastic Bags / Plywood Boxes
Delivery Time :
30-45days
Supply Ability :
500Tons per Month
Description

T304 , T316L Sanitary Stainless Steel Clamp Fittings Heavy Duty Pipe Clamps

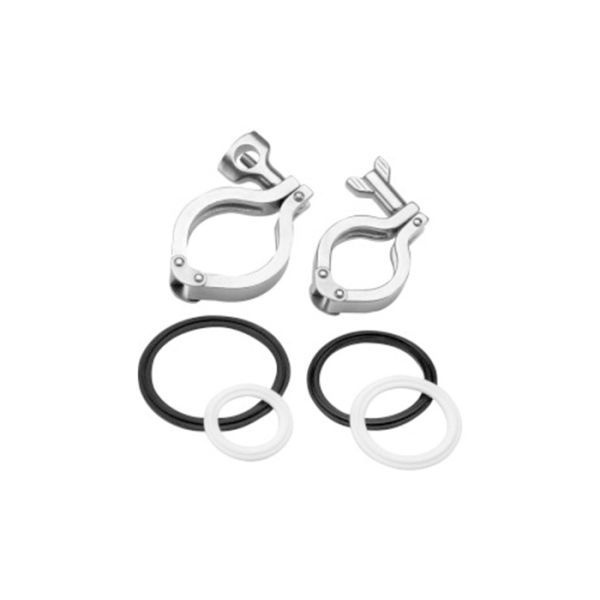

Sanitary clamps fittings is an important connection part of sanitary fittings. They are usually of material stainless steel 304. With a gasket, a clamp can match two ferrules tightly together without any leakage. Wellgreen sanitary supply mainly four kinds of clamps: heavy duty single pin clamp, double pins clamp, high pressure bolted clamps with brass nuts, and safety clamps which can meet customer’s different requests on them.

Sanitary Clamp – Stainless Steel Hygienic Fittings

PRODUCT

Sanitary Clamp – heavy duty single pin clamp, double pins clamp, high pressure bolted clamps with brass nuts, and safety clamps etc.

DIMENSION

1/2″ thru 12″

MATERIAL

T304, T316L, EN 1.4301, EN 1.4404 etc.

STANDARD

3A, DIN, SMS, BS, ISO, RTJ, IDF,INCH, Macon etc.

SEALING GASKET

Silicone, EPDM, PTFE, Buna-N etc.

TEMPERATURE

-30°C / -22°F up to +120°C/ +248°F

APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order

* Part Name
* Size
* Material
* Quantity
* Standard
* Type


Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings

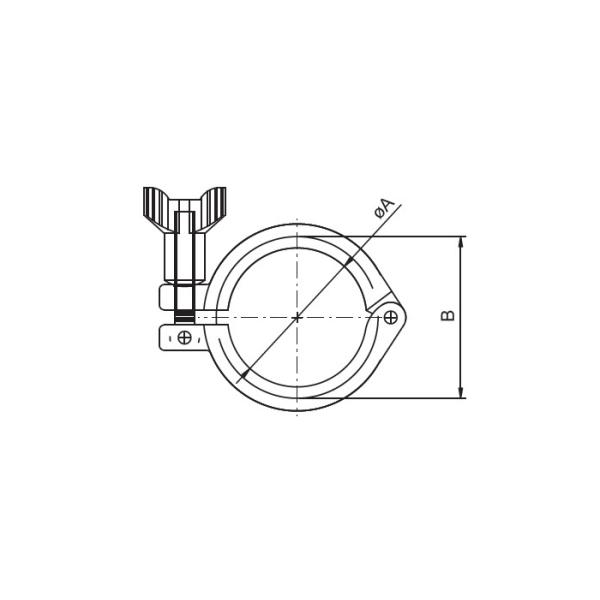

Dimension of Sanitary Clamp – Heavy Duty Single Pin Clamp – 13MHH – Sanitary Fitting

SIZE A B
A37 27.8 37
1.5” 44.4 53.6
2.0” 57.8 67
2.5” 71.4 80.6
3.0” 84 94.2
4.0” 110 122.2
6.0” 155.4 170.4
8.0” 205 220


Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings

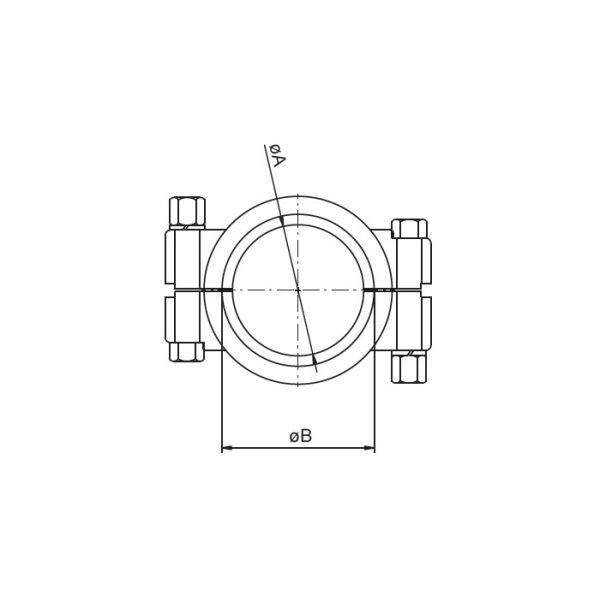

Dimension of Sanitary Clamp – High Pressure Clamp – 13MHP – Sanitary Fitting

SIZE A B
1/2”-3/4” 20 28
1.5” 43.3 52
2.0” 56.4 65.5
2.5” 69.5 79
3.0” 77.5 92.5
4.0” 109 120.5
6.0” 158 170
8.0” 222.5 237.5


Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings

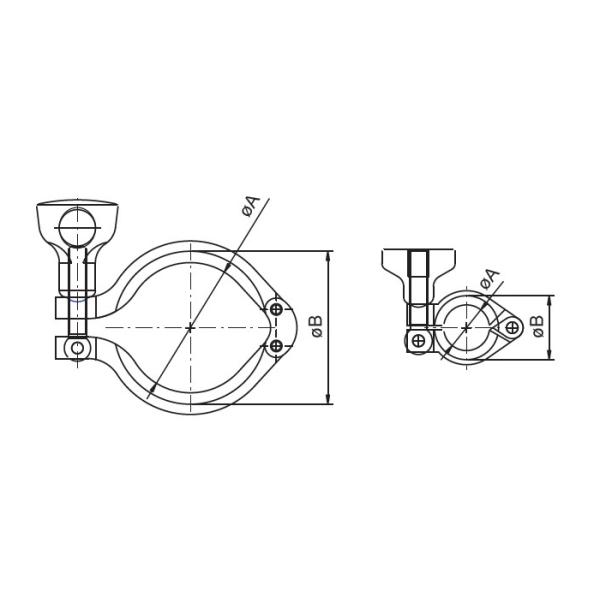

Dimension of Sanitary Clamp – Heavy Duty Double Pin Clamp – 13SF – Sanitary Fitting

SIZE A B
1/2”-3/4” 20 28
1.5” 45 58.6
2.0” 59 72
2.5” 67 84
3.0” 85 98
4.0” 114 127


Custom Stainless Steel Hygienic Fittings , Heavy Duty Stainless Tri Clamp Fittings

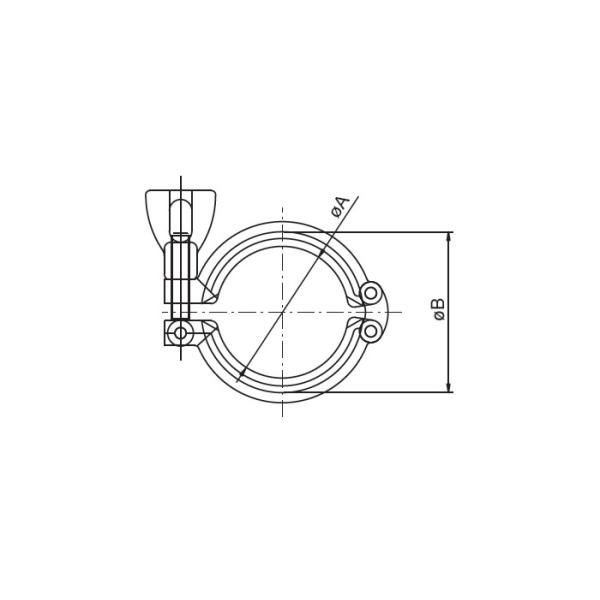

Dimension of Sanitary Clamp – Heavy Duty Double Pin Clamp – 13MHHM – Sanitary Fitting

SIZE A B
1/2”-3/4” 20 28
1.5” 43.6 53.6
2.0” 57 67
2.5” 70.6 80.6
3.0” 84 94
4.0” 112 122
6.0” 155 170
8.0” 205 220.8

*All dimension are in mm except specified.
*For more information and specification about tri-clamp fittings, please contact us.
