304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry
304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry
304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry
304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry
304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry
304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry
Specifications
Product Name :
Weld Tube Elbow
Material :
Stianless Steel
End Connection :
Weld End
Size :
1/2″ thru 12″
Surface :
Dull polished, Descaled finish, Mirror polished
Application :
Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic
Place of Origin :
China
Brand Name :
KAYSUNS
Certification :
PED,ISO
Model Number :
KS-Hygienic
MOQ :
500Kgs
Price :
USD
Packaging Details :
Plastic Bags / Plywood Boxes
Delivery Time :
30-45days
Supply Ability :
500Tons per Month
Description

Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow 304 / 304L

Sanitary Weld Elbow is in the process system to change the fluid direction, it is a very important sanitary fittings to the installation. Sanitary weld elbow is made in material stainless steel 304 and 316 or specified grade, with the advantage of high cleanliness surface and corrosion resistance. We offer sanitary welding fittings through 1/2” to 12” with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc, also we are ability to offer customized weld elbow and bend.

Sanitary and Hygienic Weld Elbow – Bend – 90° – 45°

Size

1/2″ thru 12″

Material

T304, T316L, EN 1.4301, EN 1.4404

Standard

3A, DIN, SMS, BS, ISO, ISO, IDF,INCH etc.

End Connection

Welding

Surface

Dull polished, Descaled finish, Mirror polished

Application

Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.

How to order

* Products Name*Size*Material*Quantity *Standard *Polish requests

304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry

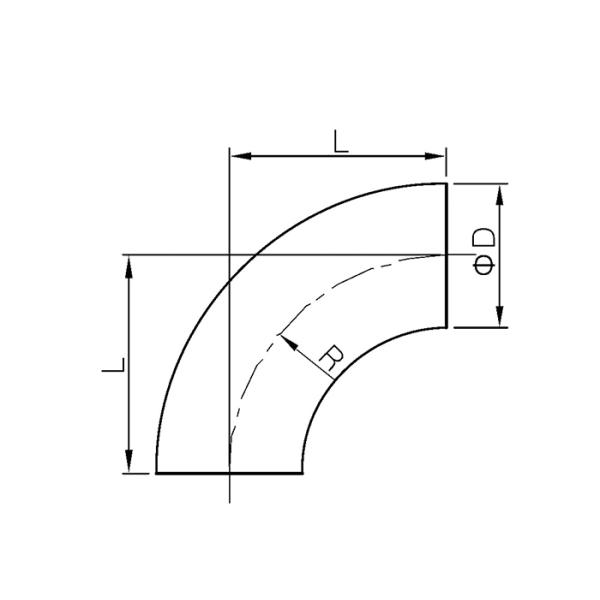

Dimension of Sanitary Weld Elbow 90°- 3A

Size

D

L

R

1/2″

12.7

19.1

19.1

3/4″

19.1

28.5

28.5

1″

25.4

38.1

38.1

11/4″

31.8

47.7

47.7

1 1/2″

38.1

57.2

57.2

2″

50.8

76.2

76.2

2 1/2″

63.5

95.3

95.3

3″

76.2

114.3

114.3

4″

101.6

152.4

152.4

6″

152.4

228.6

228.6

Dimension of Sanitary Weld Elbow 90°- DIN

Size

D

L

R

DN10

12

26

26

DN15

18

35

35

DN20

22

40

40

DN25

28

50

50

DN32

34

55

55

DN40

40

60

60

DN50

52

70

70

DN65

70

80

80

DN80

85

90

90

DN100

104

100

100

DN125

129

187

187

DN150

154

225

225

DN200

204

300

300

Dimension of Sanitary Weld Elbow 90°- ISO/IDF

Size

D

L

R

12.7

12.7

19.1

19.1

19

19.1

28.5

28.5

25

25.4

33.5

33.5

32

31.8

38

38

38

38.1

48.5

48.5

45

45

57.5

57.5

51

50.8

60.5

60.5

57

57

68

68

63

63.5

83.5

83.5

76

76.2

88.5

88.5

89

89

103.5

103.5

102

101.6

127

127

108

108

152

152

114.3

114.3

152

152

133

133

190

190

159

159

228.5

228.6

204

204

300

300

219

219

305

302

254

254

372

375

304

304

450

450

304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry

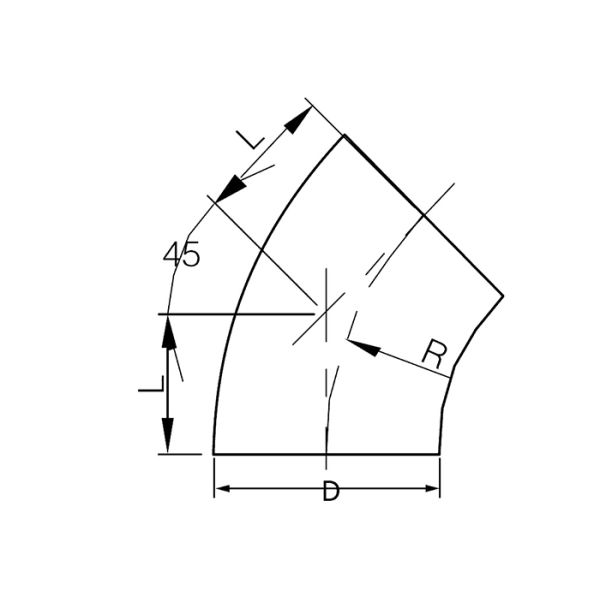

Dimension of Sanitary Weld Elbow – 45° – 3A

Size

D

L

R

1/2″

12.7

7.9

19.1

3/4″

19.1

11.8

28.5

1″

25.4

15.8

38.1

1 1/4″

31.8

69.7

47.7

1 1/2″

38.1

74.1

57.2

2″

50.8

103.2

76.2

2 1/2″

63.5

131.8

95.3

3″

76.2

160.3

114.3

4″

101.6

211.1

152.4

6″

152.4

280

228.6

304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry

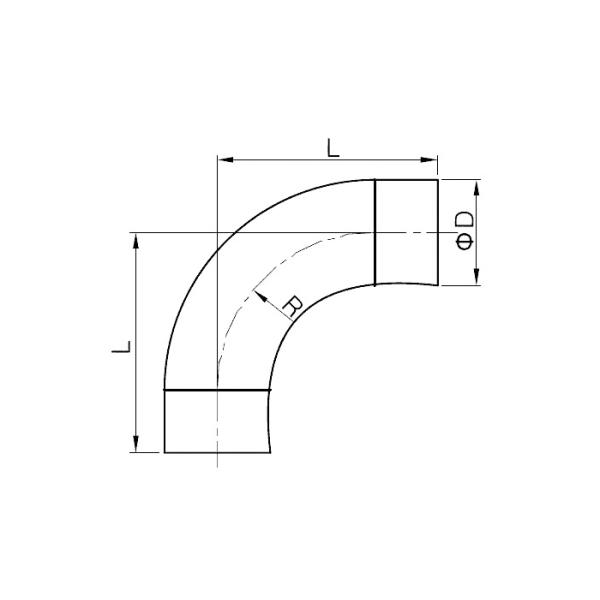

Dimension of Sanitary Weld Elbow – 90° with Tangent Ends- 3A

Size

D

L

R

1/2″

12.7

38

19.1

3/4″

19.1

38

28.5

1″

25.4

52.4

38.1

1 1/4″

31.8

69.7

47.7

1 1/2″

38.1

74.1

57.2

2″

50.8

103.2

76.2

2 1/2″

63.5

131.8

95.3

3″

76.2

160.3

114.3

4″

101.6

211.1

152.4

6″

152.4

280

228.6

304 / 304L Stainless Steel Sanitary Pipe Fittings Butt Weld Tube Elbow For Food Industry

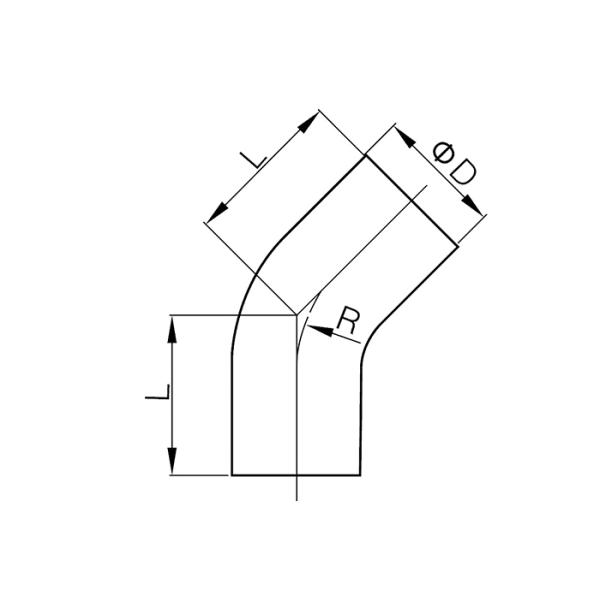

Dimension of Sanitary Weld Elbow – 45° with Straight Ends- SMS

Size

D

L

R

25

25.4

45

25

32

31.8

53.3

32

38

38.1

56.7

38

51

50.8

63.6

51

63

63.5

80.8

63.5

76

76.2

82

76

102

101.6

108.9

150

*Please contact us to get more information and specification about sanitary weld elbows.
