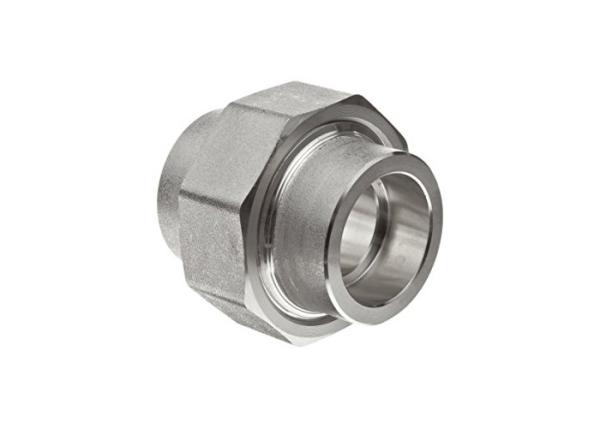

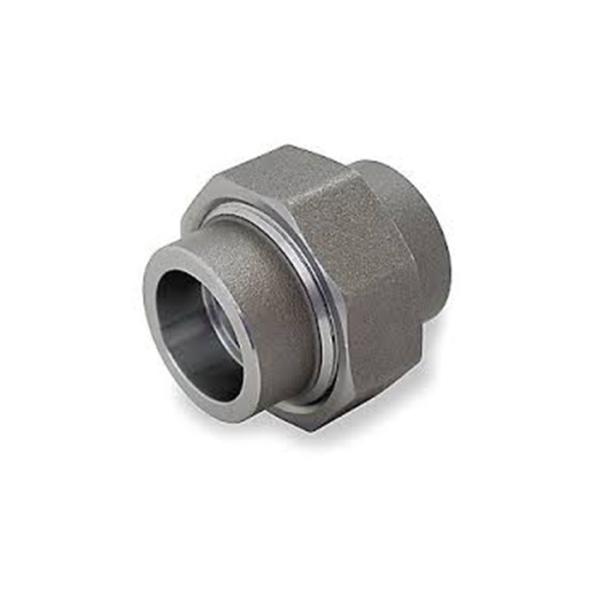

Socketwelded Union Pipe Stainless Steel Tube Fittings , Threaded Socket Weld Pipe Fittings
Socketwelded Union Pipe Stainless Steel Tube Fittings , Threaded Socket Weld Pipe Fittings
Socketwelded Union Pipe Stainless Steel Tube Fittings , Threaded Socket Weld Pipe Fittings
Socketwelded Union Pipe Stainless Steel Tube Fittings , Threaded Socket Weld Pipe Fittings
Specifications
Product name :
SW Union Fittings
Dimension :
DN15 ~DN100
Standards :
ANSI B16.11, BS3799, JIS B2316, GB/T14383, MSS SP-83, MSS SP-79 etc.
Materials :
Stainless Steel, Alloy Steel, Nickel-based Alloy
Pressure class :
3000LBS, 6000LBS, 9000LBS
Type :
Socket-Welded
Place of Origin :
China
Brand Name :
Kaysuns
Certification :
PED,ISO
Model Number :
KS-FF
MOQ :
500Kgs
Price :
USD
Packaging Details :
Plastic Bags / Plywood Boxes
Delivery Time :
30-45days
Supply Ability :
500Tons per Month
Description

Socketwelded Union Fittings ASTM A182 F304, F316L, F317L, F51, F53 ASME/ANSI B16.11 BS3799

A Socket weld union pipe fitting is similar to a Coupling, except it is designed to allow quick and convenient disconnection of pipes for maintenance or fixture replacement. While a Coupling would require either solvent welding or being able to rotate all the pipes adjacent as with a Threaded Coupling, a Union provides a simple nut transition, allowing easy release at any time.

Socket weld union fitting is a forged high pressure pipe fittings what is applied to various piping systems. With a step on the gallery, a pipe is inserted into the recessed area to welding and installing. In contrast to buttweld fittings, socket-weld fittings are generally small diameter but with high pressure rate working. Socket-welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.

Description:

  • Forged stainless material corforms to ASME A182.
  • Forged stainless steel fitting dimensions conform to ASME B16.11.
  • NPT threads conform to ASME B1.20.1.
  • Socket fittings conform to ASME B16.11.
  • Forged stainless unions conform to MSS SP-83.
  • Forged stainless outlets conform to MSS SP-97.
  • Forged stainless socket weld inserts conform to MSS SP-79.

Specification:

Product: Elbow(90°,45°), Tee, Full coupling, Half coupling, Reducing Coupling, High pressure boss, Welding boss, (45°) Mitre boss, Reducing coupling, Cap(Socket-welded End), Union(SW), Socket Reducing Insert etc.
Dimension Range: 1/2” to 4” (DN15 ~DN100)
Rates/SCH: Class 3000LBS, 6000LBS, 9000LBS
Materials:
  • Stainless Steel: ASTM A182 F304, F304L, F304/304L, F316, F316L, F316/FP316L, F317L, F321, F321H, F347, F347H, F51(Duplex Steel), N08904etc.
  • Nickel-based Alloy: Monel 400,Inconel 600,Incoloy 800/H,Alloy 20,Hastelloy C276,C22,B2, Cu70Ni30,Cu90Ni10,Titanium etc.
  • Alloy Steel: ASTM A105, ASTM A182 F11, F12, F22, F5, F91, A350 LF2,LF3, A694 F42, F46, F48, F50, F52,
Standards: ANSI B16.11, BS3799, JIS B2316, GB/T14383, MSS SP-83, MSS SP-79 etc.

Applications:

  • Oil and Gas Pipeline
  • Paper Mill
  • Chemical Engineering
  • Machinery Manufacturing
  • Shipyard
  • Offshore

Socketwelded Union Pipe Stainless Steel Tube Fittings , Threaded Socket Weld Pipe Fittings

*For more information about SW union fittings, please contact us.
