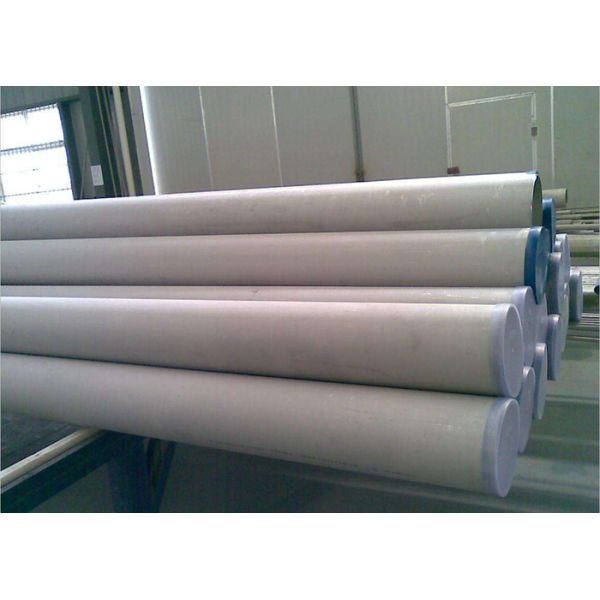

Petroleum 24 Large Diameter Stainless Steel Pipe High Temperature Resistant
Petroleum 24 Large Diameter Stainless Steel Pipe High Temperature Resistant
Petroleum 24 Large Diameter Stainless Steel Pipe High Temperature Resistant
Petroleum 24 Large Diameter Stainless Steel Pipe High Temperature Resistant
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-SMLS
Certification :
PED,ISO
Place of Origin :
China
MOQ :
500Kgs
Price :
USD
Supply Ability :
500Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plastic Bags / Plywood Boxes
Material :
304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO, etc.
Standard :
ASTM A312, A213,A269
Process :
Cold Drawn / Cold Rolled
Size :
1/2” to 60” (DN15 ~DN1500)
Type :
Seamless
OD. :
up to 1000mm
Description

24 Diameter ASTM A312, A213,A269 Large Diameter Stainless Steel Pipes TP316L

Cold Rolling and Cold Drawing


Cold Rolling is a preferred production process for high precision seamless tube. Most of our heat exchanger tubing and mechanical tube are made by cold rolling. This technique provides a high forming rate, narrow tolerances and good turnouts. Now the biggest diameter we can get is 168.3mm for this process.


Cold Drawing is the general process for our tube and pipe. Pipe&tubes from this process can be got a a very narrow tolerance ranges, and keep the chemical element well. Additionally, the cold drawing process is the perfect choice for situations which place high requirements on the quality of the surface structure.

Surface Finishes:

  • Pickling finish
  • bright annealed finish
  • Mirror finish
  • sand blast finish

DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40



Composition:

Elements 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08
(Mn) Manganese, max 2 2
(P) Phosphorus, max 0.045 0.045
(S) Sulfur, max 0.03 0.03
(Si) Silicon, max 1 1
(Ni) Nickel 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal.
(Cu) Copper N/A N/A
(N) Nitrogen N/A

N/A


C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0 0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75

Size: 1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm
Rate: SCH5S to SCHXXS
Standard:

ASTM A312, A213, A268,A269, A249, A270, A376,A511;
ASTM A789, A790;
ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729;
EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.
Material:

Stainless: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254
(mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc.

Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc.

Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.


Petroleum 24 Large Diameter Stainless Steel Pipe High Temperature Resistant
Our factory is a leading manufacturer and supplier for qualified large diameter stainless steel pipe, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.

For more information, please contact us.
