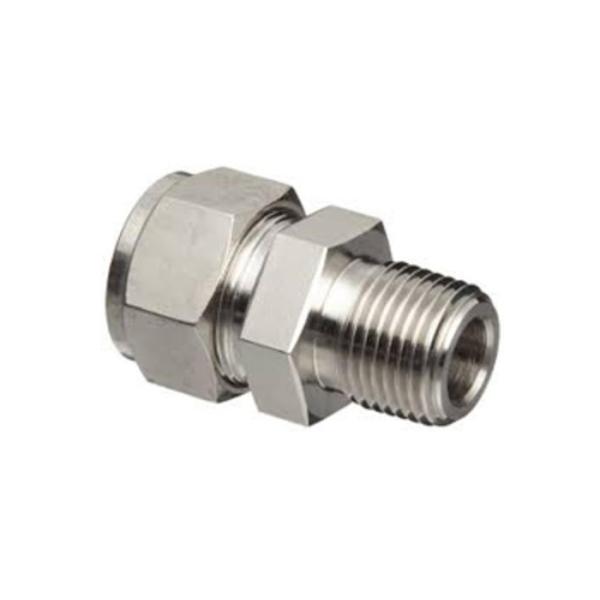

Fractional Tube Compression Tube Fittings 1 / 8 To 1 / 2 Inch Straight Male Connector
Fractional Tube Compression Tube Fittings 1 / 8 To 1 / 2 Inch Straight Male Connector
Fractional Tube Compression Tube Fittings 1 / 8 To 1 / 2 Inch Straight Male Connector
Fractional Tube Compression Tube Fittings 1 / 8 To 1 / 2 Inch Straight Male Connector
Specifications
Brand Name :
Kaysuns
Place of Origin :
China
Product Name :
Straight Male Connectors
Material :
Stainless steel
Size :
1/8" to 1/2"
Working Pressure :
Up to 6000psi
Package :
Plywood Case / Others
Connection Ends :
Threaded
Description

Fractional Tube ISO Parallel Thread(BP) Compression Tube Fittings Straight Male Connectors

The design and manufacture of compression tube fittings are meeting the stringent specifications required for industrial applications. Kaysuns pipe fittings are commonly used in oil and gas, pulp and paper, petrochemical/chemical processing, research laboratories, aerospace and defense, chemical processing, power generation, cryogenics and semiconductors, shipbuilding and heavy industry.



Feature:


1. The Size is from 1/8" to 1/2" and 3mm to 38mm and working pressure up to 6000psi;
2. Female nut threads are silver-plated to minimize the friction with the body threads;
3. Lastly, diverse materials and configurations can be provided.

Description:

T-Tube 0.D.(in.) P-BP Size(in.) Basic_Ordering Number DIM mm L DIM mm B DIM mm C DIM mm E DIM mm G DIM mm F
1/4 3/8 -CM-S4-BP6 38.4 14.2 15.2 4.8 14.3 17.5
3/8 3/8 -CM-S6-BP6 39.9 14.2 16.8 7.1 17.5 17.5


For more information about Compression Tube Fittings, please contact us.
