Specifications
Brand Name :
KAYSUNS
Model Number :
KS-Flange
Certification :
PED,ISO
Place of Origin :
China
MOQ :
100Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plastic Bags / Plywood Boxes
Product Name :
WN flange
Standard :
DIN, JIS, etc.
Process :
Forged
Pressure class :
150 - 3000lbs
Material :
304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO
Application :
Offshore, Chemical Engineering, Onshore Oil&Gas etc,
Description

Forged WN Stainless Steel Pipe Flange Welding Neck Flanges Pipe Fittings PN20 - PN420 F316L

Weld neck Flange also called as WN flanges. Kaysuns provides stainless steel flange with every pressure rates from PN10 to PN200, the materials include stainless steel ,alloy steel, nickel based alloy, titanium alloy etc. All of our flanges can be supplied upon EN10204 3.1 /EN10204 3.2 etc.

Stainless Steel WELD NECK Flanges Meterial Grade:


201, 202, 301, 304, 304L, 310S, 316, 316L,316Ti, 317, 317L, 321, 347, 904L Duplex Stainless Steel, S31803/2205, S32750/2507 , S32760 , S32304/2304, MONEL400, INCONEL600, INCOLOY800, ALLOY20, ALLOY28, NICKEL ALLOY.


Stainless Steel WN Flanges features:

  • Stainless steel wn flange is a part of a pipe that is connected to a pipe, connected to a pipe end, with a hole in the flange and a bolt that allows the two flanges to be tightened.
  • A flanged pipe fitting is a pipe with a flange (flange or plate), which can be made of cast or screwed or welded. Blue, a gasket and a number of bolts and nuts.
  • Gasket placed between the two flange sealing surface, tighten the nut, the gasket on the surface of the specific pressure to a certain value after the deformation,
  • and fill the sealing surface rugged Some of the pipe fittings and equipment has its own flanges, but also belong to the flange connection.

Application:

  • Offshore
  • Chemical Engineering
  • Onshore Oil&Gas
  • Paper Plants
  • Fertilizer
  • Environment Engineering
  • Power Project
  • Mining
  • Shipyard
  • Mechanical Manufacture
  • Food & Pharmacy

Rate: Class 150LBS ~ 3000LBS
Dimension: 3/8” to 72” (DN10 ~DN1800)
Material:
Stainless Steel: ASTM A/SA182 F304, F304L,F316, F316L, 316Ti, F317L, F321,F321H, F310H, F347H, N08904, F44 etc. (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).

Duplex&Super Duplex: ASTM A/SA182 F51, F53, F55, F59, F60(w1.4462, 1.4410, 1.4501, 1.4507 etc.)

Nickel Alloy:
ASTM B564 N10276, N04400,N06600,N06601,N06625,N08800, N08020 (w2.4819,2.4360,2.4361,2.4816,2.4851,2.4856,1.4876,1.4958 )etc.

Other Alloys:
ASTM A105,A105N; St37.2, C22.8;
ASTM A182 F11, F12, F22, F5, F91;
ASTM A350 LF2, LF3;
ASTM A694 F42, F46, F48, F50, F52, F56,F60,F65,F70 etc.

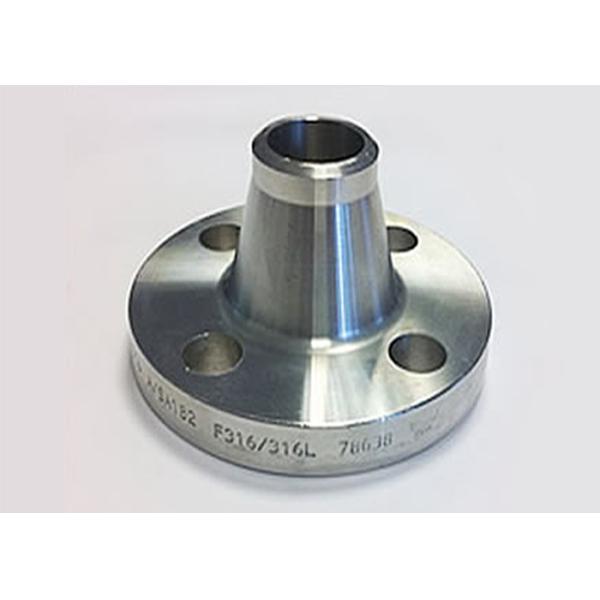

Forged WN Stainless Steel Weld Neck Flange , Stainless Steel Threaded Flange

We are strength in stainless steel flanges, such as SO flange, WN flange, Blind, Threaded flange, SW flange, Anchor Flange, Long welding neck flange etc, customized fabrication is available. For more information, please contact us.
