Fractional Tube NPT Compression Tube Fittings High Hardness Straight Male Connectors
Fractional Tube NPT Compression Tube Fittings High Hardness Straight Male Connectors
Fractional Tube NPT Compression Tube Fittings High Hardness Straight Male Connectors
Fractional Tube NPT Compression Tube Fittings High Hardness Straight Male Connectors
Specifications
Brand Name :
Kaysuns
Place of Origin :
China
Product Name :
Straight Male Connectors
Material :
Stainless steel
Size :
1/8" to 1/2"
Working Pressure :
Up to 6000psi
Feature :
corrosion resistance
service :
customized
Description

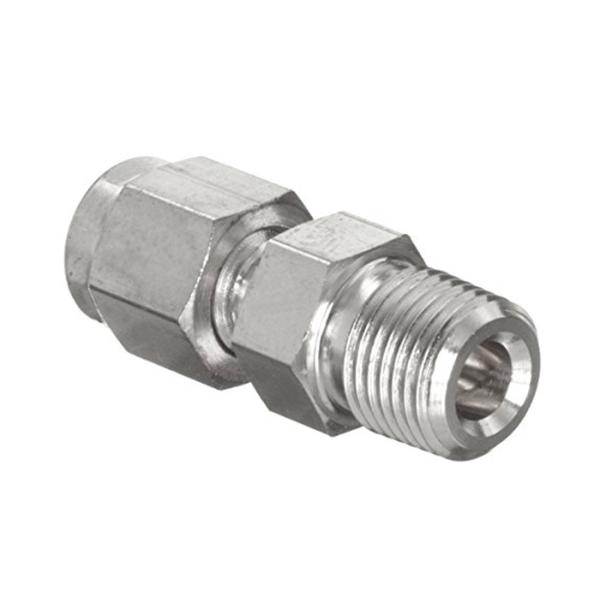

Fractional Tube NPT Threaded Compression Tube Fittings Straight Male Connectors

Kaysuns stainless steel tube fittings, compression tube fitting and stainless steel tubing fittings, stainless steel tube fittings, are designed availablely in many connections and configurations. Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.

Feature:
1. The Size is from 1/8" to 1/2" and 3mm to 38mm and working pressure up to 6000psi;
2. Female nut threads are silver-plated to minimize the friction with the body threads;
3. Lastly, diverse materials and configurations can be provided.
Fractional Tube NPT Compression Tube Fittings High Hardness Straight Male Connectors

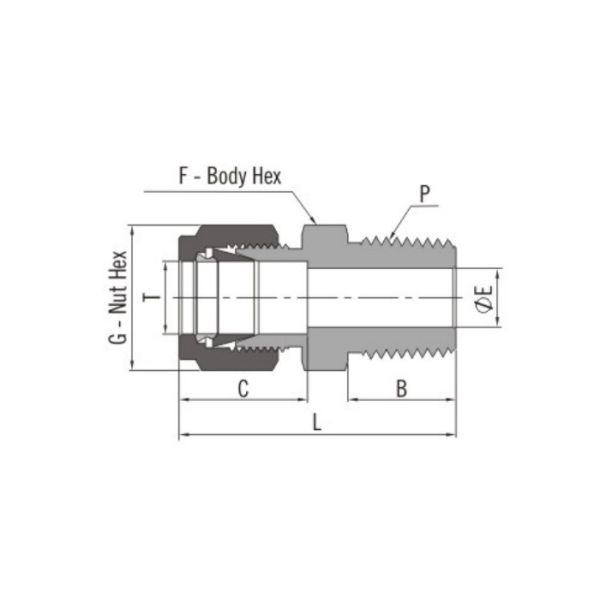

T-Tube 0.D.(in.)P-NPT SizeBasic_Ordering NumberDIM mm LDIM mm BDIM mm CDIM mm EDIM mm GDIM mm FInter-changes with
1/161/16-CM-S1-NT123.99.78.61.37.97.9-100-1-1
1/161/8-CM-S1-NT226.29.78.61.37.911.1-100-1-2
1/161/4-CM-S1-NT43114.28.61.37.914.3-100-1-4
1/81/16-CM-S2-NT129.79.712.72.311.111.1-200-1-1
1/81/8-CM-S2-NT230.59.712.72.311.111.1-200-1-2
1/81/4-CM-S2-NT435.614.212.72.311.114.3-200-1-4
1/83/8-CM-S2-NT635.814.212.72.311.117.5-200-1-6
1/81/2-CM-S2-NT842.219.112.72.311.122.2-200-1-8
3/161/16-CM-S3-NT131.29.713.72.312.711.1-300-1-1
3/161/8-CM-S3-NT231.29.713.73.012.711.1-300-1-2
3/161/4-CM-S3-NT436.314.213.73.012.714.3-300-1-4
1/41/16-CM-S4-NT132.89.715.23.014.312.7-400-1-1
1/41/8-CM-S4-NT232.89.715.24.814.312.7-400-1-2
1/41/4-CM-S4-NT437.814.215.24.814.314.3-400-1-4
1/43/8-CM-S4-NT638.414.215.24.814.317.5-400-1-6
1/41/2-CM-S4-NT844.719.115.24.814.322.2-400-1-8
1/43/4-CM-S4-NT1246.219.115.24.814.327.0-400-1-12
5/161/8-CM-S5-NT234.09.716.34.815.914.3-500-1-2
5/161/4-CM-S5-NT438.69.716.36.415.914.3-500-1-4
5/163/8-CM-S5-NT639.114.216.36.415.917.5-500-1-6
5/161/2-CM-S5-NT845.519.116.36.415.922.2-500-1-8
3/81/8-CM-S6-NT235.39.716.84.817.515.9-600-1-2
3/81/4-CM-S6-NT439.914.216.87.117.515.9-600-1-4
3/83/8-CM-S6-NT639.914.216.87.117.517.5-600-1-6
3/81/2-CM-S6-NT846.219.116.87.117.522.2-600-1-8
3/83/4-CM-S6-NT1247.819.116.87.117.527.0-600-1-12
3/81-CM-S6-NT1647.023.916.87.117.534.9-600-1-16
1/21/8-CM-S8-NT238.99.722.94.822.220.6-810-1-2
1/21/4-CM-S8-NT443.414.222.97.122.220.6-810-1-4
1/23/8-CM-S8-NT643.414.222.99.722.220.6-810-1-6
1/21/2-CM-S8-NT849.019.122.910.422.222.2-810-1-8
1/23/4-CM-S8-NT1250.519.122.910.422.227.0-810-1-12
1/21-CM-S8-NT1657.223.922.910.422.234.9-810-1-16
5/81/4-CM-S10-NT444.214.224.47.125.423.8-1010-1-4
5/83/8-CM-S10-NT644.214.224.49.725.423.8-1010-1-6
5/81/2-CM-S10-NT849.019.124.411.925.423.8-1010-1-8
5/83/4-CM-S10-NT1250.519.124.412.725.427.0-1010-1-12
3/43/8-CM-S12-NT645.714.224.410.428.627.0-1210-1-6
3/41/2-CM-S12-NT850.519.124.411.928.627.0-1210-1-8
3/43/4-CM-S12-NT1250.519.124.415.728.627.0-1210-1-12
3/41-CM-S12-NT1657.223.924.415.728.634.9-1210-1-16
7/81/2-CM-S14-NT850.519.125.911.931.830.2-1410-1-8
7/83/4-CM-S14-NT1250.519.125.915.731.830.2-1410-1-12
7/81-CM-S14-NT1657.223.925.918.331.834.9-1410-1-16
11/2-CM-S16-NT857.419.131.211.938.134.9-1610-1-8
13/4-CM-S16-NT1257.419.131.215.738.134.9-1610-1-16
11-CM-S16-NT1662.223.931.222.438.134.9-200-1-16
11/81-CM-S18-NT1662.223.931.222.446.041.3-1810-1-16
11/41-CM-S20-NT1677.223.941.122.447.644.5-2000-1-16
11/411/4-CM-S20-NT2077.223.941.127.747.644.5-2000-1-20
11/211/2-CM-S24-NT2488.926.250.034.057.254.0-2400-1-24


For more information about Compression Tube Fittings, please contact us.Fractional Tube NPT Compression Tube Fittings High Hardness Straight Male Connectors
