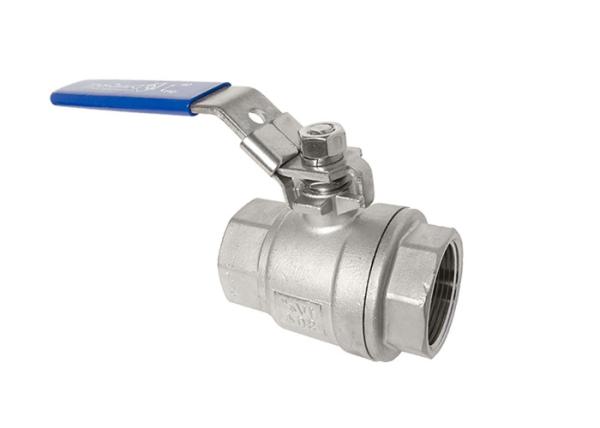

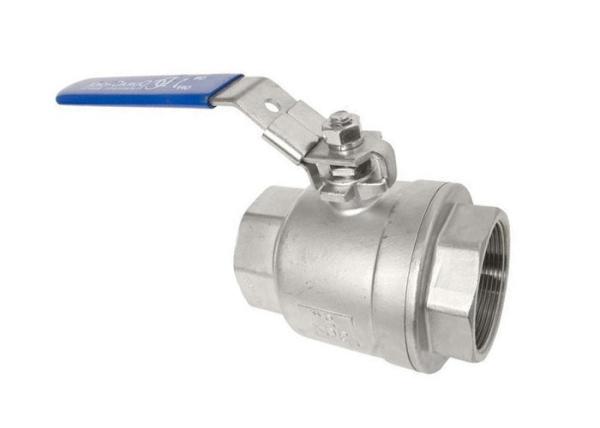

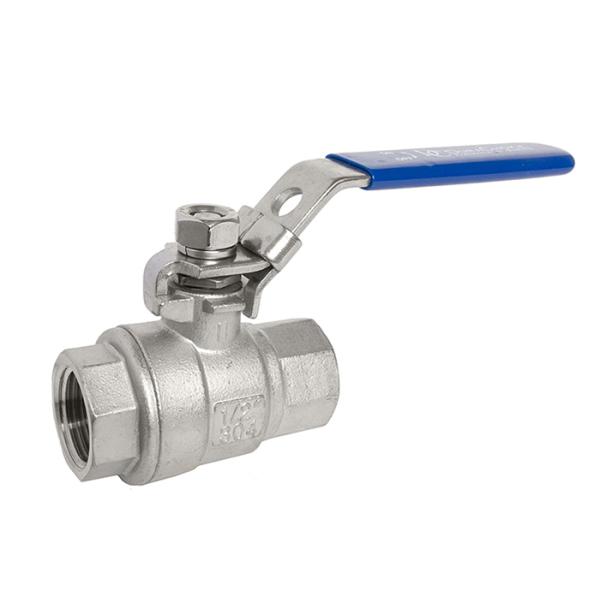

DIN 2 PCS Ball Stainless Steel Valves ASME B16.34 Precise Dimension Anti - Corrosion
DIN 2 PCS Ball Stainless Steel Valves ASME B16.34 Precise Dimension Anti - Corrosion
DIN 2 PCS Ball Stainless Steel Valves ASME B16.34 Precise Dimension Anti - Corrosion
DIN 2 PCS Ball Stainless Steel Valves ASME B16.34 Precise Dimension Anti - Corrosion
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-SV
Certification :
PED,ISO, API
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc, Duplex steel A890 Gr.4A, 5A, 6A etc.
Standard :
API 6D, ASME B16.34, BS1873, DIN etc.
End :
ANSI/ASME B16.5
Class :
150# ~ 2500#
Test Standard :
API 598
Package :
Plywood Case
Description

304 API 6D ASME B16.34 DIN 2 PCS Ball Valve Stainless Steel Valves 1-1/2" NPT

Kaysuns 2 PC ball valve at affordable prices. The products range from 2 PC valves to pipe fittings. The company is committed to delivering the best 2 PC ball valves and contract manufacturing services to customers around the world. Unrivalled expertise in design and manufacture of stainless steel ball valves earned the company great reputation for its innovation and precision. For custom-designed products, it offers a complete manufacturing service and comprehensive environment test facilities.

Features:

  • Full Port
  • Investment Casting
  • Material: (stainless steel)
    ASTM-A351-CF8M, ASTM-A351-CF8
    ASTM-A351-CF3M, ASTM-A216-WCB
  • Size Ranging: 1/4" ~ 3" (DN8 ~ DN80)
  • End Connections: DIN2999 / DIN259 / BSPT / NPT
  • Options: locking device

Dimension

SIZE D H L W
1/4" 11.5 56 48.5 108
3/8" 12.5 56 48.5 108
1/2" 15 59 58 108
3/4" 20 62 65 108
1" 25 68 77 130
1-1/4" 32 88 90 130
1-1/2" 38 100 98 152
2" 50 108 120 182
2-1/2" 65 125 145 220
3" 80 136 161.5 250

Specification

Valve Type Materials Size Standard
Ball Valve

Stainless steel: A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc.

Duplex: A890 Gr.4A, 5A, 6A etc.

Nickel based Material alloy20/28/30,904L,254Smo,

Monel 400, Monel K500,

Incoloy600,601,625,

Inconel 800,800H,800HT,825,

Hastelloy C276,C22,B2

1/2”~40”/DN15~DN1000.

Class150~2500

 API 6D, ASME B16.34,DIN
Gate Valve

1/2”~48”/DN15~DN1200.

Class150~1500

 API 600, ASME B16.34,DIN
Globe Valve

1/2”~24”/DN15~DN600.

Class150~2500

 API,ASME B16.34,BS 1873
Check Valve

1/2”~36”/DN15~DN900.

Class150~2500

 API 6D,ASME B16.34/BS 1868
Plug Valve

1/2”~36”/DN15~DN900.

Class150~1500

 API 599, API 6D
Butterfly Valve

1/2”~72”/DN15~DN1800.

Class150~300

 API609,ASME B16.34
Other Valves Fully Welding Ball Valve, Knife Gate Valve, Bellows Sealed Valve, Relief Valve, Diaphragm Valve etc.

* For more information, please contact us.

DIN 2 PCS Ball Stainless Steel Valves ASME B16.34 Precise Dimension Anti - Corrosion
