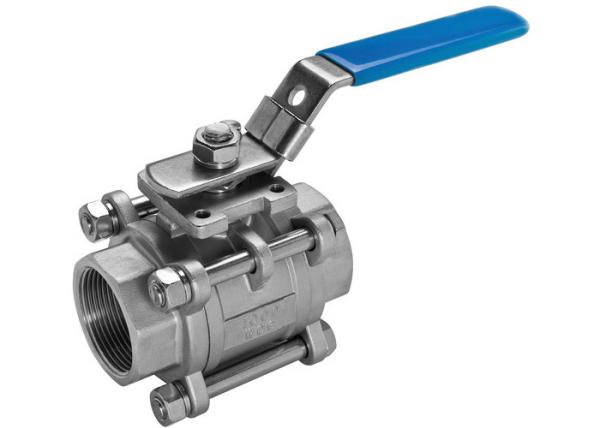

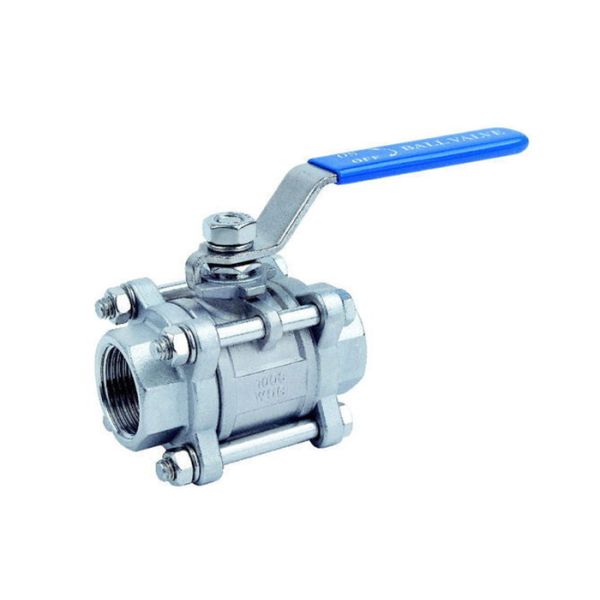

Full Port 3 Piece Stainless Steel Ball Valve , Gas / Water 1 / 4 Inch Ss Ball Valve
Full Port 3 Piece Stainless Steel Ball Valve , Gas / Water 1 / 4 Inch Ss Ball Valve
Full Port 3 Piece Stainless Steel Ball Valve , Gas / Water 1 / 4 Inch Ss Ball Valve
Full Port 3 Piece Stainless Steel Ball Valve , Gas / Water 1 / 4 Inch Ss Ball Valve
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-SV
Certification :
PED,ISO, API
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc, Duplex steel A890 Gr.4A, 5A, 6A etc.
Standard :
API 6D, ASME B16.34, DIN etc.
End :
ANSI/ASME B16.5
Face to Face :
ASME B16.10
Package :
Plywood Case
Class :
150# ~ 2500#
Description

1/4 Inch Stainless Steel Valves - Full Port (3 Piece) 3 PCS Ball Valve

Stainless steel 3-piece ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body, for easy inline maintenance. Rotating the ball 90° with the locking hand lever opens and closes

Features:

  • Standard Port
  • Investment Casting
  • Material: (stainless steel)
    ASTM-A351-CF8M, ASTM-A351-CF8
    ASTM-A351-CF3M, ASTM-A216-WCB
  • Working Pressure:
    1/2"~2" 1000WOG / PN63
    2-1/2"~4" 800WOG/ PN40
  • Size Ranging: 1/4" ~ 4" (DN8 ~ DN100)
  • End Connections: Threaded/ Socket Welded End / Butt Welded End
  • Options: locking device

Dimension

Pipe Size 1/4" NPT female
Port Size Full port, 0.45 inch orifice, Cv 8
Pressure (Max) 1000 PSI CWP (see P/T chart ), Vacuum 29inHg, Steam 125 PSI
Temperature -4 to 356 °F (-20 to 180 °C)
Body/Ball 316 stainless steel (ASTM A351 CF8M)
Stem 316 stainless steel
Handle 304 stainless steel
Ball Seats RTFE (reinforced Teflon)
Stem Seals RTFE/ Viton (live loaded and adjustable)
Bolts/Nuts 304 stainless steel
ISO5211 Mount F03/F05, 9mm square stem
Break Torque 45 inch lbs (0 PSI, 75 °F)
Weight 1.4 lbs.

Specification

Valve Type Materials Size Standard
Ball Valve

Stainless steel: A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc.

Duplex: A890 Gr.4A, 5A, 6A etc.

Nickel based Material alloy20/28/30,904L,254Smo,

Monel 400, Monel K500,

Incoloy600,601,625,

Inconel 800,800H,800HT,825,

Hastelloy C276,C22,B2

1/2”~40”/DN15~DN1000.

Class150~2500

 API 6D, ASME B16.34,DIN
Gate Valve

1/2”~48”/DN15~DN1200.

Class150~1500

 API 600, ASME B16.34,DIN
Globe Valve

1/2”~24”/DN15~DN600.

Class150~2500

 API,ASME B16.34,BS 1873
Check Valve

1/2”~36”/DN15~DN900.

Class150~2500

 API 6D,ASME B16.34/BS 1868
Plug Valve

1/2”~36”/DN15~DN900.

Class150~1500

 API 599, API 6D
Butterfly Valve

1/2”~72”/DN15~DN1800.

Class150~300

 API609,ASME B16.34
Other Valves Fully Welding Ball Valve, Knife Gate Valve, Bellows Sealed Valve, Relief Valve, Diaphragm Valve etc.

*For more information, please contact us.
