Class 150 2-way Stainless Steel Valves Flanged Plug Valve ANSI / ASME B16.5
Class 150 2-way Stainless Steel Valves Flanged Plug Valve ANSI / ASME B16.5
Class 150 2-way Stainless Steel Valves Flanged Plug Valve ANSI / ASME B16.5
Class 150 2-way Stainless Steel Valves Flanged Plug Valve ANSI / ASME B16.5
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-GLV
Certification :
PED,ISO, API
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc, Duplex steel A890 Gr.4A, 5A, 6A etc.
Standard :
API 6D, ASME B16.34, BS1873, DIN etc.
Test Standard :
API 598
End :
ANSI/ASME B16.5
Face to Face :
ASME B16.10
Package :
Plywood Case
Class :
150# ~ 2500#
Description

Class 150 2-way Stainless Steel Valves Flanged Plug Valve ANSI / ASME B16.5

High performance stainless steel body plug valves are available up to sizes 20" with a 2-way, internally piloted normally closed body. Viton seats are available by request. This plug valve is ideal for food, pharmaceutical, dry materials, vacuum service, low pressure steam, liquids, scaling, clean, dirty, corrosive and hazardous liquids and gasses.

Features:

Available in 2-way

Available in sizes from 1/2" - 20" flanged

Flanged end, class 150 connections

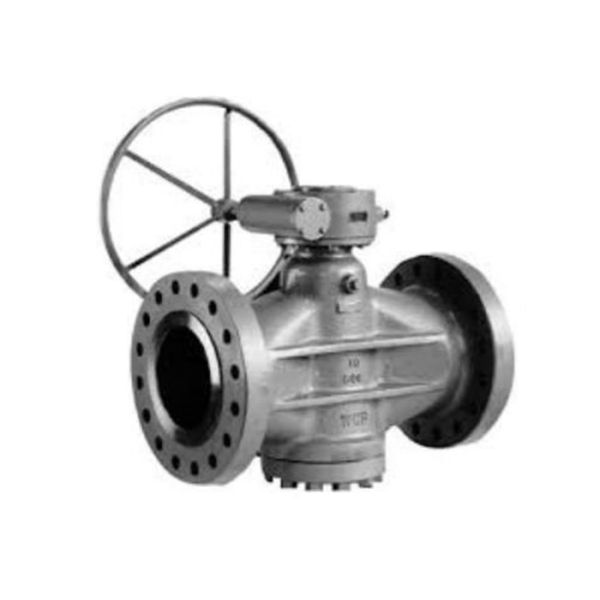

Available with hand wheel or gearbox operator

Plug and stem are made from 316 stainless steel

PTFE sleeve and seals

No body cavities

Superior long lasting shut off

Easy turning without lubrication

Self-draining in upright position

Rugged design

Specification

Valve Type Materials Size Standard
Ball Valve

Stainless steel: A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc.

Duplex: A890 Gr.4A, 5A, 6A etc.

Nickel based Material alloy20/28/30,904L,254Smo,

Monel 400, Monel K500,

Incoloy600,601,625,

Inconel 800,800H,800HT,825,

Hastelloy C276,C22,B2

1/2”~40”/DN15~DN1000.

Class150~2500

 API 6D, ASME B16.34,DIN
Gate Valve

1/2”~48”/DN15~DN1200.

Class150~1500

 API 600, ASME B16.34,DIN
Globe Valve

1/2”~24”/DN15~DN600.

Class150~2500

 API,ASME B16.34,BS 1873
Check Valve

1/2”~36”/DN15~DN900.

Class150~2500

 API 6D,ASME B16.34/BS 1868
Plug Valve

1/2”~36”/DN15~DN900.

Class150~1500

 API 599, API 6D
Butterfly Valve

1/2”~72”/DN15~DN1800.

Class150~300

 API609,ASME B16.34
Other Valves Fully Welding Ball Valve, Knife Gate Valve, Bellows Sealed Valve, Relief Valve, Diaphragm Valve etc.

* For more information, please contact us.
