1 / 2 Inch 2 PCs Stainless Steel Ball Valve API 6D BS1873 ASME B16.34
1 / 2 Inch 2 PCs Stainless Steel Ball Valve API 6D BS1873 ASME B16.34
1 / 2 Inch 2 PCs Stainless Steel Ball Valve API 6D BS1873 ASME B16.34
1 / 2 Inch 2 PCs Stainless Steel Ball Valve API 6D BS1873 ASME B16.34
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-GLV
Certification :
PED,ISO, API
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc, Duplex steel A890 Gr.4A, 5A, 6A etc.
Standard :
API 6D, ASME B16.34, BS1873, DIN etc.
Test Standard :
API 598
End :
ANSI/ASME B16.5
Face to Face :
ASME B16.10
Package :
Plywood Case
Class :
150# ~ 2500#
Description

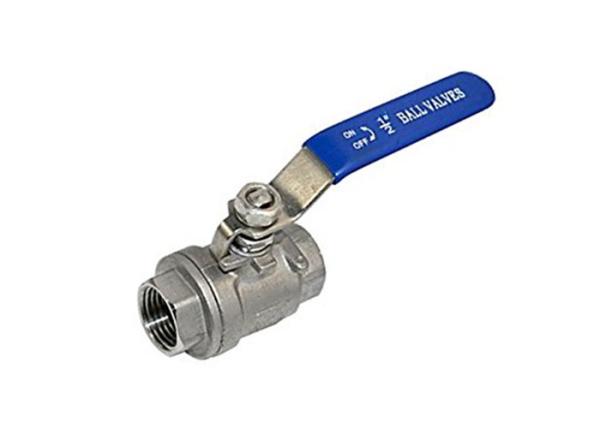

1 / 2 Inch 2 PCs Stainless Steel Ball Valve API 6D BS1873 ASME B16.34

The full port 2 piece ball valve features a working pressure of up to 2000PSI (150PSI WSP) in a stainless steel body with sizing available 1/4" - 2". With locking device and NACE compliance. Available in threaded (NPT) connection ends.

Features:

  • Available in sizes from 1/4" - 2"
  • Steam rating: 150 psi WSP
  • WORKING PRESSURE: 2000 PSI
  • INVESTMENT CASTING BODY & CAP
  • PTFE SEAL KITS: REPLACES PTFE ,RPTFE AND FPA
  • LOW DEFORMATION UNDER LOAD; LOW PERMEATION
  • TEMPERATURE RATING: -45.5oC (-50°F) to 246oC (475 °F)
  • ADJUST ABLE STEM PACKING
  • BLOW-OUT PROOF STEM;LOCKING DEVICE
  • DESIGN SPECIFICATION: ANSI B 16.34 CLASS 900
  • TEST STANDARD:API 598; Vacuum Service to 29" Hg
  • NACE MR-0175 FULL COMPLIANCE

Specification

Valve Type Materials Size Standard
Ball Valve

Stainless steel: A351 CF8,CF3, CF8M, CF3M, CK20, CG8M, CF8C, CK3MCuN(254Smo) etc.

Duplex: A890 Gr.4A, 5A, 6A etc.

Nickel based Material alloy20/28/30,904L,254Smo,

Monel 400, Monel K500,

Incoloy600,601,625,

Inconel 800,800H,800HT,825,

Hastelloy C276,C22,B2

1/2”~40”/DN15~DN1000.

Class150~2500

 API 6D, ASME B16.34,DIN
Gate Valve

1/2”~48”/DN15~DN1200.

Class150~1500

 API 600, ASME B16.34,DIN
Globe Valve

1/2”~24”/DN15~DN600.

Class150~2500

 API,ASME B16.34,BS 1873
Check Valve

1/2”~36”/DN15~DN900.

Class150~2500

 API 6D,ASME B16.34/BS 1868
Plug Valve

1/2”~36”/DN15~DN900.

Class150~1500

 API 599, API 6D
Butterfly Valve

1/2”~72”/DN15~DN1800.

Class150~300

 API609,ASME B16.34
Other Valves Fully Welding Ball Valve, Knife Gate Valve, Bellows Sealed Valve, Relief Valve, Diaphragm Valve etc.

* For more information, please contact us.

1 / 2 Inch 2 PCs Stainless Steel Ball Valve API 6D BS1873 ASME B16.34
