TP321 1.4541 S32100 SS Annealed / Pickled Heat Exchanger Tubing For Military
TP321 1.4541 S32100 SS Annealed / Pickled Heat Exchanger Tubing For Military
TP321 1.4541 S32100 SS Annealed / Pickled Heat Exchanger Tubing For Military
TP321 1.4541 S32100 SS Annealed / Pickled Heat Exchanger Tubing For Military
TP321 1.4541 S32100 SS Annealed / Pickled Heat Exchanger Tubing For Military
TP321 1.4541 S32100 SS Annealed / Pickled Heat Exchanger Tubing For Military
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOHET21
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
3700-9000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Material :
TP321 1.4541
Surface :
Pickling
U bent part surface :
Annealing , Not Pickling
Delivery Condition :
Soft / Hard
NDT :
Eddy Current Or Hydraulic Test
Inspection :
100%
Description

TP321 1.4541 S32100 Stainless Steel Annealed & Pickled Heat Exchanger Tubing

Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

Chemical Composition——Basic Raw Materials

ASTM/UNS

C (max)

Si (max)

Mn (max)

P (max)

S (max)

Cr

Ni

Mo

Ti

TP304/S30400

0.080

1.00

2.00

0.045

0.03

18.0-20.0

8.0-10.5

TP304L/S30403

0.035

1.00

2.00

0.045

0.03

18.0-20.0

8.0-13.0

TP304H/S30409

0.04-0.10

1.00

2.00

0.045

0.03

18.0-20.0

8.0-11.0

TP316/S31600

0.080

1.00

2.00

0.045

0.03

16.0-18.0

11.0-14.0

2.0-3.0

TP316L/S31603

0.035

1.00

2.00

0.045

0.03

16.0-18.0

10.0-14.0

2.0-3.0

TP316Ti/S31635

0.080

1.00

2.00

0.045

0.03

16.0-18.0

10.0-14.0

2.0-3.0

0.7>5x(C+N)

TP321/S32100

0.080

1.00

2.00

0.045

0.03

17.0-19.0

9.0-12.0

0.7>5x(C+N)

TP317L/S31703

0.035

1.00

2.00

0.045

0.03

18.0-20.0

11.0-15.0

3.0-4.0

TP347H/S34709

0.04-0.10

1.00

2.00

0.045

0.03

17.0-19.0

9.0-13.0

TP309S/S30908

0.080

1.00

2.00

0.045

0.03

22.0-24.0

12.0-15.0

0.75

TP310S/S31008

0.080

1.00

2.00

0.045

0.03

24.0-26.0

19.0-22.0

0.75

Application

a) Petroleum , chemical enterprise , super heater of boiler and heat exchanger

b) High temperature-resistant transmission fluid pipe in power station

c) Ship with pressure pipe

d) Exhaust purification device

e) Construction and ornament

f) solar industry , military , semiconductor etc

Process :

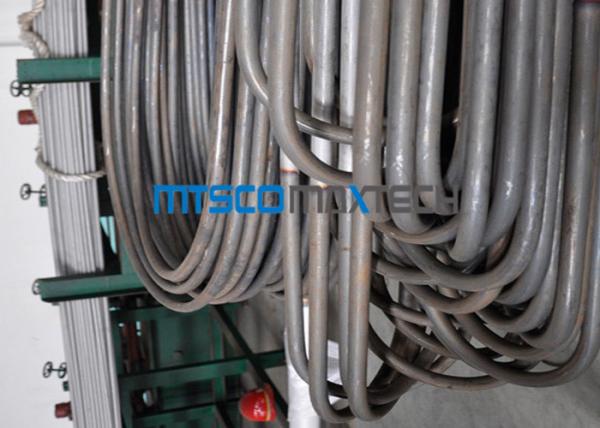

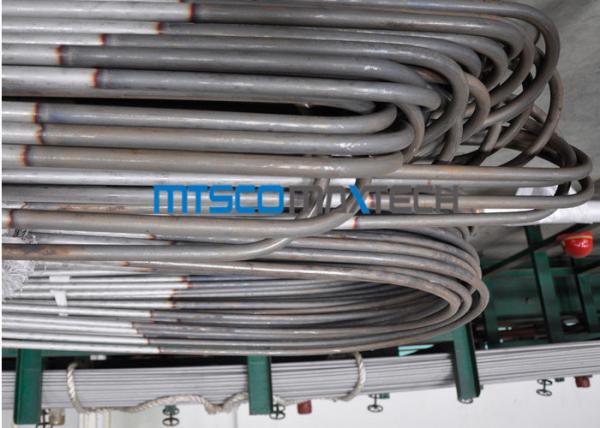

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate

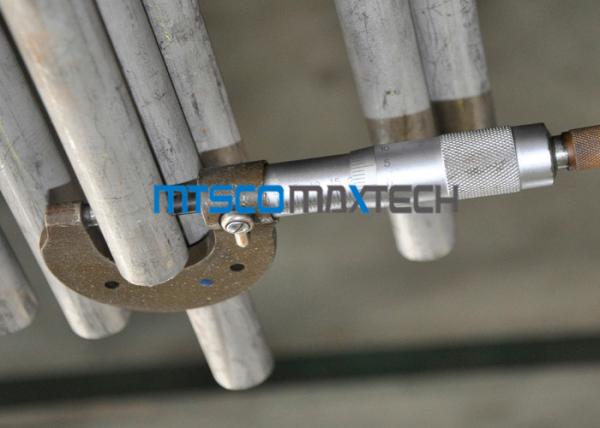

4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage

MTSCO is a leading manufacturer who is specialized in seamless tubes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
