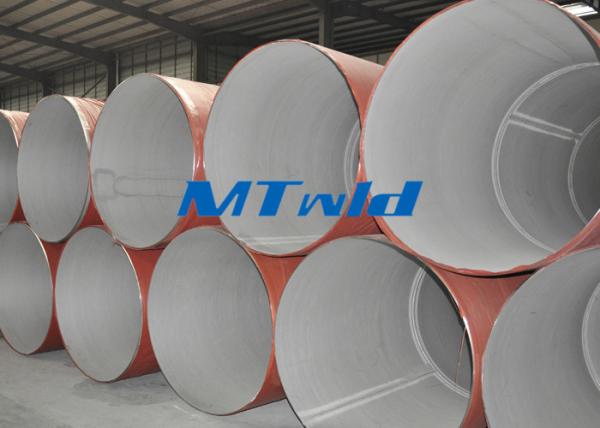

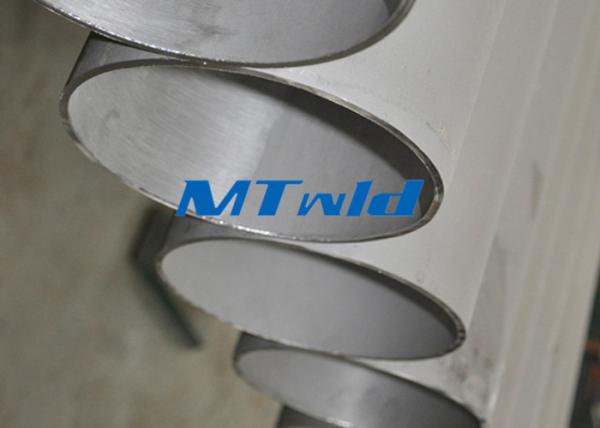

10 Inch 273.1mm Welded Stainless Steel Pipes ASTM A358 0.25mm - 28mm Wall Thickness
10 Inch 273.1mm Welded Stainless Steel Pipes ASTM A358 0.25mm - 28mm Wall Thickness
10 Inch 273.1mm Welded Stainless Steel Pipes ASTM A358 0.25mm - 28mm Wall Thickness
10 Inch 273.1mm Welded Stainless Steel Pipes ASTM A358 0.25mm - 28mm Wall Thickness
10 Inch 273.1mm Welded Stainless Steel Pipes ASTM A358 0.25mm - 28mm Wall Thickness
10 Inch 273.1mm Welded Stainless Steel Pipes ASTM A358 0.25mm - 28mm Wall Thickness
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOSSSP21
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
2400-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
500 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case / Bundles
Material :
300 Series Stainless Steel
Type :
Welded
NDT :
Eddy current or Hydraulic test
Inspection :
100%
Surface :
Pickling & Annealing
Process :
ERW , EFW Etc
Description

ASTM A358 EFW / ERW Stainless Steel Welded Pipe 10 Inch 273.1mm

Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , etc
Outer Diameter 5.80mm - 2032mm ( 0.23" to 80" )
Wall Thickness 0.25mm - 28mm ( 0.01" to 1.125" )
Length Normally fixed length 6m , can as per customer’s requirement
Standard ASTM A312 ; ASTM A358 ; ASTM A789 ; ASTM A790 ect .
Process Method ERW , EFW etc

Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A

MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .
