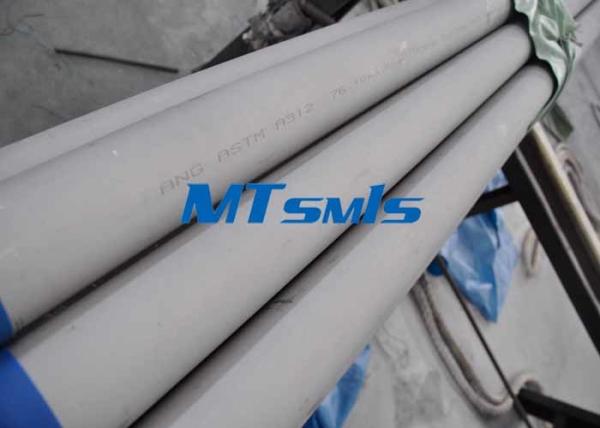

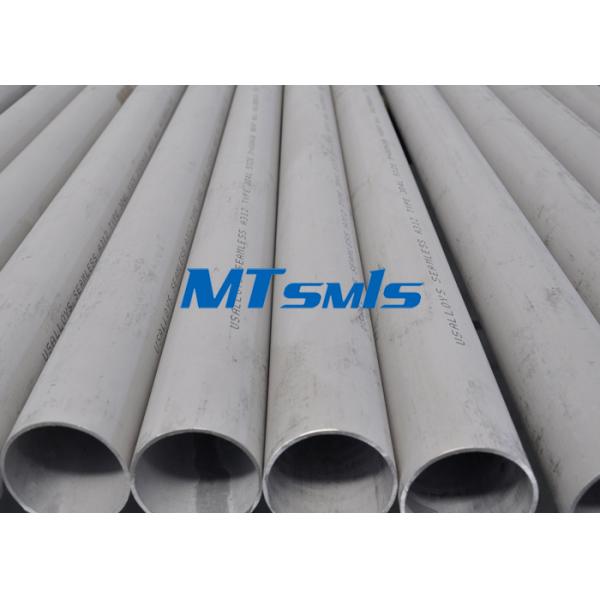

ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End
ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End
ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End
ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End
ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End
ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOSSSP35
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
2900-10000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Material :
300 Series , 316Ti , 317L , 347 , 321
Delivery Condition :
Soft / Hard
NDT :
Eddy Current Or Hydraulic Test
End Cut :
Plain End ( PE ) / Bevel End ( BE )
Type :
Seamless
Inspection :
100%
Description

ASTM A312 316Ti / 317L Stainless Steel Pipe 0 To 40 SWG Plain End

Grade:TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard:ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc

Size: OD:6.35-44.5mm (1/4”-1 3/4”)

WT:0.71-3.81mm (0.028”-0.15”)

Length:Max.12M

Advantage: Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment

Application: Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.

Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.

Package: Plastic in both ends, then packed in iron case


Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91 　 　 　

Industry & Advantage

Application

a) For fluid & gas transport

b) Structure & machining etc

Advantages

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc

ASTM A312 316Ti / 317L Stainless Steel Pipe Seamless 0 - 40 SWG Plain End

MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
