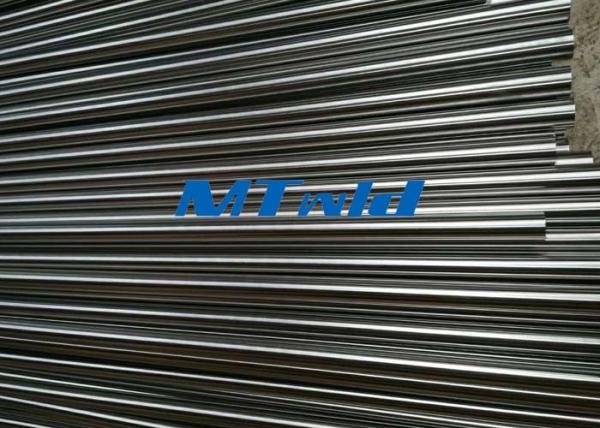

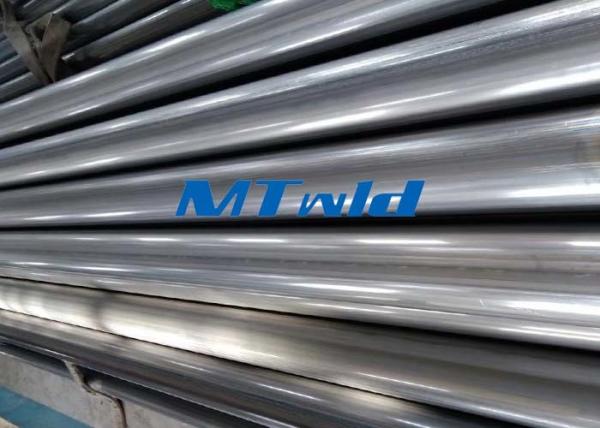

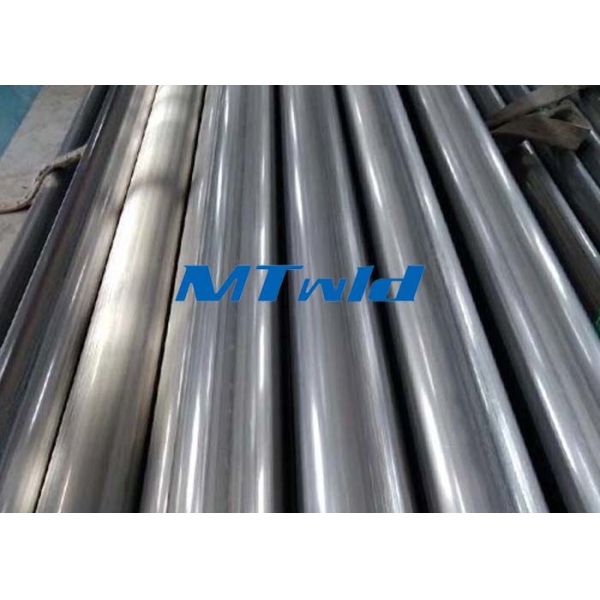

ASME SA249 TP316/316L Stainless Steel Welded Tube For Project Drinking
ASME SA249 TP316/316L Stainless Steel Welded Tube For Project Drinking
ASME SA249 TP316/316L Stainless Steel Welded Tube For Project Drinking
ASME SA249 TP316/316L Stainless Steel Welded Tube For Project Drinking
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOSSWT72
Certification :
ISO 9001 & PED
Place of Origin :
CHINA
MOQ :
negotiable
Price :
2500-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
500 Tons / Month
Delivery Time :
25 Days
Packaging Details :
Plywood Case / Bundles
Material :
TP304 TP304L TP316 TP316L , 300 Series Stainless Steel
Surface :
320 # Or 400 # Outside Polished
Delivery Condition :
Soft / Hard
Type :
Welded
Process Method :
ERW , EFW Etc
PMI Test :
100%
Description

ASME SA249 TP316/316L Stainless Steel Welded Tube For Project Of Drinking

1 . OD ( Outer Diameter ) : 9.5mm to 323.85mm

2 . WT ( Wall Thickness ) : 0.8mm to 5mm

3 . Length : According to customer's requirement

4 . Standards : ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect

5 . Process Method : ERW, EFW etc

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have welded pipes and tubes too . MTSCO has the most advanced producing and testing equipment . Our products are always satisfied with customers . Customers purchased our products created more profits .

ASTM A249 Standard :

Size OD Nominal Wall Outside Diameter Length Wall
1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%

Application :

a) For fluid and gas transport

b) Structure and machining

c) Heat exchanger pipes etc

Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91 　 　 　
