ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOPSST41
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
6000-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
Stainless Steel 300 Series , 1.4307 , 1.4404 , 1.4401
End Cut :
Plain End ( PE ) / Bevel End ( BE )
Delivery Condition :
Soft / Hard
NDT :
Eddy Current Or Hydraulic Test
Inspection :
100%
Surface :
Annealing
Description

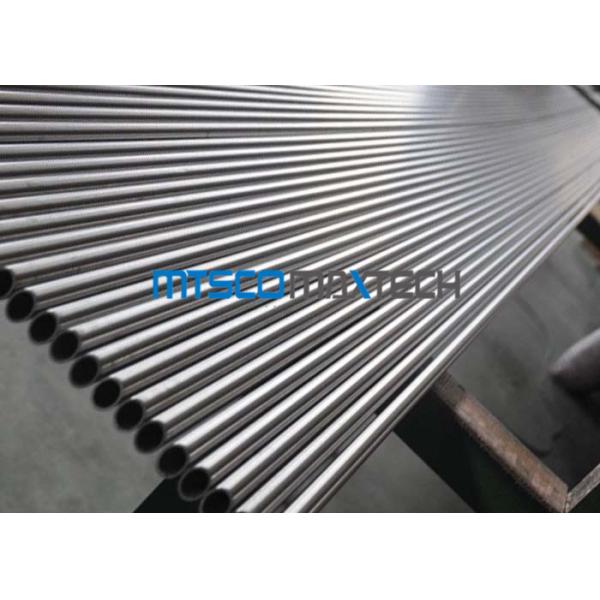

ASTM A269 / A213 Stainless Steel Precision Seamless Tube With Cold Rolled For Chemical


MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .


Test :

1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )

Main Market :

MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .

Precision stainless steel tubing can used some industries. Such as petroleum industry , chemical enterprise industry , superheater boiler industry , heat exchanger industry etc . Also can be used in ship industry , construction and ornament : Escalator , Elevator , Doors Production tools , Kitchen appliances , Freezers , Cold rooms etc .
ASTM A269 / A213 Stainless Steel Precision Seamless Pipe With Cold Rolled For Chemical
Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91 　 　 　

EN10216-5 Standard Chemical Composition :

Steel Grade C Si Mn P S N Cr Cu Mo Nb Ni Ti Others
max 　 　 max max 　 　 　 　 　 　 　 　
Steel Name Steel Number 　 　 　 　 　 　 　 　 　 　 　 　 　
X2CrNi19-11 1.4306 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 18.00 - 20.00 - - - 8.00 - 10.00 - -
X5CrNi18-10 1.4301 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.50 - - - 8.00 - 10.50 - -
X6CrNiTi18-10 1.4541 0.08 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.00 - - - 9.00 - 12.00 5xC to 0.70 -
X6CrNiNb18-10 1.4550 0.08 ≤1 ≤2 0.04 0.015 - 17.00 - 19.00 - - 10xC to 1.00 9.00 - 12.00 - -
X2CrNiMo17-12-2 1.4404 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X5CrNiMo17-12-2 1.4401 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X6CrNiMoTi17-12-2 1.4571 0.08 ≤1 ≤2 0.04 0.015 - 16.50 - 18.50 - 2.00 - 2.50 - 10.50 - 13.50 5xC to 0.70 -

Chemical Composition

C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0 0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75
