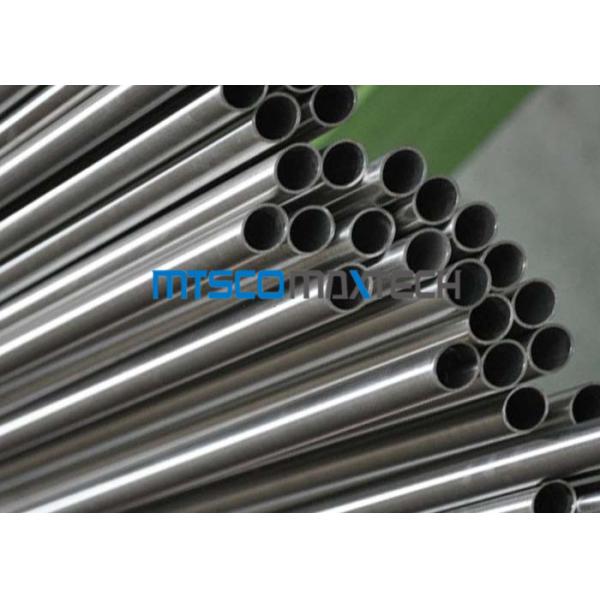

18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube
18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube
18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube
18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOPSST43
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
6000-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
Stainless Steel TP310S , 300 Series
End Cut :
Plain End ( PE ) / Bevel End ( BE )
Delivery Condition :
Soft / Hard
NDT :
Eddy Current Or Hydraulic Test
Inspection :
100%
Surface :
Annealing
Description

18SWG TP309S / 310S Stainless Steel Precision Tube, ASTM A213 Seamless Tube



Product Description

Outer Diameter3.18-101.6mm
Wall Thickness0.5-20mm
NPS1/8"-24"
Schedule5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade304/304L/316/316L/321/309S/310S, etc
StandardASTM A269, ASTM A312, etc
Applicationused in Fluid and Gas Transport, Structure and Machining,etc
CertificatesISO9001:2008, PED, BV
Process MethodCold Drawn/ Cold Rolled
Surface FinishAnnealed/ Polished
PackageWoven bag for each piece, then packed in seaworthy wooden cases
Delivery Time20-60 Days after receiving the deposit (Normally according to the order quantity)
Price ItemFOB, CIF or as negotiation
PaymentT/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality RequirementMill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main MarketEurope, Middle East, Southeast Asia, South America, etc


18SWG TP309S / 310S Stainless Steel Precision Tubing , ASTM A213 Seamless Tube

ASTM A213 / A213M Chemical Composition :

ElementsTP310S(wt%) S31008
(C) Carbon, max :0.08
(Mn) Manganese, max :2
(P) Phosphorus, max :0.045
(S) Sulfur, max :0.03
(Si) Silicon, max :1
(Ni) Nickel :19.0 - 22.0
(Cr) Chromium :24.0 - 26.0
(Mo) Molybdenum :…
(Fe) Iron :…
(Cu) Copper :…
(N) Nitrogen :…

Specification :


Size		OD : 4.76 - 25.4mm
WT : 0.71 - 2.11mm
Length : >1000Meters
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm


MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
