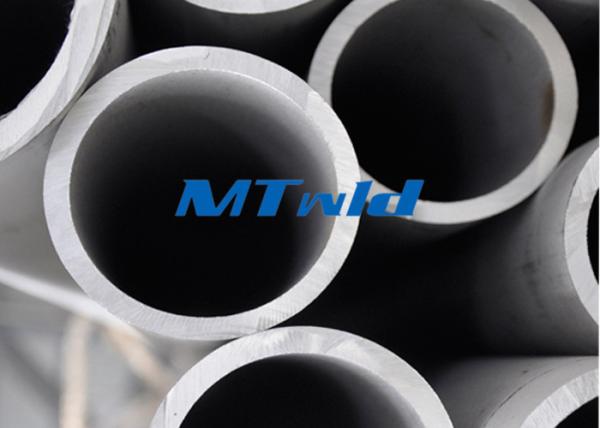

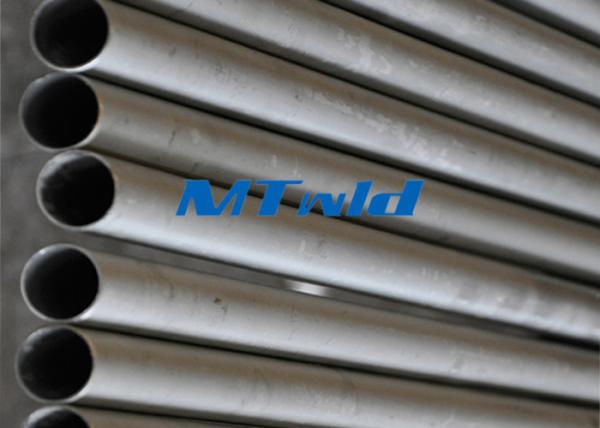

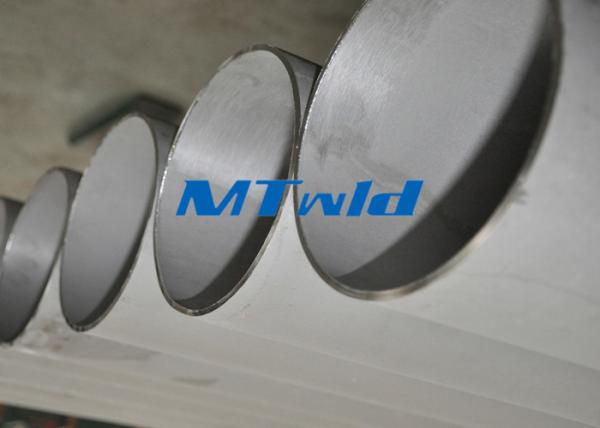

6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOSSSP33
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
2400-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
500 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case / Bundles
Material :
300 Series Stainless Steel
Type :
Welded
NDT :
Eddy current or Hydraulic test
Inspection :
100%
Surface :
Pickling & Annealing
Process :
ERW , EFW Etc
Description

6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas

Material Grade: S32205, S31803, S32304, S32750, F51, F53, 2205, 2507 etc

Outer Diameter: 10.3mm-1219mm

Wall Thickness: 1.24mm-59.54mm

Length: Normally fixed length 6m, can as per customer’s requirement

Standard: ASTM A789; ASTM A790; EN 10216-5ect.

Process Method: Cold Drawn or Cold Rolled

Application

a) Petroleum

b) Chemical industry

c) Instrument

d) Industrial transportation

e) Mechanical structure industry

f) Need high corrision ability pipe's industry, such as offshore industry etc

Advantages

a) Superior surface finish,

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Price Item: FOB, CFR, CIF or as negotiation

Payment: T/T, LC or as negotiation

Delivery Time:30 working days after received your deposit (Normally according to the order quantity)

Package: Iron case; woven bag or as per customer’s requirement

Requirement :Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable

Quality Test NTD(Ultrasonic test, Eddy Current test);

Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test);

Metal Test(Metallographic Analysis, Impact Test-High/low temperature);

Chemical Analysis(Photoelectric Emission Spectroscopic)

Main Market: Europe, Middle East, Southeast Asia, South America. Etc

6 / 8 / 10SWG ASTM A790 Duplex Stainless Steel Pipe , Large Diameter Steel Pipe For Oil And Gas

Standards :

ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12 : Standard Specification for Seamless , Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe

Test :

1 . X-ray , Size test , Length test

2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc

Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91 　 　 　

MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .
