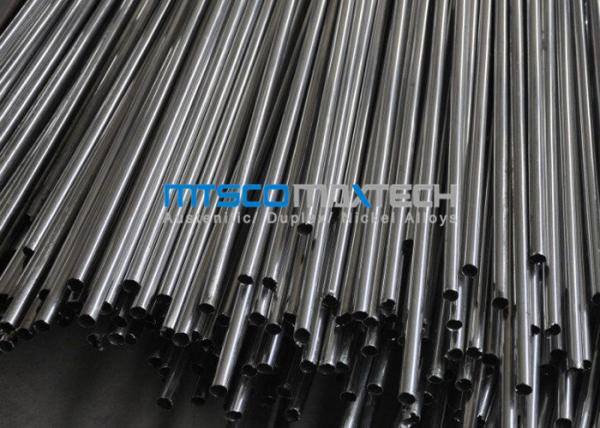

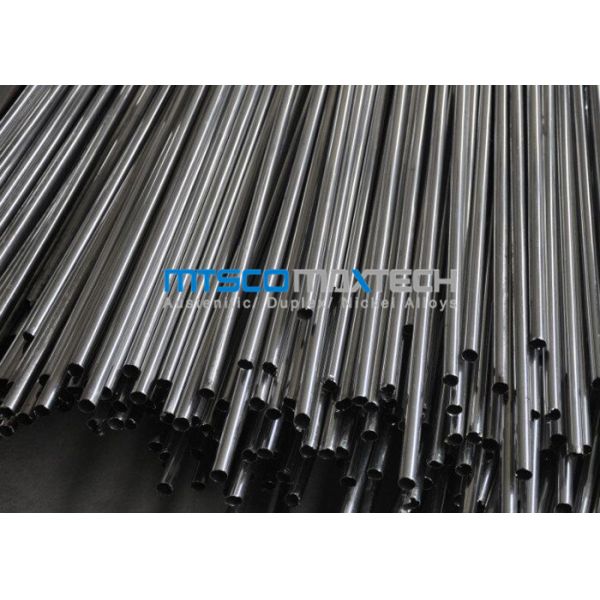

TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
TP309S / 310S EN10216-5 Hydraulic Tubing Precise Dimension For Chemical Industry
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOHT39
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
4300-9800USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
300 Series Stainless Steel
Surface :
Polished 400 # 320 # Etc
Type :
Seamless
NDT :
Eddy Current Or Hydraulic Test
Inspection :
100%
Technology :
Cold Drawn / Cold Rolled
Description

TP309S / 310S EN10216-5 Hydraulic Tubing With Precise Dimension For Chemical Industry

Grade

 TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard

 ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD:3.18-101.6mm
WT:0.5-20mm
Length:Max.12M
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.
Package Plastic in both ends, then packed in iron case

EN10216-5 Standard Chemical Composition :

Steel Grade C Si Mn P S N Cr Cu Mo Nb Ni Ti Others
max 　 　 max max 　 　 　 　 　 　 　 　
Steel Name Steel Number 　 　 　 　 　 　 　 　 　 　 　 　 　
X2CrNi19-11 1.4306 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 18.00 - 20.00 - - - 8.00 - 10.00 - -
X5CrNi18-10 1.4301 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.50 - - - 8.00 - 10.50 - -
X6CrNiTi18-10 1.4541 0.08 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.00 - - - 9.00 - 12.00 5xC to 0.70 -
X6CrNiNb18-10 1.4550 0.08 ≤1 ≤2 0.04 0.015 - 17.00 - 19.00 - - 10xC to 1.00 9.00 - 12.00 - -
X2CrNiMo17-12-2 1.4404 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X5CrNiMo17-12-2 1.4401 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X6CrNiMoTi17-12-2 1.4571 0.08 ≤1 ≤2 0.04 0.015 - 16.50 - 18.50 - 2.00 - 2.50 - 10.50 - 13.50 5xC to 0.70 -

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .

Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
