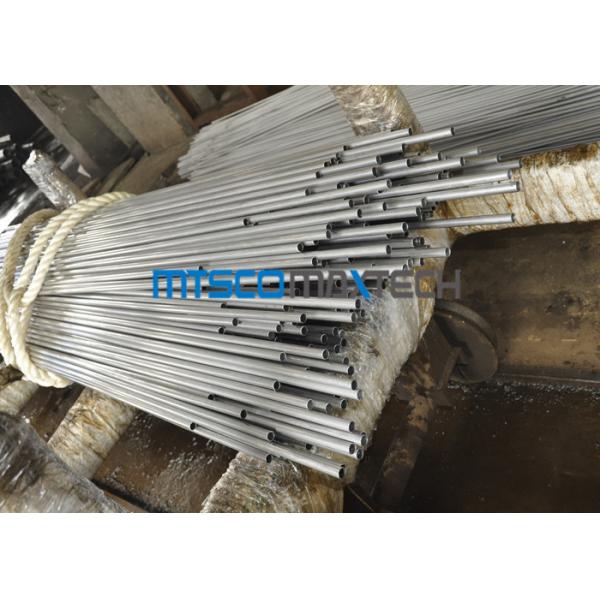

ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing
Specifications
Brand Name :
MTSCO
Model Number :
MTSCODST38
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
5500-10000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
Duplex S31803 / S32205 / S32750 / S32760
Type :
SMLS
Standard :
ASTM A790 / ASTM A789
Length :
10 FT / 20 FT
Test :
NDT
Technology :
Cold Drawn
Description

2507 / 2205 ASTM A789 / ASME SA789 Stainless Steel Duplex Steel Tube With Cold Rolled

Descrition:

Material Grade: S32205, S31803, S32304, S32750, S32760 etc

Outer Diameter: 3.18mm-101.6mm

Wall Thickness: 0.5mm-20mm

Length: Normally fixed length 6m, can as per customer’s requirement

Standard: ASTM A789; ASTM A790; EN 10216-5 etc.

Process Method: Cold Drawn or Cold Rolled

ASTM A790 Standard
2205 / S32750 Elements
(C) Carbon , max : 0.030
(Mn) Manganese , max : 1.20
(P) Phosphorus , max : 0.035
(S) Sulfur , max : 0.020
(Si) Silicon , max : 0.80
(Ni) Nickel : 6.0 - 8.0
(Cr) Chromium : 24.0 - 26.0
(Mo) Molybdenum : 3.0 - 5.0
(Fe) Iron : --
(Cu) Copper , max : 0.5
(N) Nitrogen : 0.24 - 0.32

UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00

Application:

a) Petroleum

b) Chemical industry

c) Instrument

d) Industrial transportation

e) Mechanical structure industry

f) Need high corrision ability pipe's industry, such as offshore industry etc

Advantages:

a) Superior surface finish,

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

ASTM A789 ASME SA789 Duplex Steel Tube 2205 / 2507 super duplex tubing

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright

annealed tubes , seamless coiled tubing etc basic products . We also have duplex stainless steel tubes and

pipes , nickel alloy tubes and pipes etc . MTSCO has the most advanced producing and testing

equipment. We can totally satisfy your requirement .

According to standard very strictly , duplex steel tubes which produced by us always have correct OD and WT

tolerance . And they have more perfect corrosion ability .
