Specifications
Brand Name :
MTSCO
Model Number :
MTSCOHT14
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
4300-9800USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
300 Series Stainless Steel
Surface :
Polished 400 # 320 # Etc
Type :
Seamless
NDT :
Eddy Current Or Hydraulic Test
Inspection :
100%
Technology :
Cold Drawn / Cold Rolled
Description

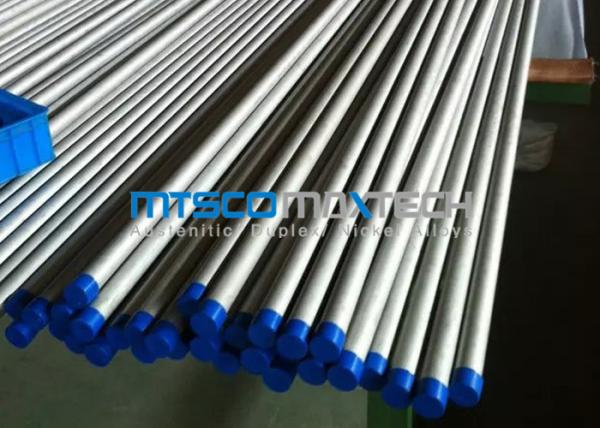

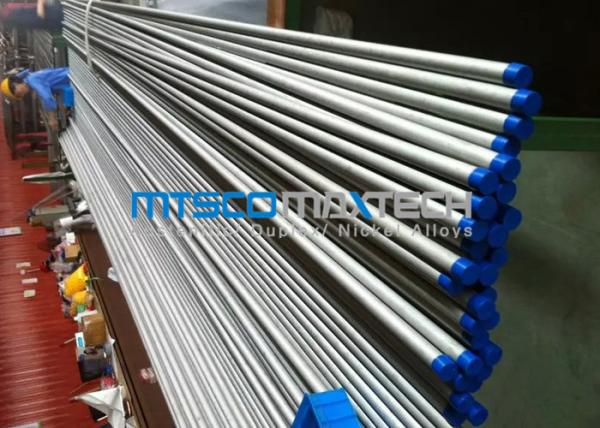

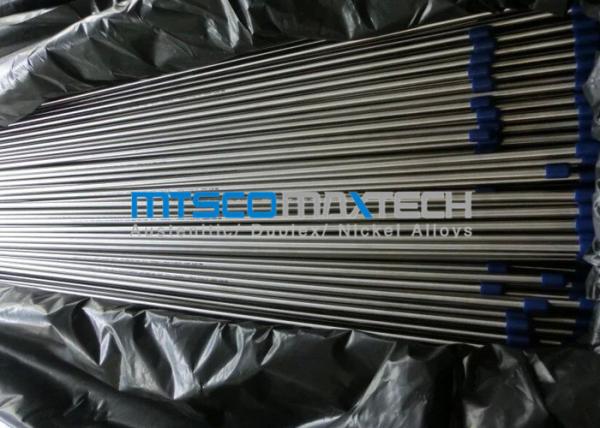

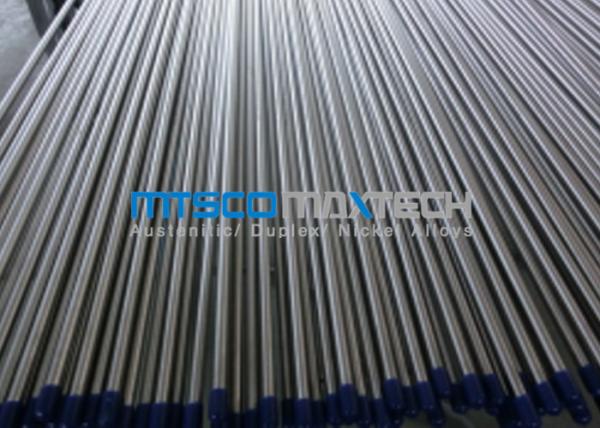

ASTM A269 / A213 / A312 / EN10216-5 TC 1 D4 / T3 Stainless Steel Hydraulic Tubing , Annealing Tubing , Cold Drawn Tubing​

Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .

Applications :

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry

Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91 　 　 　

EN10216-5 Standard Chemical Composition :

Steel Grade C Si Mn P S N Cr Cu Mo Nb Ni Ti Others
max 　 　 max max 　 　 　 　 　 　 　 　
Steel Name Steel Number 　 　 　 　 　 　 　 　 　 　 　 　 　
X2CrNi19-11 1.4306 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 18.00 - 20.00 - - - 8.00 - 10.00 - -
X5CrNi18-10 1.4301 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.50 - - - 8.00 - 10.50 - -
X6CrNiTi18-10 1.4541 0.08 ≤1 ≤2 0.04 0.015 ≤0.11 17.00 - 19.00 - - - 9.00 - 12.00 5xC to 0.70 -
X6CrNiNb18-10 1.4550 0.08 ≤1 ≤2 0.04 0.015 - 17.00 - 19.00 - - 10xC to 1.00 9.00 - 12.00 - -
X2CrNiMo17-12-2 1.4404 0.03 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X5CrNiMo17-12-2 1.4401 0.07 ≤1 ≤2 0.04 0.015 ≤0.11 16.50 - 18.50 - 2.00 - 2.50 - 10.00 - 13.00 - -
X6CrNiMoTi17-12-2 1.4571 0.08 ≤1 ≤2 0.04 0.015 - 16.50 - 18.50 - 2.00 - 2.50 - 10.50 - 13.50 5xC to 0.70 -

ASTM A213 / A213M Standard :

Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A

ASTM A269 / A213 / A312 / EN10216-5 TC 1 D4 / T3 Stainless Steel Hydraulic Tubing , Annealing Tubing , Cold Drawn Tubing

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .
