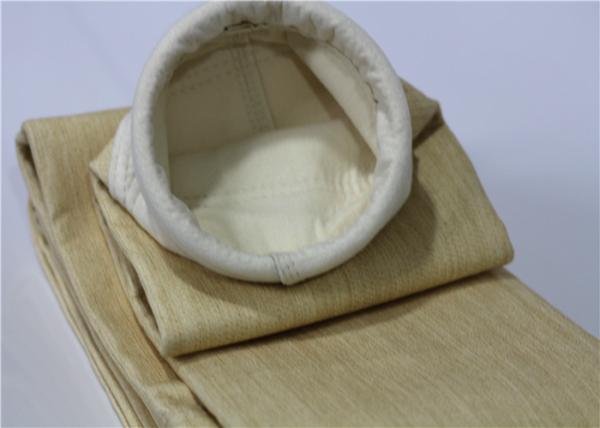

Dust Removal Aramid Filter Bag For Metal Fabrication Customized Size With Aramid Scrim
Dust Removal Aramid Filter Bag For Metal Fabrication Customized Size With Aramid Scrim
Specifications
Brand Name :
Rootsfilter
Model Number :
001
Place of Origin :
shanghai
MOQ :
>100
Price :
3USD
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
5-7work days
Size :
Custiomized
Name :
Dust collector filter bags
Shape :
Round
Material Of Bag :
aramid
Usage :
Dust Filter
Description

Dust Removal Aramid Filter Bag For Metal Fabrication Customized Size With Aramid Scrim

The aramid filter media common treatment:

Singed, calendered, heat set or water&oil repellent, anti-static, PTFE membrane/coating

The diameter of the filter bag is: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm etc.

Any length is available. Special size is customize.

The aramid bag filter process Method: sewing or welded

Material:

aramid needle punched felt are made from the aramid yarn, after needle punched we can get the common 450gsm, 500gsm, 550gsm aramid filter cloth.

There are two kinds of aramid filter cloth used in dust filtration:

1. aramid fiber with aramid scrim

2. Aramid fiber with fiberglass scrim

Feature :
1. Aramid has excellent heat resistance, flame resistance, high temperature dimensional stability.
2. Particularly conspicuous is its excellent mechanical properties, strength and polyester similar to wear resistance, good resistance to bending and has excellent characteristics of textile processing, can acupuncture into spun lace non-woven fabric.
3. Aramid fiber at different temperatures, strong retention rates at different times, including in the dry heat temperature of 250 C for 1000 hours under the conditions of its strength retention up to 60%.
4. Aramid fiber as a functional fiber in high temperature dust filtration industry has an irreplaceable status, but because of the characteristics of molecular structure determines, it has some defects. Such as poor resistance to strong acid, high temperature hydrolysis is poor, not in the coal-fired boilers, waste incineration and other industry applications.

Name
Aramid Dust Collector Filter Bag
Usage
Dust collection
Material Of Bag
Aramid
Length Tensile Strength (N5*20CM)
≥800
Cross Tensile Strength (N5*20CM)
≥1000
Length Elogation at break
<25%
Cross Elogation at break
<35%
Continue Temp.
210 degrees
Peak Temp.
230 degrees
Weight
550g/㎡
Thickness
2.0-2.8 mm
Air Permeability
250 (L/㎡/S)
After Treatment/Finish
PTFE macreate, Calendering, Singed, Heat-set, Oil and water proof

Dust Removal Aramid Filter Bag For Metal Fabrication Customized Size With Aramid ScrimDust Removal Aramid Filter Bag For Metal Fabrication Customized Size With Aramid ScrimDust Removal Aramid Filter Bag For Metal Fabrication Customized Size With Aramid Scrim
