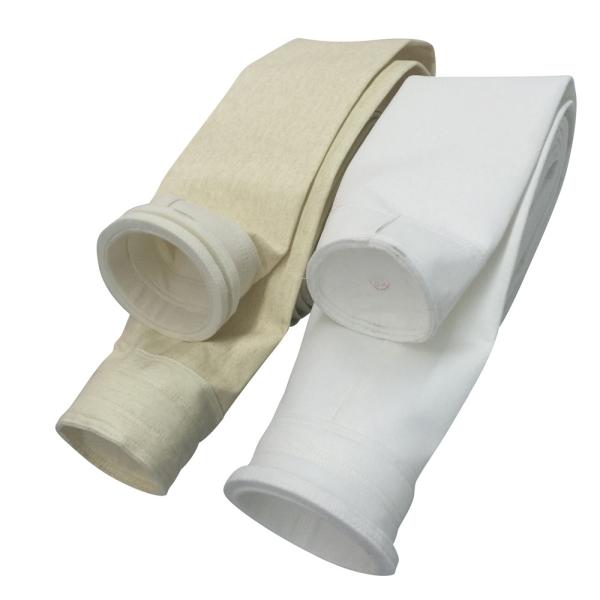

Biodiesel Polyester Felt Filter Bag 1.8-1.9mm Thickness For Mine Steel Industries
Biodiesel Polyester Felt Filter Bag 1.8-1.9mm Thickness For Mine Steel Industries
Specifications
Brand Name :
Rootsfilter
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
USD3-10 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000PCS per Month
Delivery Time :
10 days
Packaging Details :
export carton
Material :
Polyester
Function :
dust filter
Industry :
Mine, cement, steel, food, pharmacy
Keywords :
Polyester filter bag
Description

Biodiesel Polyester Felt Filter Bag 1.8-1.9mm Thickness For Mine Steel Industries

Material:

polyester filter bag are made of 100% filament polyester fiber,after needle punched, singed heat set calender for the raw polyester filter felt material, then polyester filter felt can be sewn into polyester filter bags.

Feature:

1. Operation temperature 150 Deg c,

2. the max surge is 150 deg c.

3. good anti-acid, good anti-alkali ,good hydrolysis stability

4. Mean Air Permeability: 10-15 m3/m2/min@12.7mmH2O

5. It is the cheapest filter media in the bag filter filtration field. Polyester bag filter is the most popular items in the bag house system.

Available Finish: singed,calendar,heat set PTFE membrane,W/O,anti-static treatment.

Advantage:

Polyester bag filters Breaking Elongation is less than 20% for MD and 40% for CMD,low dry shrinkage, can work well in the 130 deg C. the material is cheaper than other material, so widely used in a lot of bag house system.

Specification :

Construction Needle felt
Fibre Composition Polyester
Scrim Composition Polyester
Felt Area Weight 500g/m2(±5%)
Thickness 1.8-1.9mm
Mean Air Permeability 10-15 m3/m2/min@12.7mmH2O
Breaking Strength-MD(warp) 900 N / 5cm
Breaking Strength-CMD(weft) 1300 N / 5cm
Breaking Elongation( N/5cm)-MD(warp) 20%
Breaking Elongation( N/5cm)-CMD(weft) 40%
Dry Shrinkage MD(130℃warp) ＜1.5 %
Dry Shrinkage CMD(130℃weft) ＜1.5 %
Operating Temperatures <130 deg C
Recommended Maximum Continuous 130 deg C
Recommended Maximum Surge 150 deg C
Finish Heat set, singed, calendared W/O Repellent

Application:

Polyester filter bag widely used in mine, limestone, cement, iron and steel industries,alumina delivery, electrolytic aluminum, non-ferrous metal production, wood processing, food processing and pharmacy industry.
