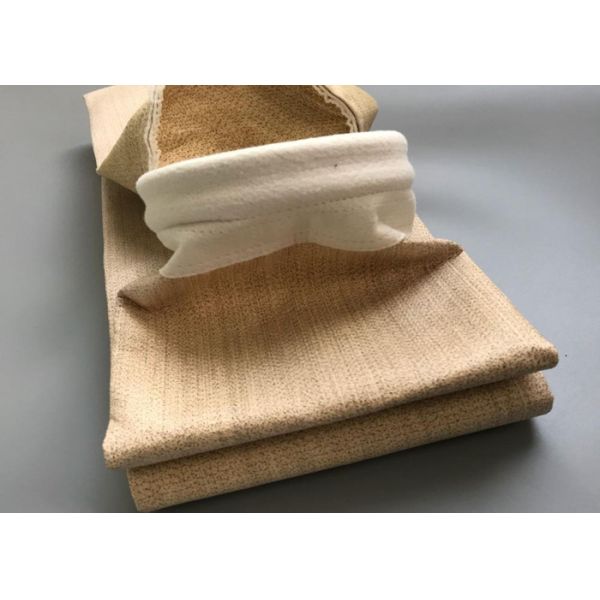

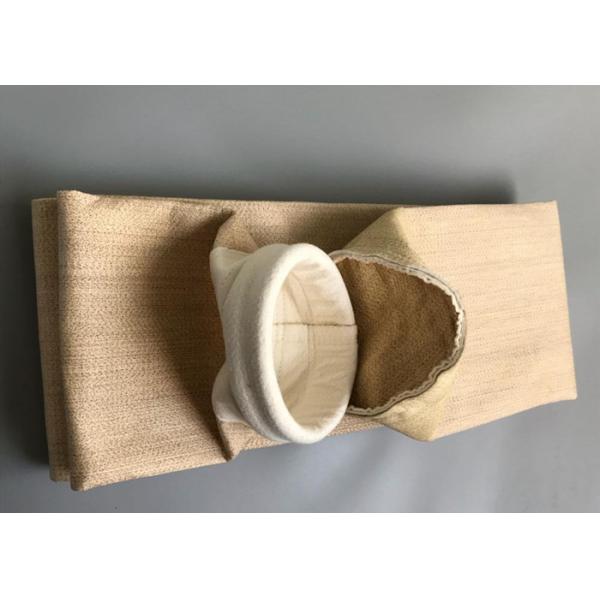

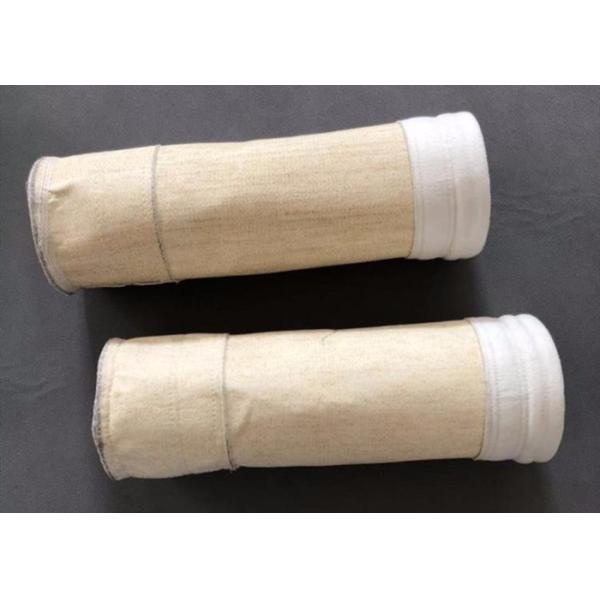

Synthetic Fiber Dust Filtration Bags Aramid Filter Bag High Energy Consumption
Synthetic Fiber Dust Filtration Bags Aramid Filter Bag High Energy Consumption
Specifications
Brand Name :
RUNNINGFILTER
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000000 PCS PER MONTH
Delivery Time :
20-30 DAYS
Packaging Details :
CARTON
PRODUCT :
NOMEX aramid fiber felt dust filter bag for bag filter supplier
Keyword :
aramid filter bag
Efficiency :
99.9%
Medium Material :
Synthetic Fiber
oil repellancy :
available
Breathability :
above 10000g/m2.24h
Description

NOMEX aramid fiber felt dust filter bag for bag filter

Product Application---Industrial products

With the increasingly severe situation of industry environmental protection, industrial enterprises will gradually change the electric dust removal to bag filter. And traditional filter bag’s dust removal principle is when the air with dust go through the filter bag, which rely on to the surface of the filter medium to establish a layer of dust (powder) to effectively filter and only make the gas go through to achieve the purpose of dust removal. The disadvantage is long establishment time of effective filtration, high resistance, low efficiency, incomplete interception, the large loss, the high anti - blow pressure for the filter box, frequent cleaning, high energy consumption and short service life, in addition, equipment covers an large area.

4M-ePTFE membrane bag filter makes dust not to penetrate into the filter medium, just surface filtration. Regardless of the thickness of dust, all of them deposit onto the surface of the filter medium. The membrane aperture itself intercept dust, no first filtration period, and the beginning is the effective filtration, nearly 100 percent of the time is in filtering.

4M-ePTFE membrane bag filter is with excellent performance in high filtration efficiency, low voltage, high throughput, easy cleaning, long service life and other advantages.

material NOMEX aramid fiber felt dust filter bag
weight g/m2 500
thickness mm 2.0

air permeability

 L/m2.s 120-200
Breakingload N/5cm weft ≥1200
warp ≥1000
Elongation at break % weft ≤50
warp ≤55
250℃Heat shrinkage rate ℃ weft <1
warp <1
Working temperature ℃ weft 204
warp 250

Synthetic Fiber Dust Filtration Bags Aramid Filter Bag High Energy ConsumptionSynthetic Fiber Dust Filtration Bags Aramid Filter Bag High Energy ConsumptionSynthetic Fiber Dust Filtration Bags Aramid Filter Bag High Energy Consumption
