5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
Specifications
Brand Name :
Air
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T(Negotiation)
Supply Ability :
around 30000pcs per year
Delivery Time :
around 2 weeks upon receipt signed&stamped PO
Packaging Details :
Inner poly bag,Outer cartons
Model Number :
Dust filter cartridge
configuration :
Galvanized stainless metal
material :
Polyester
use in :
various industry
InnerCore :
Galvanized Mesh
description :
3 lugs flange industrial filter cartridge
Efficiency :
99.99%
Name :
Antistatic Dust Air Filter Cartridge
Description

Antistatic polyester PTFE 3 lugs flange industrial washable filter cartridge ​ Description​:

Main technical parameters

Dust filter cartridge

1.The quality and performance can be guaranteed as original elements.
2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filterpaper , stainless steel sinter fiber and stainless wire mesh.
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR seals.

Dust filter cartridge

Details of 3 lugs flange industrial filter cartridge

description 3 lugs flange industrial filter cartridge
material Polyester
sample available
pass ISO/TS 16949:2009
service OEM/ODM
min quantity 50 pieces
business type manufacturer, factory
delivery time 7-20 days after we received your prepay

Dust filter cartridge

FILTER MEDIA
DESCRIPTION SPECIFICATION CHEMICAL PROPERTIES
Name Material Post-processing

Weight

gram/m2

Thickness

mm

Max Temp.

°C

 Perme-ability

Oil water

proof

Water

proof

 Acid Alkali
CL-001 20%polyester+80%cellulose 130 0.64 80 ** * * * *
CL-002 15%polyester+85%cellulose 124 0.7 80 ** * * * *
CL-007 100%cellulose 118 0.79 80 ** - - * *
CL-019NWFR 15%polyester+85%cellulose Nano flame retardant 137 0.79 80 *** *** * * *
CL-020NW 15%polyester+85%cellulose Nano 132 0.84 80 *** ** * * *
CL-203 100%polyester 240 0.75 120 ** ** * * *
CL-210 100%polyester 260 0.61 120 ** ** * ** *
CL-212CD 100%polyester Anti-static 260 0.61 120 ** ** - ** *
CL-213FR 100%polyester Flame-retardant 260 0.61 120 ** ** ** ** *
CL-2154FS 100%polyester Oil,water proof 260 0.61 120 *** *** *** ** *
CL-303 100%polyester PTFE Membrane 240 0.60 120 * - *** ** **
CL-306 100%polyester PTFE Membrane 260 0.68 120 * - *** ** **
CL-309FR 100%polyester PTFE Membrane FR 260 0.62 120 * - *** ** **
CL-311 100%polyester PTFE Membrane 270 0.83 135 * - *** ** **
CL-313CD 100%polyester Anti-static PTFE Membrane 260 1.01 135 * - *** ** **
CL-316 100%polyester New PTFE Membrane 135 0.58 110 * - *** ** **

- No, * Ordinary, ** Good, *** Very good

Performance Description:

1. Suitable pleat width design for easy-cleaning
2. High filtration efficiency
3. Flame retardant processing
4. Top open ,bottom open /bottom close with deflating bolt hole
5. Galvanized stainless metal configuration
6. Rubber seal

Performance Description

  • Electric aluminum or polyester blending with carbon fiber on the surface of material

permeability of the filter material not easy to be destroyed

  • Avoid the explode occurred by electrostatic spark
  • Avoid the adhesion occurred by electrostatic

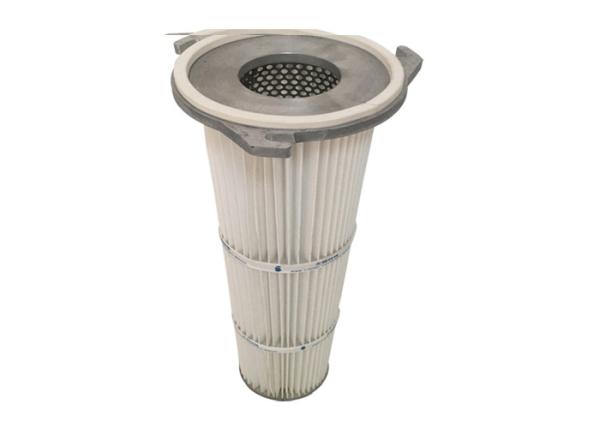

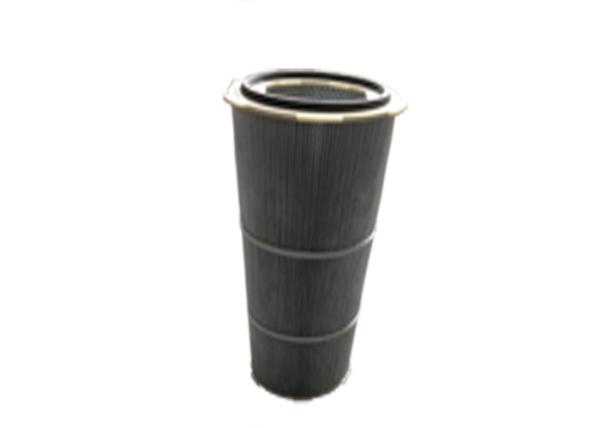

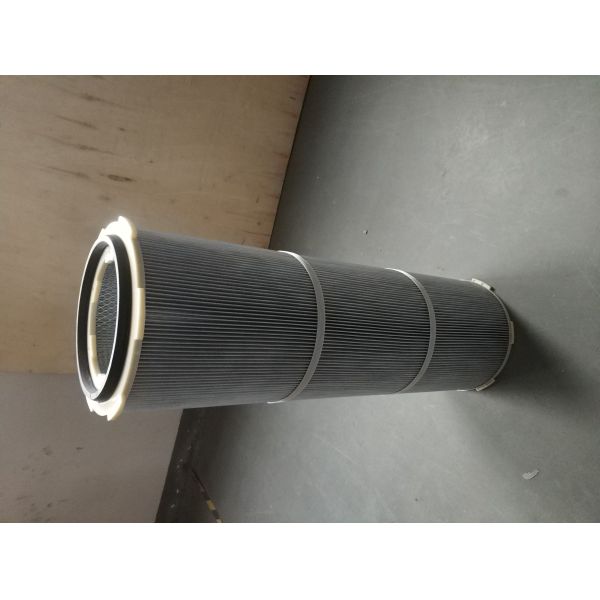

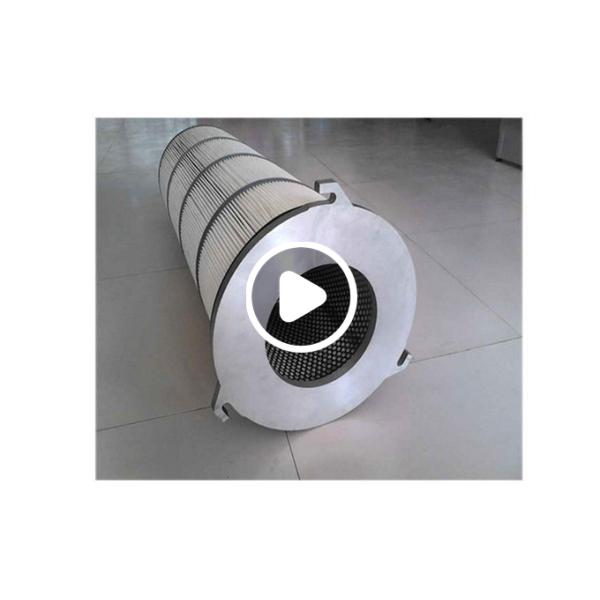

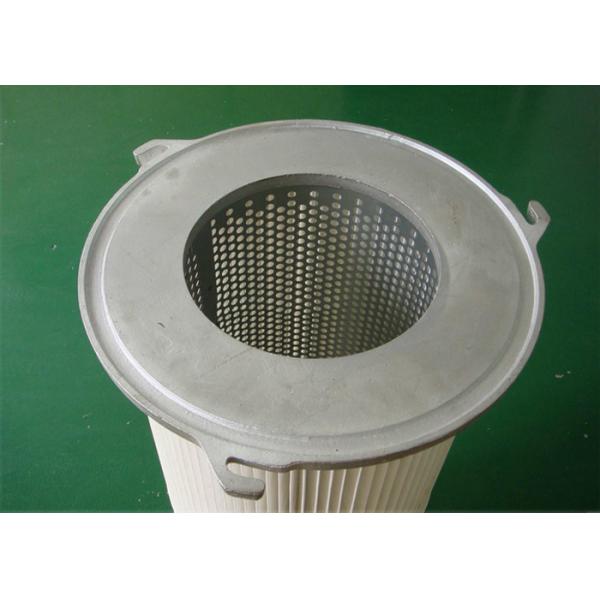

antistatic polyester PTFE 3 lugs flange industrial washable filter cartridge show:

5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge

5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge

5um,0.5um,2um,0.2um,Antistatic Dust Air Filter Cartridge , 3 Lugs Flange Washable Filter Air Cartridge
