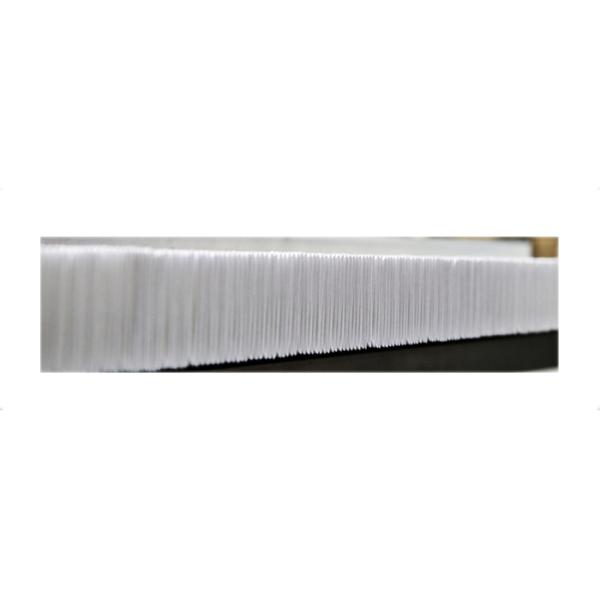

5um,0.5um,2um,0.2um PU Cement Dust Filter Cartridge Top Installation Baghouse
5um,0.5um,2um,0.2um PU Cement Dust Filter Cartridge Top Installation Baghouse
5um,0.5um,2um,0.2um PU Cement Dust Filter Cartridge Top Installation Baghouse
5um,0.5um,2um,0.2um PU Cement Dust Filter Cartridge Top Installation Baghouse
5um,0.5um,2um,0.2um PU Cement Dust Filter Cartridge Top Installation Baghouse
5um,0.5um,2um,0.2um PU Cement Dust Filter Cartridge Top Installation Baghouse
Specifications
Brand Name :
AIR
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T(negotiation)
Supply Ability :
around 30000pcs per year
Delivery Time :
around 2 weeks upon receipt signed&stamped PO
Packaging Details :
Inner poly bag,Outer cartons
Model Number :
Dust filter cartridge
Filtration Grade :
Medium Filter
Medium Material :
Synthetic Fiber
description :
cement pleated air filter
Filtration media :
polyester
top color :
Yellow
Top Caps media :
PU
fit for :
high dust concentration plant
Install method :
Top loaded
Special ability :
3 times filtration area than filter bag
configuration :
Galvanized stainless metal
Description


PU Cement Cartridge Filter Top installation baghouse cement pleated air filter ​​ description:

Product Features For PU Cement Cartridge Filter :

1) Imported PTFE coated polyester filter media, small pore size, high filtration precision.

2) Smooth filter media surface,not sticky.

3) Excellent chemical resistance.

4) Electro-galvanized / stainless steel cover, central skeleton.

5) Professional sealing obturator elastic neoprene.

6) Operating temperature ≤ 135 ° C.

Application field

High dust concentration plants such as cement, power factory, casting.

Details of Cement Pleated Air Filter

description Cement Pleated Air Filter
material polyester
sample available
pass ISO/TS 16949:2009
service OEM/ODM
min quantity 50 pieces
business type manufacturer, factory
delivery time 7-20 days after we received your prepay

Application field

High dust concentration plants such as cement, power factory, casting.

Model Cover Material Tube Sheet H.D (mm) Top Cover O.D (mm) Bottom Cover O.D (mm) Filtration Surface/1m Filtration Surface/2m
AR 127 Galvanized metal φ127 φ146 φ114 1.1m2 2.3m2
AR 133 Galvanized metal φ133 φ152 φ121 1.5m2 3.0m2
AR 159 Galvanized metal φ159 φ178 φ144 2.1m2 4.1m2
AR 162 Galvanized metal φ162 φ178 φ146 2.3m2 4.6m2

Performance Description

  • Narrow Pleat width, easy for self-clean
  • High filtration efficiency
  • 3 times filtration area than filter bag

  • Top open, bottom close

  • Rubber seal (can choose on the one side of the end cap)

  • Various ways of flange installation

  • Galvanized stainless metal configuration

Selection of Material

  • Polyester (white, black for choose)
  • Polyester + Flame Retardant
  • Polyester + oil, water resistant
  • Polyester + Antistatic
  • Polyester + PTFE membrane

Performance Description

  • Narrow Pleat width, easy for self-clean
  • High filtration efficiency
  • 3 times filtration area than filter bag

  • Top open, bottom close

  • Rubber seal (can choose on the one side of the end cap)

  • Various ways of flange installation

  • Galvanized stainless metal configuration

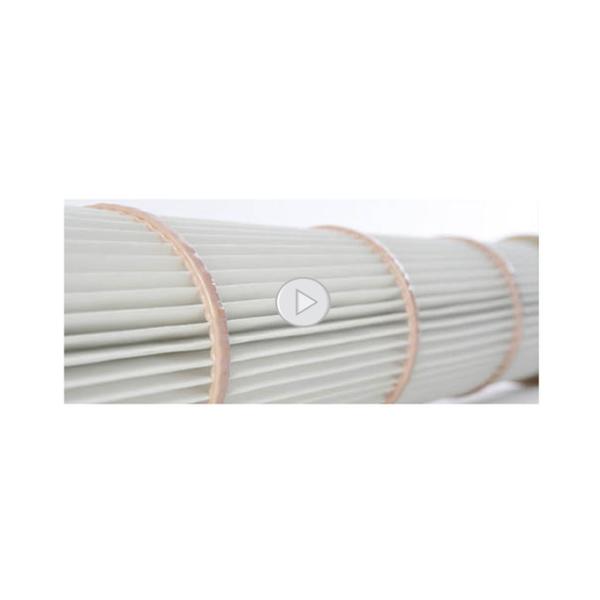

PU Cement Cartridge Filter Top installation baghouse cement pleated air filter Cylinder long pluse jet filter cartridge show:

Dust filter cartridge

https://www.youtube.com/watch?v=aUaBDyIUt10

https://youtu.be/IV795B_37vU
