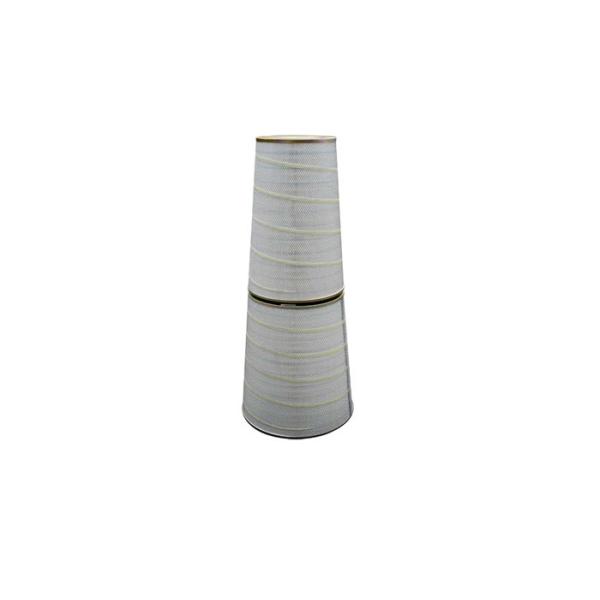

5um,0.5um,0.2um,2um，High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose
5um,0.5um,0.2um,2um，High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose
5um,0.5um,0.2um,2um，High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose
5um,0.5um,0.2um,2um，High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose
5um,0.5um,0.2um,2um，High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose
5um,0.5um,0.2um,2um，High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose
Specifications
Brand Name :
AIR
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T(negotiation)
Supply Ability :
around 30000pcs per year
Delivery Time :
around 2 weeks upon receipt signed&stamped PO
Packaging Details :
Inner poly bag,Outer cartons
Model Number :
Gas Turbine filters
Cartridge Filter :
Celluose/Synthetic/Synthetic Fiber
Filtration Grade :
Medium Filter
Application :
Industry
Type :
Cartridge Filter
Top/Bottom :
Galvanized Mesh
Inner Core :
Galvanized Mesh
Description

High Precision Accuracy Gas Turbine Filters Galvanized Mesh Elluose ​Description:

Filter element for Gas turbine
Gas turbine air filter cartridge
Application field:
The air intake filtration of gas turbines of:
GE. SOLAR, SIEMENS,ALSTOM ,MITSUBISHI

1. Filter material

Description Specification Chemical properties
Name Material Post-processing Weigth g/m2 Thickness
(mm)		 Max. Temp.
ºC		 Permeability Oil water proof Water proof Acid Alkali
AR-001 20%polyester+80%celluse 130 0.64 80 ★ ★ ★ ★ ★
AR-002 15%polyester+85%celluse 124 0.7 80 ★ ★ ★ ★ ★
AR-007 100%celluse 118 0.79 80 ★★★ -- -- ★ ★
AR-010 90%polyester+10%celluse 113 0.43 80 ★ ★ ★★ ★ ★★
AR-019NWFR 15%polyester+85%celluse Nano flame retardant 137 0.79 80 ★ ★★ ★★ ★ ★
AR-020NW 15%polyester+85%celluse Nano 132 0.84 80 ★ ★★ ★★ ★ ★
AR-214 100%polyester 170 0.54 110 ★★ ★ ★ ★ ★★
AR-316 100%polyester New type of coated 135 0.58 110 ★★ -- ★★★ ★★ ★★

-- NO, ★Ordinary, ★★Good , ★★★ Very good

Why should you choose AIR Gas turbine air filter element?
1.We are the distributer of HV and Ahlstrom . ensure our filter material is excellence
2.We have own filter cartridge testing machine, ensure our quality is excellence
3.We have the most advanced pleat machine. ensure the delivery time is fast .

4.We have lots experience in oversea gas turbine project, we can supply the AFTL Test Report.
5.We have ISO 9001:2008
6. Our Products have exported to more than 30 countries.

2. Performance description:
A. Wider pleat width
B. High filtration efficiency 99.99% at 0.5 M
C. H&V material: H&V nanoweb material(USA)
D. Large air flow
E. Top open, bottom open/ bottom close with deflating bolt hole
F. Galvanized stainless metal configuration
G. Rubber seal
H. We choose the three grade filtration fi the application field needs, and choose showerproof stepped flashing

3. Application field:
The air intake filtration of gas turbines of ge, solar, Siemens, alstom, misubishi

4. Specification:

Model shape OD.(mm) ID.(mm) H:(mm) Filter area(m2)
324559 Cylinder 324 213 559 18
324660 Cylinder 324 213 660 21
324700 Cylinder 324 213 700 22.3
324735 Cylinder 324 213 735 23.5
408875 Cylinder 408 293 875 33.2
408559 Cylinder 408 293 559 21.6
324865(Twist lock) Cylinder 324 213 865 25
445660 Cone 445-324 330-213 660 23.3
408711 Cone 408-324 293-213 711 23
408925(Twist lock) Cone 408-324 293-213 925 34.3
324668F(Tenkay type) Cylinder Top cap:
406*362		 213 668 22
324875F(Tenkay type) Cylinder Top cap:
406*362		 213 875 28
Customized is avalable
