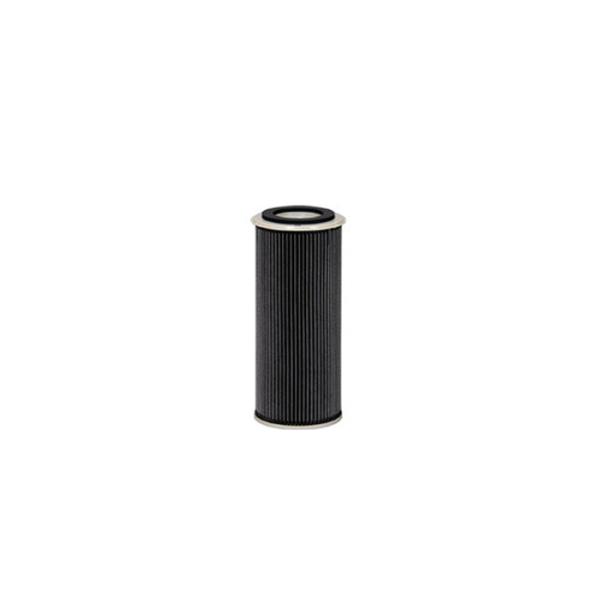

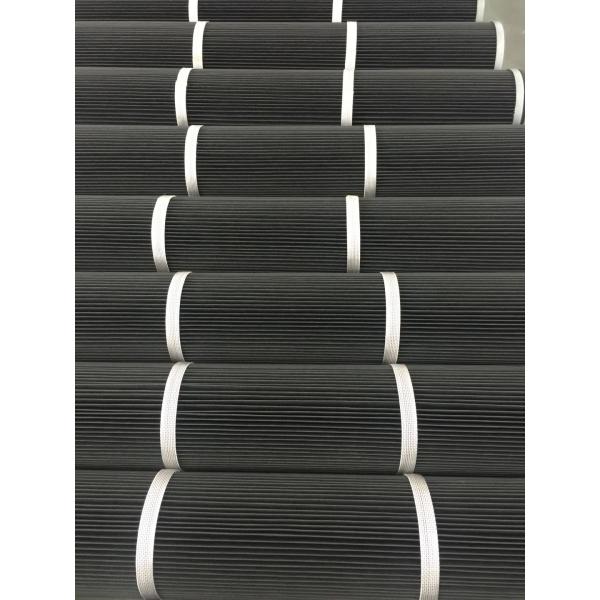

5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
Specifications
Brand Name :
AIR
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T(negotiation)
Supply Ability :
around 30000pcs per year
Delivery Time :
around 2 weeks upon receipt signed&stamped PO
Packaging Details :
Inner poly bag,Outer cartons
Filtration Grade :
Medium Filter
Medium Material :
polyester
Excellent ability :
water washable
Filtration media :
PET+PTFE
configuration :
Galvanized stainless metal
Install method :
Top loaded/Side loading
seal :
Rubber seal
Filter area :
2.25㎡
Name :
Spunbond Black Polyester Air Filter Cartridge
Description

SpunBond Air Filter Cartridge Black polyester filter cartridge Air conditioning filter,smoking cabin industrial filter​ description:

Dust filter cartridge

It uses high-quality filter material production with high filtration efficiency,reasonable structure design,easy to clean dust.it could separate of the dust in the air,reduce environmental pollution.it has high collection efficiency,easy cleaning,large filtration area and so on merits.

Applications

1. the gas turbine

2. compressor, sandblasting

3. tobacco wiring

4. fly ash, floating ash.

Media Types are :
1. Polyester
2. Antistatic Polyester (Carbon, Steel)
3. Polyphenylene Sulphide
4. Aramid
5. PTFE

Filter Specification:

Cartridge model Outer diameter mm Inner diameter mm Height mm
3266 324 213 660
3566 352 241 660
3275 324 213 750
3288 324 213 880
3290 324 213 915
Dust filter cartridge

Model

Shape

OD(mm)

ID(mm)

Length(mm)

Filter Area(M2)
32600

Cylindrical

324

213

600(22)

18
213
3266

Cylindrical

324

213

660(26")

21
32700

Cylindrical

324

213

700(27.5")

22.3
32865

Cylindrical

324

213

865(34)

25
330-213
408F

Cylindrical

408

213

735(29")

23.5
408F

Cylindrical

408

293

559(22")

21.6
32865

Cylindrical

324

213

865(34")

25
445C

Conical

445-324

330-213

660(26")

23.3
324C

Conical

324-250

213-134

660(26")

16.4
408C

Conical

408-324

293-213

711(28")

23
408C

Conical

408-324

293-213

925(36.6")

34.3
406/324

Cylindrical

324Top cap size406×362

213

668(26.3)

22
213
406/324

Cylindrical

324Top cap size406×362

213

875(34.5")

28

Features:

(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.

(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.

(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

(4) Excellent resistance to chemical erosion.

(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Product Descriptions:

Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.

Dust filter cartridge

SpunBond Air Filter Cartridge Black polyester filter cartridge Air conditioning filter,smoking cabin industrial filter Show:

5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing5um,0.5um,0.2um,2um，Spunbond Black Polyester Air Filter Cartridge For Air conditioning Rubber sealing
