Portable Glass Bead Blasting Equipment Car Part Steel Work Piece​ Dustless
Portable Glass Bead Blasting Equipment Car Part Steel Work Piece​ Dustless
Specifications
Brand Name :
Stelle
Model Number :
STR-9060
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20 UNITS PER MONTH
Delivery Time :
15 DAYS AGAINST PAYMENT
Packaging Details :
BY STRONG WOODEN CASE
Name :
glass sandblasting
Type :
High Pressure
Function :
Cabinet
Dust Removal :
Dustless
Application :
Motors / Auto
DUST REMOVAL MOTOR :
1.5KW 380V
Description

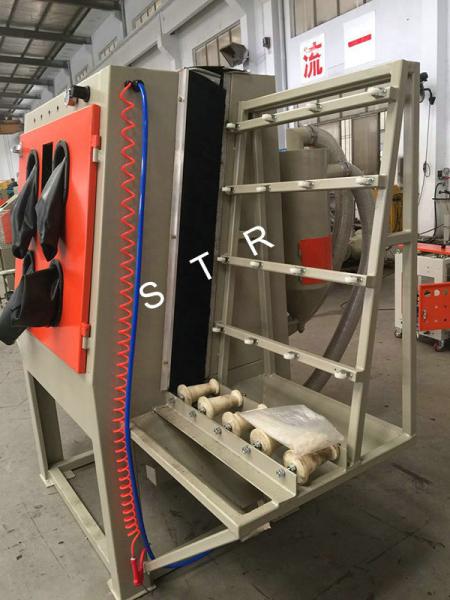

Cabinet Dustless Glass Bead Sandblasting Machine Surface Preparation Car Part / Steel Work-piece​

Sandblasting Machine Product Introduction

A blast cabinet is essentially a closed-loop system that allows the operator to blast the part and recycle the abrasive. It usually consists of four components; the containment (cabinet), the abrasive blasting system, the abrasive recycling the system, and the dust collection.

The operator blasts the workpiece from the outside of the cabinet by placing his arms in gloves attached to glove holes on the cabinet, viewing the part through a view window, turning the blast on and off using a foot pedal or treadle.

Automated blast cabinets are also used to process large quantities of the same component and may incorporate multiple blast nozzles and a part conveyance system. There are two systems typically used in a blast cabinet: siphon and pressure

Technical Features:

MACHINE TYPE STR-BL Glass edge blasting machine
MACHINE SIZE(mm) 3380 ×1200× 2080
DUST REMOVAL SYSTEM 800× 800× 2480
DUST REMOVAL MOTOR 1.5KW 380V
SPEED MOTOR 1.5KW 380V
GUN WORKING PRESSURE 0 .28 - 0.7Mpa
OPTIMAL WORKING PRESSURE 0.4 - 0.6 Mpa
FLOW OF EACH GUN 0.8 - 1.2m3/min
INNER DIAMETER OF EXTERNAL GAS SOURCE ￠13mm
ABRASIVE 46-220#
SPRAY GUN 4
DUST REMOVAL METHOD Bag-type dust removal system uses 16 bags of dust removal


Product Features:

Electroplating, spraying process, improve adhesion; All kinds of mold, casting parts, metal, nonmetal surface heat treatment, to oxide skin, to the residue, rust, oil, refurbished; All ceramic products, glass products, plastic products, light act the effect!
