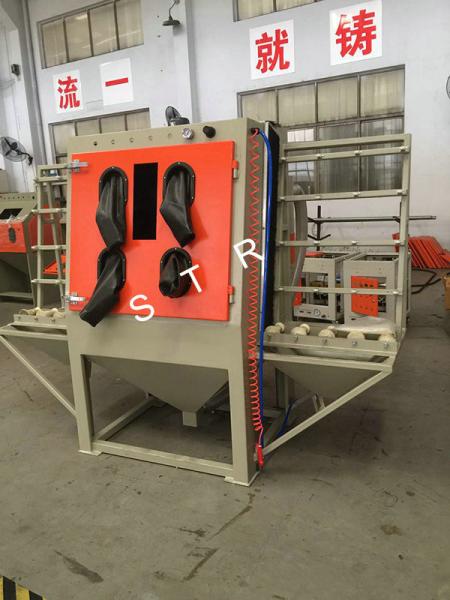

Manual Glass Bead Blasting Equipment / High Pressure Suction Blast Cabinet
Manual Glass Bead Blasting Equipment / High Pressure Suction Blast Cabinet
Specifications
Brand Name :
Stelle
Model Number :
STR-9060
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20 UNITS PER MONTH
Delivery Time :
15 DAYS AGAINST PAYMENT
Packaging Details :
BY STRONG WOODEN CASE
Name :
glass sandblasting
Type :
High Pressure
Function :
Cabinet
Dust Removal :
Dustless
Application :
Motors / Auto
WORK ROOM SIZE (mm) :
900×700×2000
Description

Cabinet Dustless Glass Bead Blasting Machine Surface Preparation Computer Shell / Foot Valve

Sandblasting Machine Product Introduction

We have a wide range of products to meet the requirements of various standards of sandblasting machines and can also be customized to your size.STR- 6050, STR-9060, STR-9080, STR-1010, STR-1212, STR-1515.

(The number represents the size of the work area in millimeters, such as STR-1010 the work area 1000mm*1000mm*800mm 39” L X 39” H X 31” H )The detail of STR-9060 Suction Sandblasting machine

Technical Features:

MODEL STR-1200 GLASS SANDBLASTING MACHINE
WORK ROOM SIZE (mm) 900×700×2000
MACHINE SIZE(mm) 3000×1000×2300
OUTER CONVEYING SIZE (mm) 1800×600×100(2pcs)
COMPRESSED AIR SOURCE 2-8bar(kg/cm2)
SEPARATOR MOTO E 220V 50HZ 550W
SEPARATOR AIR VOLUME 8.5m3/min
LIGHTING 220V 30W
MACHINE WEIGHT 400 kg


Product Features:

A blast cabinet is essentially a closed loop system that allows the operator to blast the part and recycle the abrasive. It usually consists of four components; the containment (cabinet), the abrasive blasting system, the abrasive recycling the system, and the dust collection.

The operator blasts the workpiece from the outside of the cabinet by placing his arms in gloves attached to glove holes on the cabinet, viewing the part through a view window, turning the blast on and off using a foot pedal or treadle.

Automated blast cabinets are also used to process large quantities of the same component and may incorporate multiple blast nozzles and a part conveyance system. There are two systems typically used in a blast cabinet: siphon and pressure
