Specifications
Brand Name :
DongXing
Model Number :
VTJZ/DS454/DC454
Certification :
CCS/BV/GL/NK/LR/DNV/RIAA/NK
Place of Origin :
Jingjiang City, Jiangsu, China
MOQ :
1set
Price :
USD 50-4500
Payment Terms :
T/T
Supply Ability :
50set/days
Delivery Time :
10-15days
Packaging Details :
Export wooden box
Nominal diameter :
50A-1000A
Material :
Q235B/Q345R/SUS304/SUS316
Pressure drop :
≤1KP
Attenuation :
25db
Flange standard :
CB/T3766
Description

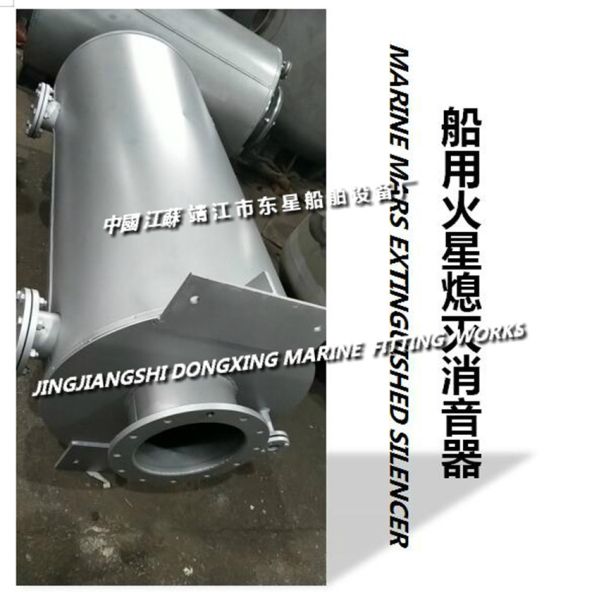

Marine Mars extinguished silencer
MARINE MARS EXTINGUISHED SILENCER

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

Signature Sign:
Jingjiang Dongxing Shipbuilding Equipment Factory
JINGJIANGSHI DONGXING MARINE FITTING WORKS

Our company has won the CCS factory type approval certificate:

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

According to the applicable scope of the marine Mars extinguishing muffler, the applicable places can be divided into:

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

Marine DS454 dry Mars extinguish muffler, marine VTJZ dry Mars extinguish muffler
DS454 wet Mars extinguisher

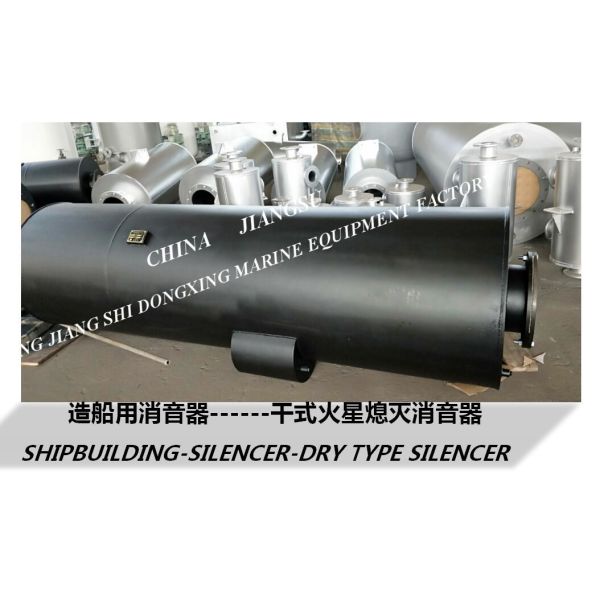

GHX1 diesel engine dry Mars extinguish muffler, FHX boiler Mars extinguisher
Diesel exhaust muffler, Mars extinguish muffler
Emergency generator Mars extinguish muffler, mooring generator auxiliary machine Mars extinguish muffler
Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler
Host dry Mars extinguish muffler, auxiliary machine dry Mars extinguish muffler

"Jingjiang Dongxing Ship Equipment Factory" hereby introduces you briefly this ship Mars extinguishing silencer:

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

About the Marine Silencer - Mars Extinguisher - Mars Extinguish the Muffler Effect:

The marine Mars extinguishing silencer is an auxiliary device for the ship exhaust system pipeline, and is mainly used in the ship generator, the ship main engine and the exhaust pipe of the ship boiler.


The marine Mars extinguishing silencer is an auxiliary device for the exhaust pipe of generators, main engines, oil-fired boilers, fire-fighting diesel engines, etc. in the ship. Its function is to eliminate the noise of the exhaust gas when the equipment is working, and to extinguish the residual exhaust pipe. Spark in

Technology Agreement
Technical Agreement


Marine silencer - the main technical parameters of the marine Mars extinguishing muffler: Main technical data


1. Oil boiler Mars extinguish silencer OFB.Eexhaust gas silencer with spark arrester

Model model : VTJZ-300

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler
Diameter diameter: 300mm
Quantity quantity: 1 set / ship set / ship
Back pressure Pressure drop: ≤1KPa
Attenuation of noise attenuation: 25dB
Flange standard flange standard: CB/T3766
Matching flanges are available. Provide companion flange
Material: carbon steel material of body is carbon steel
The outer layer is insulated, and the material of the heat insulating layer is aluminum silicate, which is coated with galvanized iron. Thermal insulation surface temperature
Do not exceed 60 °C.
Outsourcing thermal barrier, thermal barrier material for aluminum silicate, again in galvanized iron leather cover. The surface temperature thermal barrier no more than 60 °C.

2. Main power machine Mars extinguish silencer Au..Eexhaust gas silencer with spark arrester

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

Model model : VTJZ-150
Diameter diameter: 150mm
Quantity quantity: 3 sets / ship set / ship
Back pressure Pressure drop: ≤1KPa
Attenuation of noise attenuation: 25dB
Flange standard flange standard: CB/T3766
Matching flanges are available. Provide companion flange
Material: carbon steel material of body is carbon steel
The outer layer is insulated, and the material of the heat insulating layer is aluminum silicate, which is coated with galvanized iron. Thermal insulation surface temperature
Do not exceed 60 °C.
Outsourcing thermal barrier, thermal barrier material for aluminum silicate, again in galvanized iron leather cover. The surface temperature thermal barrier no more than 60 °C.


3. Parked power generation machine Mars extinguish silencer Au Eexhaust gas silencer with spark arrester

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler
Model model : VTJZ-125
Diameter diameter: 125mm
Quantity quantity: 1 set / ship set / ship
Back pressure Pressure drop: ≤1KPa
Attenuation of noise attenuation: 25dB
Flange standard flange standard: CB/T3766
Matching flanges are available. Provide companion flange
Material: carbon steel material of body is carbon steel
The outer layer is insulated, and the material of the heat insulating layer is aluminum silicate, which is coated with galvanized iron. Thermal insulation surface temperature
Do not exceed 60 °C.
Outsourcing thermal barrier, thermal barrier material for aluminum silicate, again in galvanized iron leather cover. The surface temperature thermal barrier no more than 60 °C.

4. Emergency generator Mars extinguish silencer EM’CY diesel generator exhaust silencer

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

Model model : VTJZ-100
Diameter diameter: 100mm
Quantity quantity: 1 set / ship set / ship
Back pressure Pressure drop: ≤1KPa
Attenuation of noise attenuation: 25dB
Flange standard flange standard: CB/T3766
Matching flanges are available. Provide companion flange
Material: carbon steel material of body is carbon steel
The outer layer is insulated, and the material of the heat insulating layer is aluminum silicate, which is coated with galvanized iron. Thermal insulation surface temperature
Do not exceed 60 °C.
Outsourcing thermal barrier, thermal barrier material for aluminum silicate, again in galvanized iron leather cover. The surface temperature thermal barrier no more than 60 °C.

5. Diesel dry Mars extinguish muffler Diesel dry Mars exhaust silencer

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler

Model model : VTJZ-600

VTJZ-150Main generator auxiliary machine Mars extinguish muffler, fuel boiler Mars extinguish muffler
Diameter diameter: 600mm
Quantity quantity: 1 set / ship set / ship
Back pressure Pressure drop: ≤1KPa
Attenuation of noise attenuation: 25dB
Flange standard flange standard: CB/T3766
Matching flanges are available. Provide companion flange
Material: carbon steel material of body is carbon steel
The outer layer is insulated, and the material of the heat insulating layer is aluminum silicate, which is coated with galvanized iron. Thermal insulation surface temperature
Do not exceed 60 °C.
Outsourcing thermal barrier, thermal barrier material for aluminum silicate, again in galvanized iron leather cover. The surface temperature thermal barrier no more than 60 °C.

2. All products are designed and manufactured according to CCS specifications, and CCS ship inspection certificates are provided.

All products according to the CCS standard design, manufacturing, , Provide shipping abs certificate. CCS , One original and two copies

Third, drawings and materials Drawing and Documents

1. Approved Figure 3 Set / Ship
Approval Drawing 3 sets/ship
2. Working picture 3 sets / boat
Working Drawing 3 sets/ship
3. Completion map 3 sets / boat
Final Drawing 3sets/ship

4. Spare parts and tools. Spare parts and tools
According to CCS specifications and manufacturer standards.
Spare parts, tools and accessories should supply in according to the requirements of CCS or CCS rules and the works standard.

Fourth, the warranty period

Within one year after Party A delivers the ship, Party B is responsible for free repairs due to problems caused by unreasonable design and poor manufacturing quality of Party B.
The guarantee period shall be 12 months after Part A deliver the vessel, during the guarantee period, if any problem arises due to the reason of design and manufacturing quality, Part B shall be responsible for repairing free of charge.

5. This agreement is an attachment to the contract and will take effect at the same time as the contract.

The technical agreement is as the attachment of contract, and become effective after business contract signing.

Sixth, the matter has not been completed, the two sides resolved through friendly negotiations.

The other things not mentioned above should be solved by either part through friendly negotiation.
