160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
Specifications
Brand Name :
Zero Dynamic
Model Number :
YYW Series (160KG-5000KG)
Certification :
ISO 9001
Place of Origin :
Suzhou, Jiangsu Province, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80 Sets/Month
Delivery Time :
20 working days
Packaging Details :
Fumigated Wood Box
Equipment Name :
160-5000kg Universal Joint Drive Balancing Machine for Wind Turbine, Rubber Roller, Centrifugal Fan
Equipment Model :
XH-YYW series 160-5000kg
Drive method :
Universal joint drive
Max workpiece mass (kg) :
160-5000
Minimum attainable residual unbalance (g.mm/kg) :
≤1
Unbalance Reduction Ratio :
≥90%
Max workpiece diameter (mm) :
See the chart below
Distance between the two supports of the workpiece (mm) :
See the chart below
Journal diameter of workpiece support :
See the chart below
AC inverter motor power :
See the chart below
Description

160-5000kg Universal Joint Drive Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan

1. Equipment Description

Zero Dynamic's 160-5000kg Universal Joint Drive Balancing Machine for Wind Turbine, Rubber Roller, Centrifugal Fan is applicable for the balance measurement of various workpieces, such as wind turbines, large motors, water pumps, centrifuges, rubber rollers, internal combustion engines, sieve baskets and other rotating parts where the outer circle cannot be driven by a belt drive or where a high transmission torque is required.

Zero Dynamic's 160-5000kg Universal Joint Drive Balancing Machine for Wind Turbine, Rubber Roller, Centrifugal Fan adopts universal coupling drive, smooth power transmission, fast starting, easy operation, suitable for the outer circle of the rotor can not be used in the circle belt transmission device or require a lot of transmission power. Professionally designed pendulum frame, effective transmission of mechanical force, sturdy and reliable, low vibration resistance, good rigidity. High sensitivity sensor, good linearity, durable and reliable.

Zero Dynamic's 160-5000kg Universal Joint Drive Balancing Machine for Wind Turbine, Rubber Roller, Centrifugal Fan uses an advanced electrical measurement system with a friendly man-machine interface and full functionality. One time calibration, permanent use, allowing very high initial unbalance.

2. Product Parameters:

Model
Technical parameter		 YYW-160 YYW-300 YYW-500 YYW-1000 YYW-2000 YYW-3000 YYW-5000
Max workpiece mass (kg) 160 300 500 1000 2000 3000 5000
Max workpiece diameter (mm) φ1000 φ1200 φ1500 φ1600 φ1600 φ1600 φ2100
Distance between the two supports of the workpiece (mm) Min 60 Min 60 Min 70 Min 70 Min 70 Min 70 Min 320
Journal diameter of workpiece support φ10-φ140 φ20-φ180 φ20-φ180 φ12-φ200 φ15-φ240 with two pairs of roller φ15-φ240 with two pairs of roller φ25-φ180
φ180-φ380
Maximum distance from drive shaft flange to right support centre 1320 1400 1400 2000 2000 2000 2000
Balancing speed (r/min) 325/650/1300 325/650/1300 (Optional stepless speed control) 325/650/1300 (Optional stepless speed control) 225/450/760/1250 (stepless speed control and gearbox drive) 225/450/760/1250 (stepless speed control and gearbox drive) 225/450/760/1250 (stepless speed control and gearbox drive)
Drive shaft torque (N.m) 60 60 60 250 700 700 250/2250
AC inverter motor power 3 4 4 7.5 7.5 15 30
Minimum attainable residual unbalance (g.mm/kg) ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Unbalance Reduction Ratio ≥90% ≥90% ≥90% ≥90% ≥90% ≥90% ≥90%

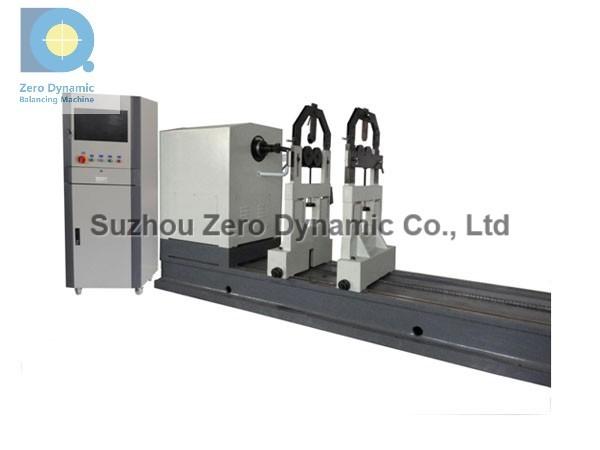

3. Equipment Photo:

160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan

4. Main Features:

4.1 Professional design of the swingframe, effective transfer of mechanical force, solid and reliable, low vibration resistance, good rigidity.
4.2 High sensitivity sensor, good linearity, durable and reliable.
4.3 Once calibrated, permanently used, allowing high initial unbalance.
4.4 Special universal coupling drive for balancing machine, smooth power transmission, quick start, easy to operate.
4.5 Suitable for products where the outer circle cannot be turned with a belt drive or where a large drive power is required.
4.6 advanced electrical measuring system, friendly human-machine interface, complete functions.

5. About Zero Dynamic:

Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging in full automatic balancing equipment and related vibration measurement since 2003.

Over the past 20 years, Zero Dynamic has developed 100+ kinds of equipments. We mainly deals with all kinds of advanced dynamic balancing equipment, field dynamic balancing instrument, vibrometer and motor performance testing machine. High revolving speed and high precision are the key features of our products. We have served 3000+ clients in China and abroad, including many world-famous companies such as LG, Black&Decker, Nidec, Huawei, Foxconn, Midea, Ecovas, Daikin, Lexy.

Now (2024) Zero Dynamic has a factory of 10,000sqm and more than 120 staff including a professional R&D team of 30+ engineers and 20+ debugging and after-sales team.

As an important participant in Chinese dynamic balancing industry, Zero Dynamic continues to increase the development of new products, and is actively developing into the new energy industry as well as aerospace and other high-speed dynamic balancing and intelligent manufacturing fields, aiming to provide customers with reliable and diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
7. Our Clients:
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
8. Our Exhibitions:
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
9. Packaging & Shipping:
160-5000kg Universal Joint Balancing Machine For Wind Turbine, Rubber Roller, Centrifugal Fan
