1. Equipment Description

Zero Dynamic’s Two Station Horizontal Power Tool Outer Rotor, Brushless Motor Outer Rotor Automatic Balancing Machine is a horizontal automatic balancing machine designed for client's rotor workpieces with shafts such as impellers of power tools. The machine can be designed with anti-magnetization program depending on whether the client's products are magnetized or not. The de-weighting of the machine can be decided according to the requirements of the customer's products, whether it is single-plane correction balancing or double-plane correction balancing. The machine is equipped with industrial-grade vacuum cleaner to adsorb the powder generated during balancing and correction to ensure that no cutting fillings is left on the surface of the machine. The equipment can meet the needs of different products for dynamic balance measurement and correction by changing fixtures.

The measuring station of Zero Dynamic’s Two Station Horizontal Power Tool Outer Rotor, Brushless Motor Outer Rotor Automatic Balancing Machine adopts soft bearing structure and high sensitivity vibration sensor, which has the advantages of high vibration resistance and high repeatability. The de-weighting station can select suitable tools according to the material and de-weighting requirements of the customer's products, and the number and position of drilled holes can be set in the dynamic balancing software. The equipment cleans the iron chips through high-power industrial vacuum cleaner, the cutting position is in the closed space, the chips are not easy to fly out; the design of the air flow path has a strong suction force in the cutting position. The vacuum cleaner is flexibly mounted, always close to the rotor during the cutting process.

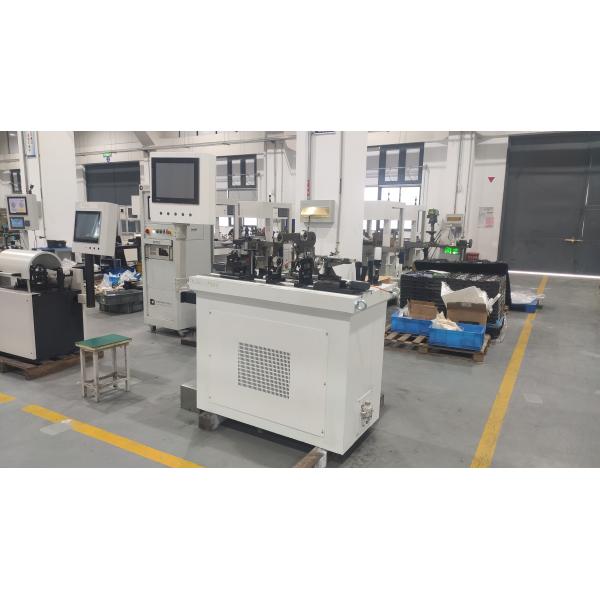

3. Equipment Photo:

4. Main Features:

4.1 Soft bearing measuring structure + high sensitivity acceleration sensor, no lateral sensitivity, lower requirement for position limitation.

4.2 Anti-magnetic solution can be designed and provided depending on whether the customer's product is magnetized or not.

4.3 According to the requirement of the product, it can be decided whether to do single-plane balance or double-plane balance correction.

4.4 The structure of the equipment is reasonably designed and easy to do changeover.

4.5 High-power industrial vacuum cleaner adsorbs the iron chips, and the chips are not easy to fly out.

4.6 Fully independent intellectual property rights, the same series of products have a variety of equipment, can meet the dynamic balancing needs of different specifications of products.

4.7 According to the features of the products, R, V, T, H type cuttuers can be used to correct the unbalance.

6. Why choose Zero Dynamic Balancing Machine?

6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.

6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.

6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.

6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
