Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
Specifications
Brand Name :
Zero Dynamic
Model Number :
XH-4601C
Certification :
ISO 9001
Place of Origin :
Suzhou, Jiangsu Province, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150 Sets/Month
Delivery Time :
20-30 working days after receiving advance payment
Packaging Details :
Fumigated Wood Box
Equipment Name :
Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Desktop Balancing Machine
Equipment Model :
XH-4601C
Supporting max motor mass :
1kg
Max motor diameter :
φ120
Maximum measurement accuracy :
0.03g.mm
Single plane high speed dynamic balance correction :
In conformity with ISO1940 Standard, balance grade G1
Drive method :
self-drive (drive power provided by the client)
Motor speed :
4000-50000rpm
Power supply :
220V 50HZ
Balance correction plane :
Vertical single plane
Motor wiring :
Fast clamping
Motor fixture :
Easy to change
Balance display accuracy :
0.1mg
Operation interface :
Windows simplified Chinese
Equipment external dimension :
420X500X700mm
Equipment Color :
Computer gray
Description

1. Equipment Description

Zero Dynamic’s Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine is suitable for the dynamic balancing of high-speed finished motor assemblies, such as high-speed hair dryer motors, high-speed vacuum cleaner motors, sweeper motors, suction pumps, small fans, cooling fans.

Zero Dynamic’s Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine adopts soft support structure, and the corresponding fixture is designed for customer's products, which makes the clamping stable and firm and has better balancing accuracy and repeatability. The equipment adopts high-precision vibration sensors and customized data acquisition card, which can analyze the spectrum of the collected vibration signals and extract the characteristic information of the unbalance, including vibration amplitude, phase, and so on. Through the processing and analysis of this information, the size and angle of rotor unbalance can be accurately determined.

2. Technical Parameters:
Serial No. Item Details Parameter Range
1 Equipment model XH-8601C
2 Supporting max motor mass 1kg
3 Max motor diameter φ120
4 Maximum measurement accuracy 0.03g.mm
5 Single plane high speed dynamic balance correction In conformity with ISO1940 Standard, balance grade G1
6 Drive method self-drive (drive power provided by the client)
7 Motor speed 4000-50000rpm
8 Power supply 220V 50HZ
9 Balance correction plane Vertical single plane
10 Motor wiring Fast clamping
11 Motor fixture Easy to change
12 Balance display accuracy 0.1mg
13 Operation interface Windows simplified Chinese
14 Equipment external dimension 420X500X700mm
15 Equipment Color Computer gray

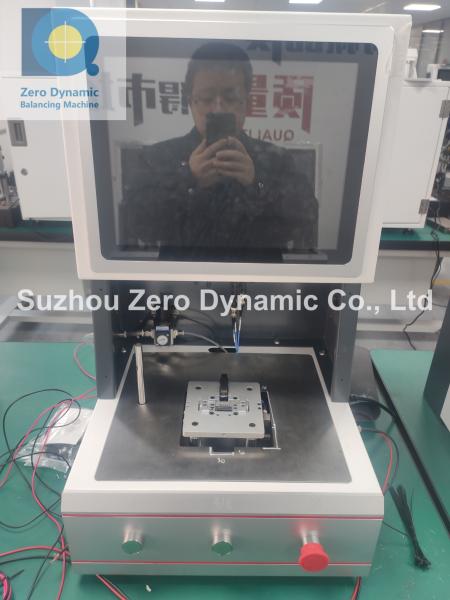

3. Equipment Photo:

Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing MachineDesktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing MachineDesktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing MachineDesktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine


4. Main Features:
4.1 Same motor, same speed, no need to repeat calibration.
4.2 Continuous work, smooth operation of the balancing machine.
4.3 Intuitive balancing interface display, direct digital display of unbalance values and angles.
4.4 Dynamic balancing test at the full speed of the motor.
4.5 Windows operating system, easy to learn.
4.6 Large reduction in motor noise and vibration after dynamic balancing correction.

5. About Zero Dynamic:

Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging in full automatic balancing equipment and related vibration measurement since 2003.

Over the past 20 years, Zero Dynamic has developed 100+ kinds of equipments. We mainly deals with all kinds of advanced dynamic balancing equipment, field dynamic balancing instrument, vibrometer and motor performance testing machine. High revolving speed and high precision are the key features of our products. We have served 3000+ clients in China and abroad, including many world-famous companies such as LG, Black&Decker, Nidec, Huawei, Foxconn, Midea, Ecovas, Daikin, Lexy.

Now (2024) Zero Dynamic has a factory of 10,000sqm and more than 120 staff including a professional R&D team of 30+ engineers and 20+ debugging and after-sales team.

As an important participant in Chinese dynamic balancing industry, Zero Dynamic continues to increase the development of new products, and is actively developing into the new energy industry as well as aerospace and other high-speed dynamic balancing and intelligent manufacturing fields, aiming to provide customers with reliable and diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
7. Our Clients:
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
8. Our Exhibitions:
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
9. Packaging & Shipping:
Desktop Type Vertical Vacuum Cleaner Motor, Sweeper Motor Assembly Balancing Machine
