Specifications
Brand Name :
Zero Dynamic
Model Number :
XH-9600A
Certification :
ISO 9001
Place of Origin :
Suzhou, Jiangsu Province, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150 Sets/Month
Delivery Time :
20-30 working days after receiving advance payment
Packaging Details :
Fumigated Wood Box
Equipment Name :
Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer
Equipment Model :
XH-9600A
Rotor weight :
0.01-0.3kg
Rotor diameter range :
φ6-φ30mm
Supporting rotor span :
20-120mm
Balanced revolving speed range :
6000-10000rpm
Drive method :
DC motor drive
Detection of unbalance angle :
Optical fiber sensor
Power supply :
220 single-phase
Balance function :
Double plane dynamic balance
Operation interface :
Simplified Chinese / English
Measurement system :
XH-8600
Maximum measurement accuracy :
0.05g.mm
Minimum attainable residual unbalance :
≤5mg
Display accuracy :
0.1mg
Equipment dimension :
800*650*1700mm
Description

1. Equipment Description

Zero Dynamic’s Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer is suitable for rough balancing of rotor components for high-speed motors such as high-speed blower motors, high-speed hoover motors etc. (It can reduce the residual unbalance of the product to ≤5mg, which is convenient for the subsequent laser balance correction to further reduce the residual unbalance to the qualified range). This roughing trimming balancing machine is usually used in conjunction with a rotor assembly laser balancing machine to optimize productivity.

Zero Dynamic’s Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer adopts soft bearing balance measurement structure and high sensitivity vibration sensor. Balance correction is done axially by drilling cutter on the rotor balance ring. Workpiece will not be moved during balance measurement and correction, reducing the error caused by multiple clamping. There will be sound and light prompts after qualification judgement to remind the operator and one operator can operate two machines at the same time.

2. Technical Parameters:
Serial No. Item Details Parameter Range
1 Model XH-9600A
2 Rotor weight 0.01-0.3kg
3 Rotor diameter range φ6-φ30mm
4 Supporting rotor span 20-120mm
5 Balanced revolving speed range 6000-10000rpm
6 Drive method DC motor drive
7 Detection of unbalance angle Acceleration sensor
8 Detection of unbalance angle Optical fiber sensor
9 Power supply 220 single-phase
10 Balance function Double plane dynamic balance
11 Operation interface Windows Chinese
12 Measurement system XH-8600
13 Maximum measurement accuracy 0.05g.mm
14 Minimum attainable residual unbalance ≤5mg
15 Display accuracy 0.1mg
16 Equipment dimension 800*650*1700mm

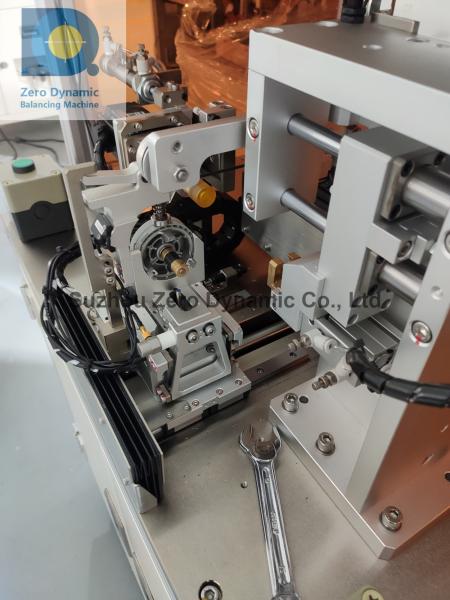

3. Equipment Photo:

Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer

Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer
Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer
Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming BalancerHair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer

4. Main Features:
4.1 During testing and correction process, the measured workpiece does not need to be transported, reducing the error caused by multiple clamping.
4.2 Balance test: double plane balance.
4.3 Data saving, MES uploading function.
4.4 Minimum attainable unbalance ≤5mg.
4.5 Special collector for fillings generated during correction process, reducing filling splash. Noise value ≤70dB

5. About Zero Dynamic:

Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging in full automatic balancing equipment and related vibration measurement since 2003.

Over the past 20 years, Zero Dynamic has developed 100+ kinds of equipments. We mainly deals with all kinds of advanced dynamic balancing equipment, field dynamic balancing instrument, vibrometer and motor performance testing machine. High revolving speed and high precision are the key features of our products. We have served 3000+ clients in China and abroad, including many world-famous companies such as LG, Black&Decker, Nidec, Huawei, Foxconn, Midea, Ecovas, Daikin, Lexy.

Now (2024) Zero Dynamic has a factory of 10,000sqm and more than 120 staff including a professional R&D team of 30+ engineers and 20+ debugging and after-sales team.

As an important participant in Chinese dynamic balancing industry, Zero Dynamic continues to increase the development of new products, and is actively developing into the new energy industry as well as aerospace and other high-speed dynamic balancing and intelligent manufacturing fields, aiming to provide customers with reliable and diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
7. Our Clients:
Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer
8. Our Exhibitions:
Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer
9. Packaging & Shipping:
Hair Dryer Motor Rotor Assembly Automatic Balancing Machine Blow Drier Rough Trimming Balancer
