1. Equipment Description

Zero Dynamic's BLDC Motor Assembly Automatic Balancing machine Vacuum Cleaner Motor, Sweeper Motor Scissor Correction Balancer is applicable for unbalance detection and automatic correction of various DC, AC, BLDC motor assembly such as vacuum cleaner motor, sweeper motor and ventilator motor.

Zero Dynamic's BLDC Motor Assembly Automatic Balancing machine Vacuum Cleaner Motor, Sweeper Motor Scissor Correction Balancer adopts soft bearing dynamic balance test stand which has impler structure and more stable performance. The balancing machine adopts acceleration sensors, no lateral sensitivity, lower limit requirements, making the operation requirements easy and fast. The structure is compact, firm and reliable. Its mechanical model is reasonable, so that the actual unbalance of the rotor can be truly reflected by the support frame and the sensor.

Zero Dynamic's BLDC Motor Assembly Automatic Balancing machine Vacuum Cleaner Motor, Sweeper Motor Scissor Correction Balancer is compatible with balance measurement & automatic correction of motors with different sizes (different motor need to be customized with corresponding fixture). The same product can be produced continuously without the need to re-calibrate.

The changeover is easy, and the operator can change the fixture and re-calibrate the machine independently after quick training.

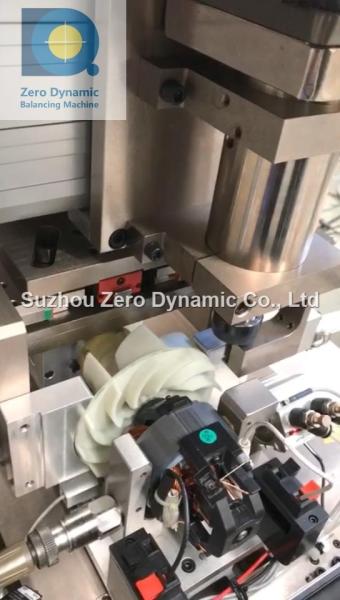

3. Equipment Photo:

4. Main Features:
4.1 Under the production condition, the equipment works continuously, the whole machine runs smoothly, the cycle time meets the requirements and there's no tripping and jamming. The whole equipment control is safe and reliable and the performance meets the requirements.
4.2 Ultra-high accuracy, meeting with G1 accuracy requirement.
4.3 Laser detector is adopted to automatically record the revolving speed. Manual streaking is not required and this saves time and labor.
4.4 Automatic iron fillings collection system (working synchronously with the equipment).
4.5 Simple design of work fixture, easy for changeover, time-saving. Applicable for mass production.
4.6 It adopts Windows system which is easy to learn and can be operated skillfully without much skills.
4.7 Automatic loading and unloading position can be reserved to facilitate the automation renovation of production line (Optional).
4.8 It supports MES data uploading.
4.9 Monitoring of the cutter life.
4.10 Measurement accuracy: ≤0.03g.mm
4.11 The balance display interface is intuitive, and the measurement value and angle are directly displayed digitally on the balancing machine.
4.12 Automatic removing material, automatic retest.
4.13 Maximum revolving speed: ≤45000 rpm (7 blades)

6. Why choose Zero Dynamic Balancing Machine?

6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.

6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.

6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.

6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
