Specifications
Brand Name :
Zero Dynamic
Model Number :
XH-4601
Certification :
ISO 9001
Place of Origin :
Suzhou, Jiangsu Province, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150 Sets/Month
Delivery Time :
20-30 working days after receiving advance payment
Packaging Details :
Fumigated Wood Box
Equipment Name :
Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine
Equipment Model :
XH-4601
Operation system :
Windows 7 Simplified Chinese interface
Balance Grade and component calculation :
Standard
Spectrum analysis function :
FFT
Fan speed range :
1500-30000rpm
Measurement accuracy :
0.03g.mm
Balance display accuracy :
0.1mg
Minimum attainable residual unbalance :
0.2g.mm/kg
Vibration measurement :
Acceleration sensor
Balance test plane :
Single plane balance
Vibration test :
Acceleration sensor（1000MV/G）
DC power supply :
0-30V(adjustable) Optional
Equipment external dimension :
420X500X700 mm
Description

1. Equipment Description
Zero Dynamic's Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine is applicable for dynamic balance correction for heat dissipation fan from 2.5cm to 8cm. The equipment improves product quality by reducing fan unbalance value and making the product run with low vibration and low noise.

Zero Dynamic's Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine adopts Self-developed high-precision spindle (which can effectively eliminate the transmission error of the stator base) , high-precision accelerometer sensor and customized data acquisition card. Together with Zero Dynamic’s self-developed dynamic balance software, the equipment can achieve high accuracy balance measurement (meets ISO1940 G1 standard).

2. Technical Parameters:
Serial No. Item Details Parameter Range
1 Equipment model XH-4601
2 Operation system Windows 7 Simplified Chinese interface
3 Balance Grade and component calculation Standard
4 Spectrum analysis function FFT
5 Fan speed range 1500-30000rpm
6 Measurement accuracy 0.03g.mm
7 Balance display accuracy 0.1mg
8 Minimum attainable residual unbalance 0.2g.mm/kg
9 Vibration measurement Acceleration sensor
10 Balance test plane Single plane balance
11 Vibration test Acceleration sensor(1000MV/G)
12 DC power supply 0-30V(adjustable) Optional
13 Equipment external dimension 420X500X700 mm

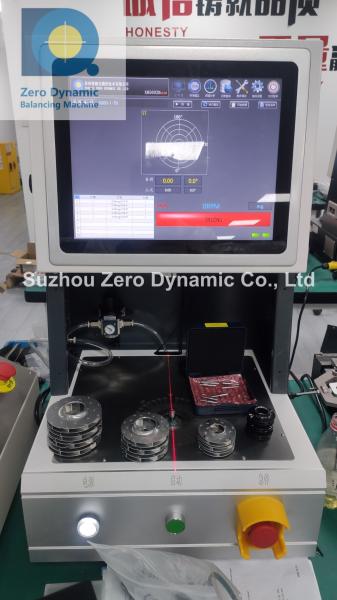

3. Equipment Photo:

Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine
Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine

Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing MachineCar Seat Fan Balancing Machine, High Precision Fan Blade Balancing MachineCar Seat Fan Balancing Machine, High Precision Fan Blade Balancing MachineCar Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine
Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing MachineCar Seat Fan Balancing Machine, High Precision Fan Blade Balancing MachineCar Seat Fan Balancing Machine, High Precision Fan Blade Balancing Machine

4. Main Features:

4.1 The equipment uses Windows operation system, easy for function extension and has data processing, storage, uploading to server, printing functions etc.
4.2 It uses high sensitive optical fiber which ensures system stability and saves changeover time.
4.3 The system displays correction angle and mass.
4.4 Automatic judgement whether the product is eligible or not, easy to manage product quality.
4.5 Chinese operation interface, easy to learn and understand.

5. About Zero Dynamic:

Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging in full automatic balancing equipment and related vibration measurement since 2003.

Over the past 20 years, Zero Dynamic has developed 100+ kinds of equipments. We mainly deals with all kinds of advanced dynamic balancing equipment, field dynamic balancing instrument, vibrometer and motor performance testing machine. High revolving speed and high precision are the key features of our products. We have served 3000+ clients in China and abroad, including many world-famous companies such as LG, Black&Decker, Nidec, Huawei, Foxconn, Midea, Ecovas, Daikin, Lexy.

Now (2024) Zero Dynamic has a factory of 10,000sqm and more than 120 staff including a professional R&D team of 30+ engineers and 20+ debugging and after-sales team.

As an important participant in Chinese dynamic balancing industry, Zero Dynamic continues to increase the development of new products, and is actively developing into the new energy industry as well as aerospace and other high-speed dynamic balancing and intelligent manufacturing fields, aiming to provide customers with reliable and diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
