Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing Machine
Specifications
Brand Name :
Zero Dynamic
Model Number :
XH-ITM series
Certification :
ISO 9001
Place of Origin :
Suzhou, Jiangsu Province, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150 Sets/Month
Delivery Time :
20-30 working days after receiving advance payment
Packaging Details :
Fumigated Wood Box
Equipment Name :
Brushless Motor Vacuum Cleaner Motor Performance Testing Machine
Equipment Model :
XH-ITM series
Voltage Test / the measured parameters :
Ac/dc voltage
Voltage Test / measuring range :
500 V
Voltage Test / resolution :
0.1 V
Voltage Test / precision :
Grade 0.5
Current test / measured parameters :
Ac/dc current
Current test / measuring range :
15A
Current test / resolution :
0.001 A
Current test / precision :
Grade 0.5
Description

1. Equipment Description

Zero Dynamic’s Vacuum Cleaner Motor Performance Testing Machine is applicable to the comprehensive performance test of brushless motor, including temperature, current, voltage, negative pressure and vibration. The quick wiring of two stations and the test are carried out at the same time, which has the characteristics of fast measurement, stable data and high efficiency.

The motor test data of is detected by the sensor of Zero Dynamic’s Vacuum Cleaner Motor Performance Testing Machine, and the upper computer completes the acquisition, storage, calculation and analysis of the data, and generates reports. The equipment adopts computer to collect test data and generate reports, and automatically draws performance curve at the same time. The motor load adopts a new type of magnetic powder brake with high performance and long life, and the load adjustment is stable, reliable and convenient. It can be used for steady state test or fast instantaneous test. Powerful motor test database can store more than one thousand motor historical data for easy access.

2. Technical Parameters:
Serial No. Test Functions Item Details Parameter Range
1 Voltage Test The measured parameters Ac/dc voltage
2 Measuring range 500 V
3 Resolution 0.1 V
4 precision Grade 0.5
5 Current test The measured parameters Ac/dc current
6 Measuring range 15A
7 Resolution 0.001 A
8 precision Grade 0.5
9 Negative pressure test Measuring range -0.1～100MPa
10 Pressure Datum Surface pressure(default), Insulated pressure
11 Precision grade 0.2%FS/0.1%FS
12 overload capacity ≤1.5 times
13 Mechanical vibration 20G(20～5KHz)
14 Compensation temperature －10～70℃
15 Zero temperature drift 0.5%FS(MAX)
16 Sensitivity temperature drift 0.5%FS(MAX)
17 sampling frequency 20 times/s
18 Long term stability ≤0.2%FS/year
19 Vibration test(1-3 channel,optional) sensitivity(20±5℃) 100 mV/g
20 Measuring range(Max) 50 g
21 Maximum lateral sensitivity ≤5 ％
22 Frequency response (±5%) 1 ～5000 Hz
23 Operating temperature range -40～+150 ℃
24 Temperature response According to the temperature curve
25 isolation ＞109 Ω
26 installation M5

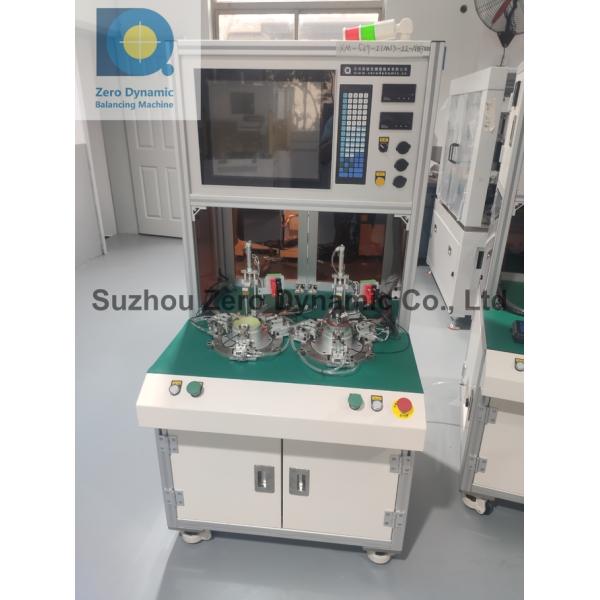

3. Equipment Photo:

Vacuum Cleaner Motor Performance Testing Machine

Vacuum Cleaner Motor Performance Testing MachineVacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing MachineVacuum Cleaner Motor Performance Testing MachineVacuum Cleaner Motor Performance Testing Machine
Vacuum Cleaner Motor Performance Testing MachineVacuum Cleaner Motor Performance Testing Machine


4. Main Features:

4.1 Double station design, higher efficiency.
4.2 The parts adopt the first-line brands, such as Mitsubishi, SMC, Keens, etc., with good durability of parts.
4.3 The equipment has been improved for many times, and the detection precision of each parameter is higher.
4.4 PLC man-machine interface, easier to operate.
4.5 It can detect many parameters of the motor, such as current, voltage, negative pressure, vibration, temperature. New test items can also be added according to customer requirements.

5. About Zero Dynamic:

Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging in full automatic balancing equipment and related vibration measurement since 2003.

Over the past 20 years, Zero Dynamic has developed 100+ kinds of equipments. We mainly deals with all kinds of advanced dynamic balancing equipment, field dynamic balancing instrument, vibrometer and motor performance testing machine. High revolving speed and high precision are the key features of our products. We have served 3000+ clients in China and abroad, including many world-famous companies such as LG, Black&Decker, Nidec, Huawei, Foxconn, Midea, Ecovas, Daikin, Lexy.

Now (2024) Zero Dynamic has a factory of 10,000sqm and more than 120 staff including a professional R&D team of 30+ engineers and 20+ debugging and after-sales team.

As an important participant in Chinese dynamic balancing industry, Zero Dynamic continues to increase the development of new products, and is actively developing into the new energy industry as well as aerospace and other high-speed dynamic balancing and intelligent manufacturing fields, aiming to provide customers with reliable and diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of balancing machines, especially high-speed and high-precision soft-bearing balancing machines and automatic balancing machines. 20+ years of industry experience and 3000+ customer service experience make Zero Dynamic have the top new product development ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC, Keyence, etc. Key parts have patents, high safety protection level, stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff including a professional R&D team of 30+ engineers, 20+ debugging and after-sales team. We always keep 100+ balancing machines in stock, covering most common balancing machine models. Once order has been confirmed, balancing machines in stock can be commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which serve our clients wholeheartedly. For our clients, no matter the equipment is within or beyond the 12-month warranty period, we can provide technical consultance service. Within warranty period, our service team will give a telephone response within 4 hours after receiving client's fault report and reach the machine site within 24hours (within the city) or 72 hours (other cities or provinces). If the fault can't be cleared, our service staff could only leave the site after getting client's approval.
7. Our Clients:
Vacuum Cleaner Motor Performance Testing Machine
8. Our Exhibitions:
Vacuum Cleaner Motor Performance Testing Machine
9. Packaging & Shipping:
Vacuum Cleaner Motor Performance Testing Machine
