Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DS5600B
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Scan Type :
CCD
CPU :
32-bit
Resolution :
≥3mil/0.1mm(PCS90%,Code 39)
Depth of field :
10mm-600mm
Scan Mode :
Manual ,Continuous, Auto Sense, Flashing
Scan angle :
Pitch:±60°，Roll: ±30°，Skew: ±60°
Print Contrast Signal :
≥20%
Dimension :
L180mm * W60mm * H80mm
Storage :
16Mb（over 100,000 Product code）
Battery capacity :
2200mAh
Battery charging time :
About 6.5 hours
Continuous working time :
≥24hours
Description

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Features

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Parameter

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 10mm-600mm
Scan Mode Manual ,Continuous, Auto Sense, Flashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
Pitch:±60°,Roll: ±30°,Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Wireless communication mode Synchronization , storage
Wireless transmission distance 2.4GHz,150meters; Bluetooth 30meters(Open distance)
Storage 16Mb(over 100,000 Product code)
Battery capacity 2200mAh
Battery charging time About 6.5 hours
Continuous working time ≥24hours
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Weight ≈160g(without cable)

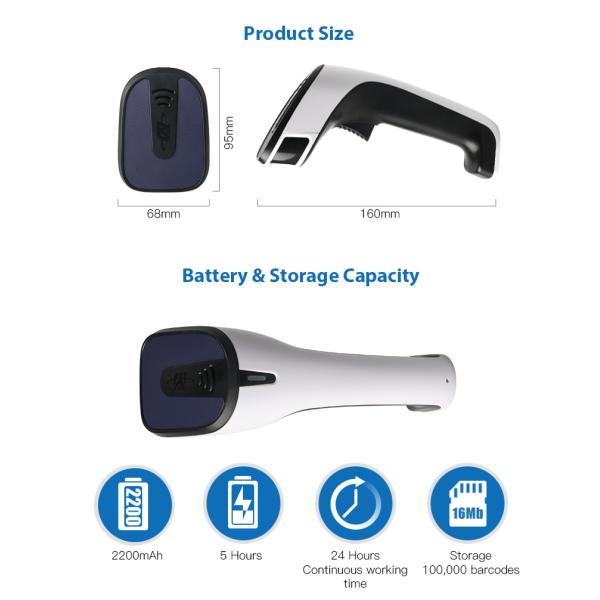

Dimension L180mm * W60mm * H80mm

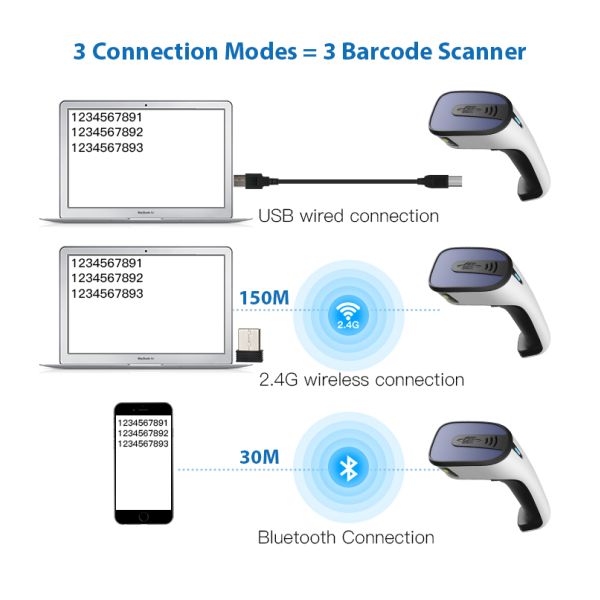

Communication Mode USB,Wireless 2.4G,Wireless Bluetooth 4.2
Interface Type USB
Power Supply DC 5V@100mA(work)

Operating temperature 0℃ to 50℃
Storage temperature -30℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport vibration Test 10H@125RPM

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Application:

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Company profile:


Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B

Wireless 1D Handheld Barcode Scanner Bluetooth 2.4G 3 In 1 2200mAh Battery Capacity DS5600B




FQA:

Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months

Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
