Specifications
Brand Name :
DYscan
Model Number :
DE1420
Certification :
CE ROHS FCC IEC
Place of Origin :
Made in China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, Western Union ,PAYPAL, L/C
Supply Ability :
10000pcs/ month
Delivery Time :
3-15 days
Packaging Details :
1pcs in box
Scan Type :
Linear CCD Sensor
Resolution :
2500
Reading precision :
≥3mil/0.076mm（PCS90%,CODE 39）
Decoding speed :
300times/S
Depth of field :
30mm~700mm
Scan Mode :
Manual, Auto sense, command trigger,continuous,flash
Print Contrast Signal :
≥20%
Weight :
6g
Dimension :
26.5mm L* 20mm W * 11.5mm H
Communication :
USB（USB-KBW，USB-COM，USB-HID），TTL，PS2
Interface Type :
FFC 12PIN Pitch 0.5
Power Supply :
DC 3.3V 60mA(Work）
Description

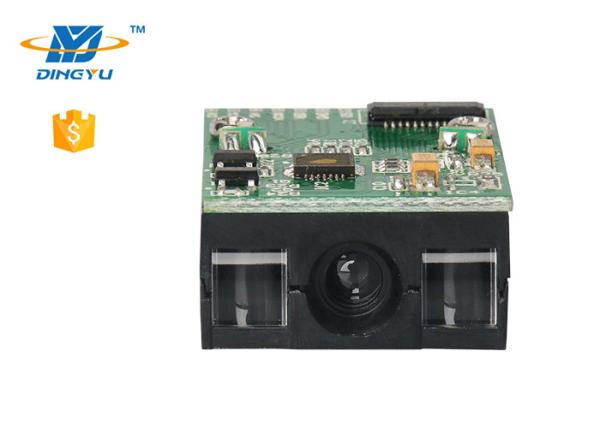

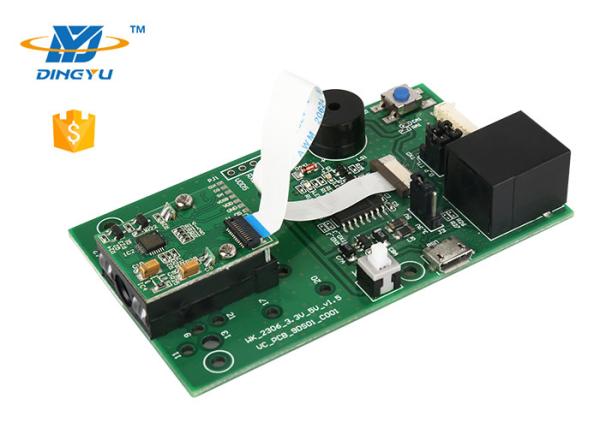

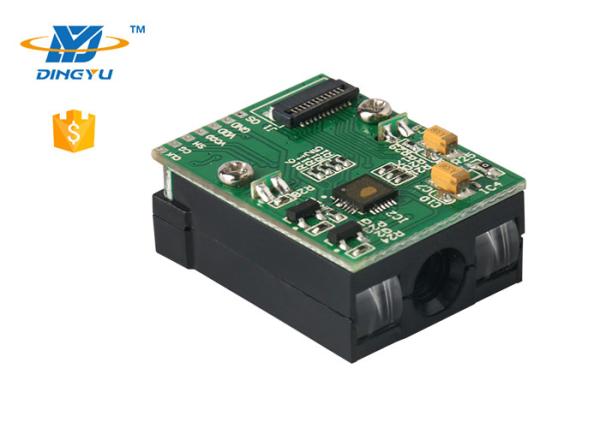

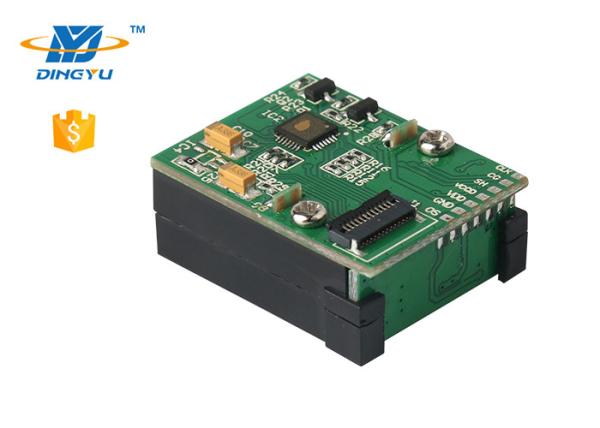

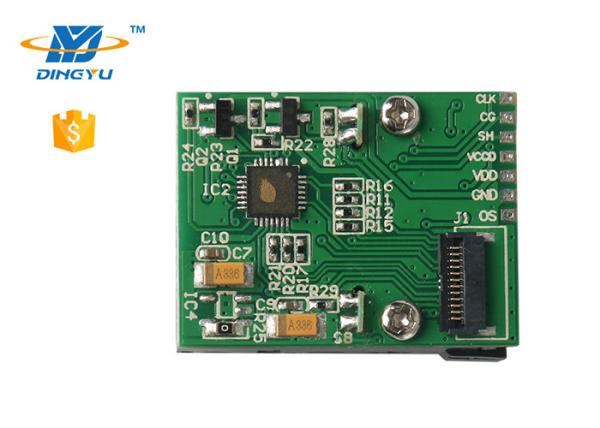

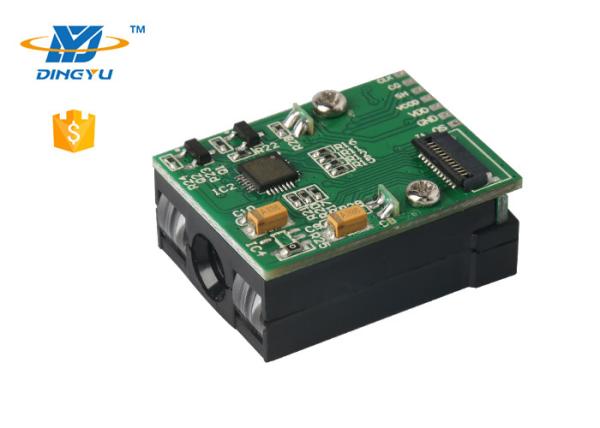

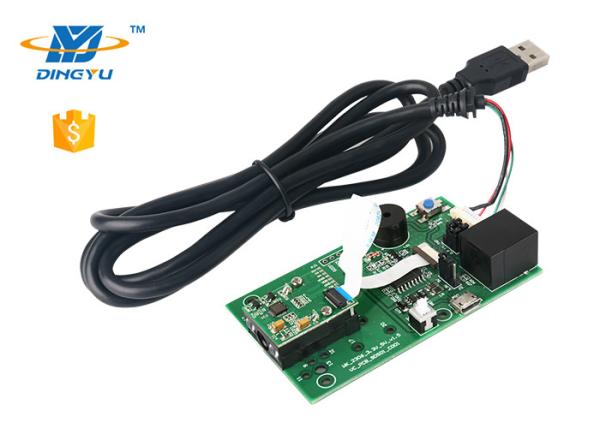

High Quality 1d CCD Embedded Barcode Scanner, Fixed Mounted Barcode Reader, Mini Barcode Reading Module

DE1420 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system.

It can scan universal 1D codes, support USB, TTL, PS2 multiple interfaces, read the paper, goods, screens, other media barcodes.

Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Features

☆ Simple structure, can be used in various types of mechanical equipment.

☆ Read all the mainstream 1D codes in the market easily.

☆ High-performance processor, fast decoding , high-precision reading ability. (3mil)

☆ Simple configuration, support upgrade online.

☆ Support interfaces: USB, TTL, PS2.

☆ Support multiple systems and languages.

☆ Support secondary development and customization.

Details

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

300times/S 1d Linear CCD Barcode Scanner Module For ATM

Performance

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto Sense, Flashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
Pitch:±60°
Roll: ±30°
Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Physical Parameter

Weight <6g
Dimension (L)26.5mm * (W)20.0mm *(H)11.5mm
Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3-5V@50mA(work)

Environmental

Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport 10H@125RPM
