Specifications
Brand Name :
DYscan
Model Number :
DE2090
Certification :
CE ROHS FCC IEC
Place of Origin :
Made in China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, Western Union ,PAYPAL, L/C
Supply Ability :
10000pcs/ month
Delivery Time :
3-15 days
Packaging Details :
1pcs in box
Scan Type :
CMOS
Resolution :
640*480
Reading precision :
≥4mil/0.1mm（PCS90%,CODE 39）
Decoding speed :
35CM/S
Depth of field :
20-500mm
Scan Mode :
Manual, Auto sense, command trigger
Print Contrast Signal :
≥20%
Weight :
3.5g
Dimension :
21.4mm L * 15.8mm W* 11.6mm H
Communication :
USB(USB-KBW、USB-COM），TTL
Interface Type :
FFC 12PIN Pitch 0.5
Power Supply :
DC 3.3V 180mA(Work）
Description

2D Embedded QR Code Reader Vending Machine Mini Barcode Scanner Module QR Code Scanner Module Kiosk

DE2090 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.

Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Features

☆ Mini size, widely used in wireless machine, self-service terminal.

☆ Read all mainstream 1D 2D barcodes in the market easily.

☆ High brightness, dark environment scanning, low power consumption.

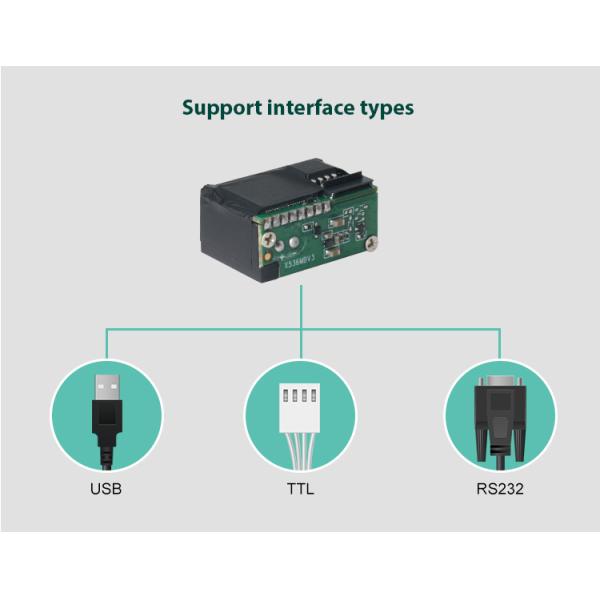

☆ Interface: USB, TTL.

☆ Support multiple systems and languages, secondary development.

Details

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Embedded 180mA 35CM/S CMOS Qr Code Reader Module

Performance

Scan Type CMOS
Light Source White light
CPU 32-bit
Resolution 640*480
Reading precision ≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed 35CM/S
Depth of field 20-500mm
Scan Mode Manual, Auto sense, command trigger
Scan angle Pitch:±60°, Roll: ±360°, Skew: ±55°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.


Physical Parameter

Weight 3.5g
Dimension 21.4mm L * 15.8mm W* 11.6mm H
Communication USB(USB-KBW,USB-COM),TTL
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3V 180mA(Work)

Environmental

Operating -20℃ to 50℃
Storage -40℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
HighTemp. 60℃
LowTemp. -40℃
Transport 10H@125RPM
