Specifications
Brand Name :
DYscan
Model Number :
DE2106
Certification :
CE ROHS FCC IEC
Place of Origin :
Made in China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, Western Union ,PAYPAL, L/C
Supply Ability :
10000pcs/ month
Delivery Time :
3-15 days
Packaging Details :
1pcs in box
Scan Type :
CMOS
Resolution :
640*480
Reading precision :
≥4mil/0.1mm（PCS90%,CODE 39）
Decoding speed :
25CM/S
Depth of field :
20-500mm
Scan Mode :
Manual, Auto sense, command trigger
Print Contrast Signal :
≥25%
Weight :
3.5g
Dimension :
22mm L * 14.6mm W * 11.3mm H
Communication :
USB(USB-KBW、USB-COM），TTL
Interface Type :
FFC 12PIN Pitch 0.5
Power Supply :
DC 3.3V, 150mA(Work)
Description

2D Embedded QR Code Reader Vending Machine Mini Barcode Scanner Module QR Code Scanner Module Kiosk

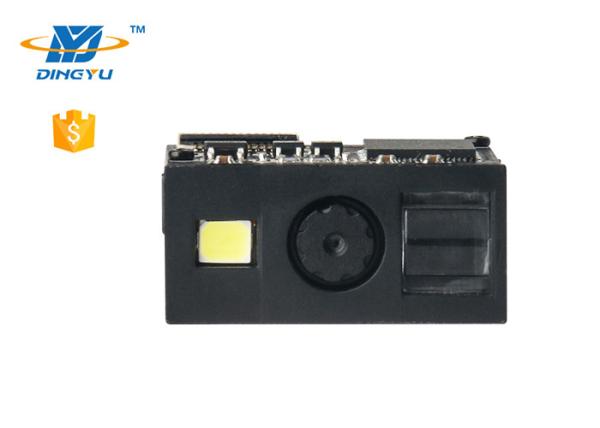

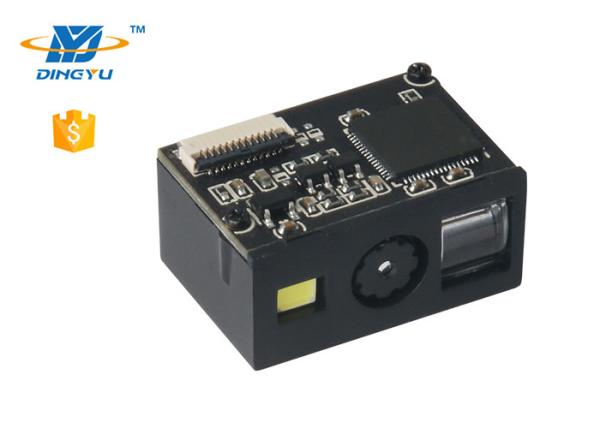

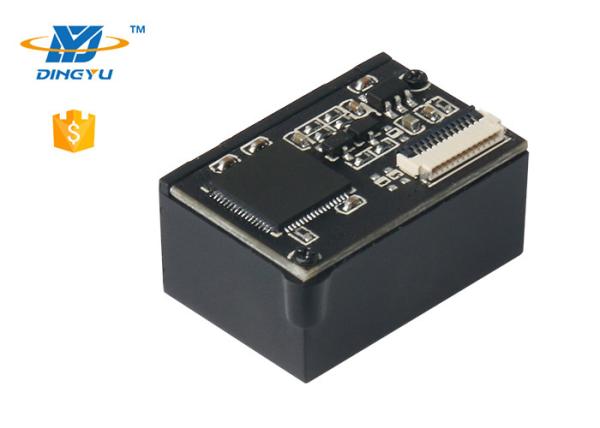

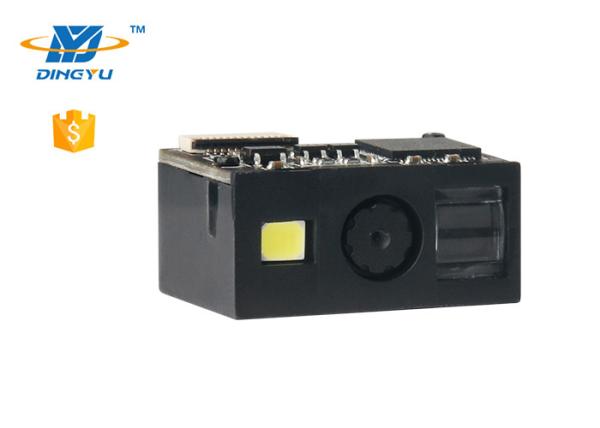

DE2106 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.

Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Features

☆ Mini size, widely used in wireless machine, self-service terminal.

☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)

☆ High brightness, dark environment scanning, low power consumption.

☆ Interface: USB, TTL.

☆ Support multiple systems and languages, secondary development.

Details

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Performance

Scan Type CMOS
Light Source White light
CPU 32-bit
Resolution 640*480
Reading precision ≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed 25CM/S
Scan view 36°*28°
Scan Mode Manual, Auto sense, Continuous
Scan angle Pitch:±50°, Roll: ±360°, Skew: ±50°
Print Contrast Signal ≥25%
Ambient Light Dark environment, indoor natural light
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7),etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc.


Physical Parameter

Weight <3.5 g
Dimension 22mm L * 14.6mm W * 11.3mm H
Communication USB(USB-KBW,USB-COM) , TTL
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3V, 150mA(Work)

Environmental

Operating -20℃ to 50℃
Storage -40℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
HighTemp. 60℃
LowTemp. -40℃
Transport 10H@125RPM

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk


Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk

Usb 150mA 25CM/S Rs232 2d Barcode Scanner Module For Kiosk
