Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DF3100
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Packaging Details :
Neutral Packing
Scan Type :
Linear CCD
Light Source :
Light Source Visible red light, 625±10nm
CPU :
32-bit
Resolution :
2500
Reading precision :
≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed :
300times/s
Weight :
<80g
Dimension :
(L)49.2mm * (W)37.5mm * (H)20.0mm
Communication :
USB(USB-KBW、USB-COM），RS232
Depth of field :
30mm-700mm
Price :
Negotiate
Description

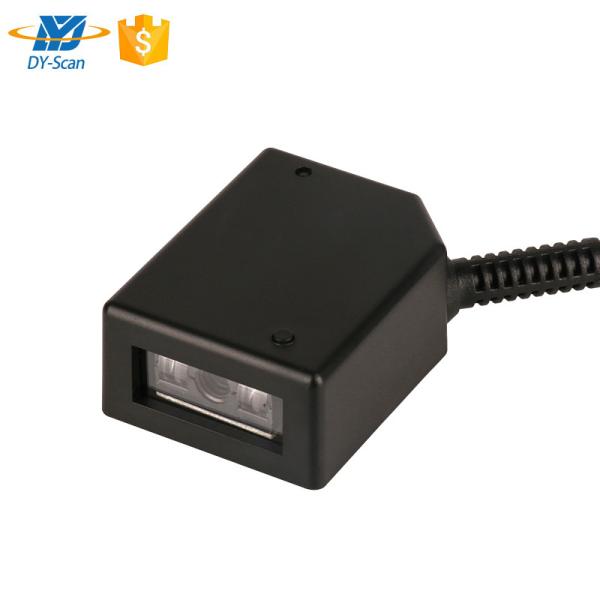

1D Fixed Mount Scanner CCD Image USB Bar Code Scanning Module

DF3100 is a high performance fixed mount scanner with leading CCD image recognition technology and

intelligent image recognition system. It can scan universal 1D codes, read the paper, goods, screens, other

media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used in various

self-service machines, industrial lines, etc.

Features

☆ Simple structure, widely used in self-service selling machines.

☆ Read all mainstream 1D barcodes in the market easily.

☆ High-performance processor, fast decoding. (3mil)

☆ Interface: USB, RS232

☆ Support multiple systems and languages.

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

Performance

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto Sense, Fashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
Pitch:±60°
Roll: ±30°
Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

Physical Parameter

Weight <80g
Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
Communication Mode USB(USB-KBW,USB-COM),RS232
Interface Type USB ,DB9
Power Supply DC 5V@80mA(work)

Environmental

Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport vibration Test 10H@125RPM

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

CCD Image 1D Fixed Mount Scanner , Fast Decoding USB Bar Code Scanning Module

FAQ:

Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
