Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DE2100
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Packaging Details :
Neutral Packing
Scan Type :
Linear CCD
Light Source :
Visible red light, 625±10nm
CPU :
32-bit
Resolution :
2500
Reading precision :
≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed :
300times/s
Depth of field :
30mm-700mm
Weight :
≈16g
Dimension :
(L )32.2mm * (W )44.15mm * (H )20.0mm
Communication Mode :
USB(USB-KBW、USB-COM), TTL, RS232, PS2
Description

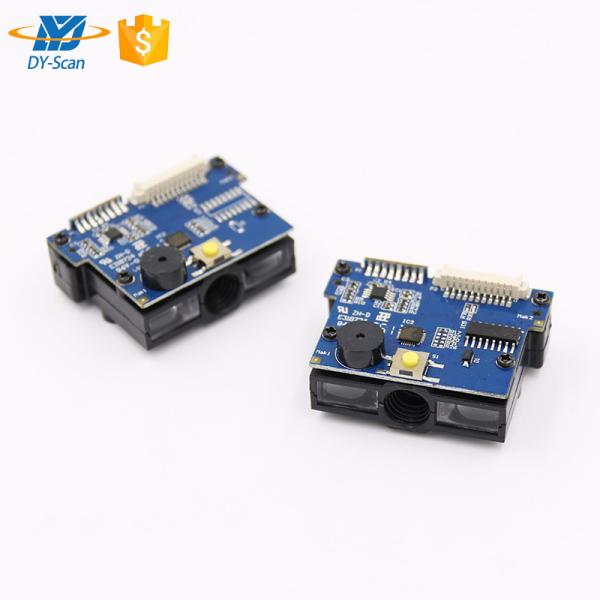

Small Size 1D Barcode Scan Module CCD Barcode Scan Engine Scanner

DE1200 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, support USB,TTL-RS232,PS2 multiple interfaces, read the paper, goods, screens, other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.

Features

☆ Simple structure, widely used in lockers, self-service machines.

☆ Read all mainstream 1D barcodes in the market easily.

☆ High-performance processor, fast decoding. (3mil)

☆ Interface: USB, TTL, RS232, PS2.

☆ Support multiple systems and languages, secondary development, customization.

☆ Widely used in various types of SCM, locker, self-service equipment etc.

Small Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed DurableSmall Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed Durable

Physical Parameter
Weight ≈16g
Dimension (L )32.2mm * (W )44.15mm * (H )20.0mm
Interface Type 11PIN Pitch 1.25
Communication Mode USB(USB-KBW,USB-COM), TTL, RS232, PS2
Power Supply DC 5V@100mA(work)
Performance
Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto Sense, Fashing
Scan angle Roll±30°, Pitch±60°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2 m
Transport vibration Test 10H@125RPM
Depth of field
3MIL 80-120mm (PCS90%,Code 39)
13MIL 30-320mm (PCS90%,Code 39)
20MIL 30-450mm (PCS90%,Code 39)
40MIL 130-700mm (PCS90%,Code 39)
Accessories List
Cable(Optional) USB Cable, used to connect the DE1200 to a host device.
RS232 Cable, used to connect the DE1200 to a host device, with USB supply cable.
PS2 Cable, used to connect the DE1200 to a host device and keyboard input device.
Power Adaptor Output: DC5V 1A, input: AC100~240V 50~60Hz(serial port optional).

Small Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed Durable

Small Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed DurableSmall Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed DurableSmall Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed DurableSmall Size 1D Laser Barcode Scanner Module 300 Times / S Decoding Speed Durable

FAQ:

Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
