Specifications
Brand Name :
DYscan
Model Number :
DE1420
Certification :
CE ROHS FCC
Place of Origin :
Made in China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, Western Union ,PAYPAL
Supply Ability :
10000pcs/ month
Delivery Time :
3-15
Packaging Details :
1pcs in box
Item name :
Raspberry Pi Barcode Scanner Ccd 1D
Resolution :
2500
Reading precision :
≥3mil/0.076mm
Decoding speed :
300times/s
scan type :
CCD
Scan Mode :
Manual ,Continuous, Auto Sense, Flashing
Print Contrast Signal :
≥20%
Weight :
<6g
Dimension :
(L)26.5mm * (W)20.0mm *(H)11.5mm
Communication :
USB(USB-KBW、USB-COM），TTL，PS2
Interface Type :

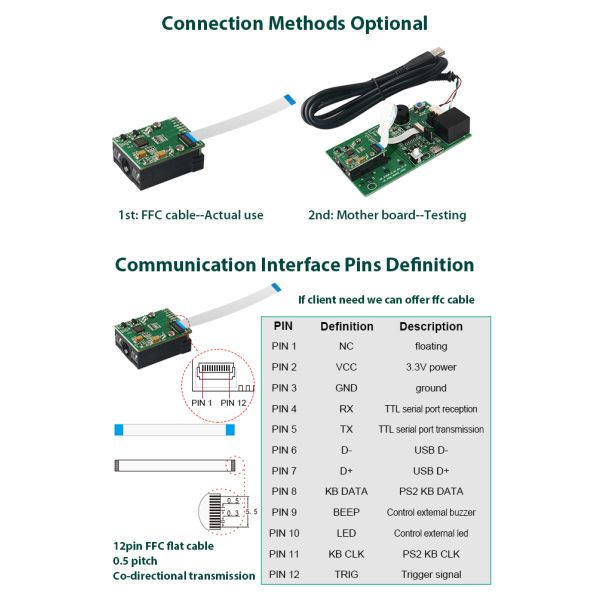

FFC 12PIN Pitch 0.5
Power Supply :
DC3.3-5V@50mA(work）
Description

BARCODE SCANNER MODULE 2D 1D OEM QR CODE SCANNER MODULE

DE1400 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes,

support USB, TTL, PS2 multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Raspberry Pi Bar Code Scanner Module Small Dc3.3-5v

Performance

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto Sense, Flashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
Pitch:±60°
Roll: ±30°
Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Physical Parameter

Weight <6g

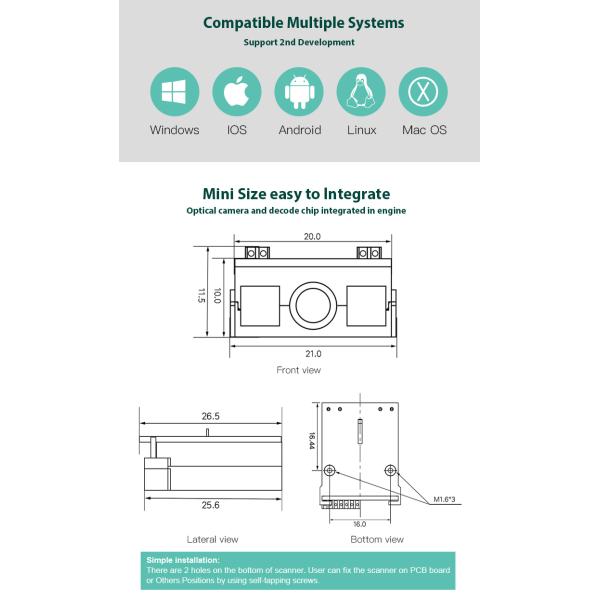

Dimension (L)26.5mm * (W)20.0mm *(H)11.5mm

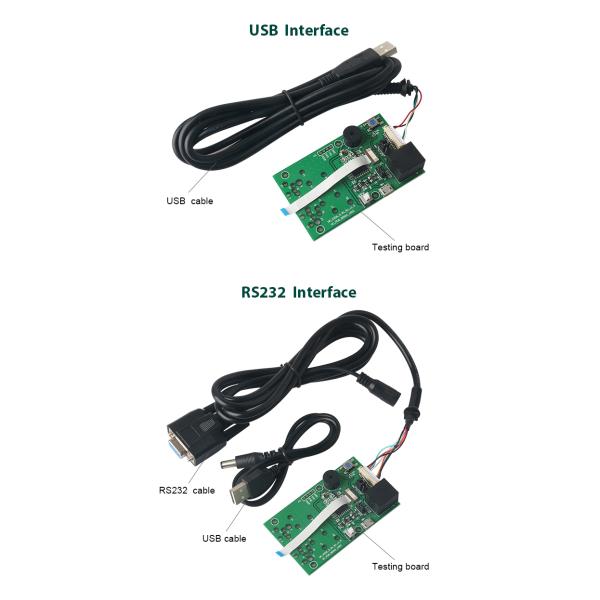

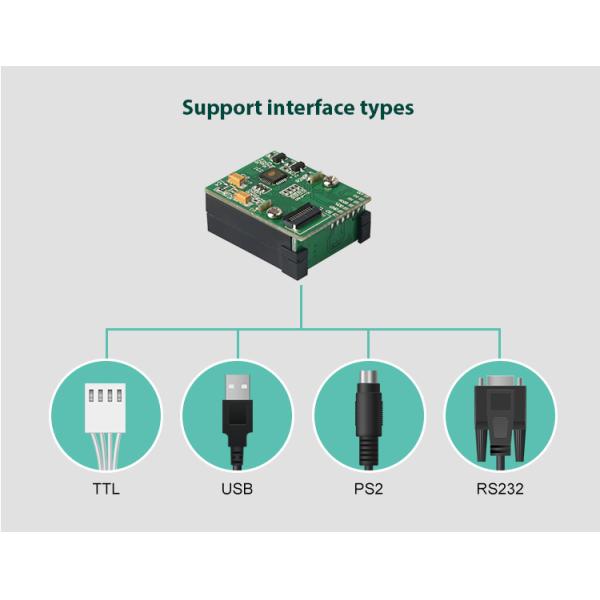

Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3-5V@50mA(work)

Environmental

Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport 10H@125RPM
