Specifications
Brand Name :
DY SCAN
Model Number :
DE2390
Certification :
CE, ROHS, FCC, IEC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Decoding speed :
65cm/s
Depth of field :
50-750mm
Resolution :
3mil
Dimension :
21.5mm L* 15.9mm W * 11.30mm H
Scan mode :
Manual, Auto sense, Continuous
Print Contrast Signal :
≥20%
Camera :
1280*800 pixel
Certificate :
CE ROHS FCC
Description

Production Line long distance scan 1D 2D OCR passport Barcode Scanner Module

Description

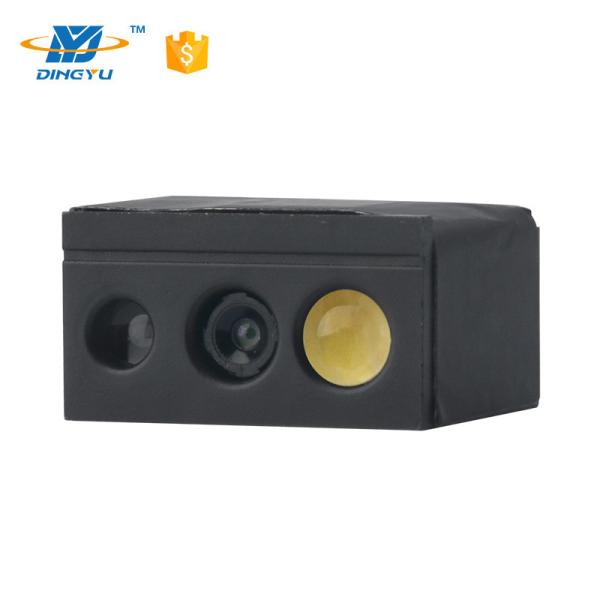

DE2390 is a high-performance embedded 2D barcode module with advanced CMOS image recognition technology.

1 million pixel global camera with excellent reading performance, can easily read paper, screen and other barcodes on the media.

It has OCR function, which support reading some ID and passport characters.

Features

>Small size, with fixed holes, easy to integrate into most equipment.

>Optional multiple interfaces USB-KBW, USB-COM, TTL, HID-POS.

>Good reading performance, support 1D 2D paper screen barcodes.

>Long distance scan, the farthest reading distance can reach more than 2.5 m.

>Support manual, continuous, auto scan mode.

>Support customized functions.

Parameter

Size 21.5mm L* 15.9mm W * 11.30mm H
Interface

USB,USB-com(Need driver) ,TTL

(USB protocol:Full Speed ,USB 2.0)
Light Source Lighting: white LED Aiming: Red LED,wavelength coverage 525nm
CMOS 1280*800 CMOS
CPU ARM32-bit
Resolution ≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field 50mm~750mm ( Different barcode types)
Scan mode Trigger mode,Auto scan, Continuous, Command control
prompting mode LED indicating lamp,buzzer
Reading angle Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater)
visual angle Horizontal 40°× Vertical 27°
Motion tolerance 65cm/s
Power input 3.3V, standby current:95mA,Decoded average current:200mA
Print contrast 20%PCS
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.
operating temperature -20℃ to 50℃
storage temperature -40℃ to 60℃
Humidity 5% to 95%(non-condensing)
Transport vibration test 10H@125RPM
