CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210
Specifications
Brand Name :
DY SCAN
Model Number :
DP8210
Certification :
CE, ROHS, FCC, IEC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
10000pcs/month
Delivery Time :
3-7 days
Packaging Details :
L220mm*W185mm*W115mm
Model :
DP8210
Scan tolerance :
100CM/S
Power supply :
DC5V@280mA(work）
Print contrast signal :
≥20%
Pixel :
640*480
Resolution :
≥5mil/0.127mm（PCS90%,CODE 39）
Print Contrast Signal :
>25%
Depth of field :
0-380mm
Description

Warehouse Store Supermarket USB Wire 1D 2D Desktop Barcode Reader DP8210



Product Description

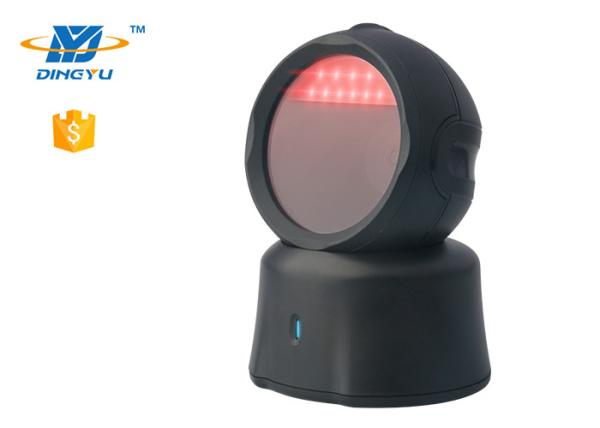

DP8210 is a desktop 2D image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system.

DP8210 scanning platform, with its compact and compact modern design and powerful imaging function, can be used in high-flow retail cashier environment and it’s suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco hotels and grocery stores.


Features

CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210


Application


▅ Mobile payment ▅ Supermarket ▅ Courier


Parameter

Scan type CMOS
Light Source Red light
Pixel 640*480
Resolution ≥5mil/0.127mm(PCS90%,CODE 39)
Decoding speed 100CM/S
Depth of field 0-380mm
Scan Mode Continuous ,Auto sense
Scan angle

Roll:±360°,Pitch:±65°or greater,Yaw:±60°

Horizontal 41°× Vertical 31°
Print Contrast Signal ≥25%
Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, GS1 Composite, Febraban, etc.

2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Chinese ID Card OCR, etc.

Weight ≈270g(without cable)
Dimension L86.7mm * W96.7mm * H143.6mm
Communication Mode USB(USB-KBW,USB-COM),RS232
Cable length 1.8m
Power Supply DC 5V@280mA(work)

CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210

CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210

CMOS Barcode Scanner Module 100CM/S 1D 2D DC5V USB Wire DP8210


RFQ

1. What's the shipping way ?
There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.

2. What's the payment way ?
We accept PayPal ,T /T,LC , Western Union , MoneyGram.

3. How about your product warranty ?
Our officially promised warranty time is 1 years after delivery.

4. How can I get the goods ?
We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.

5. If I come across any problem during product using ,where I can get the support ?
We support you technically 24h.please send all your questions to us. And we will give the professional,patient,expliantion by email or call in time.
